| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

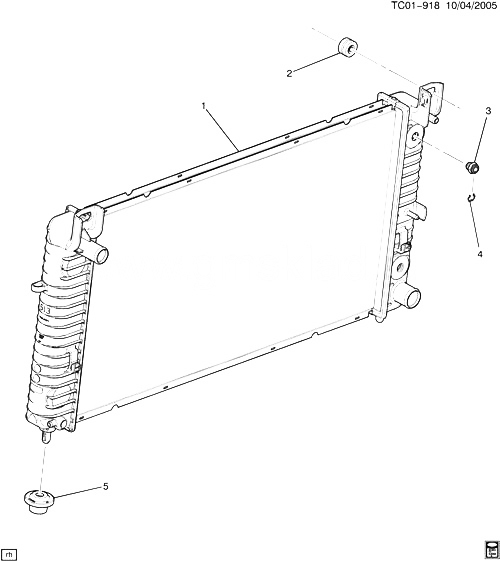

| 001 |
|
RADIATOR, (INCLS 2-5) |
|
2007-2009 |
|
| 001 |
15841569 |
RADIATOR, (CORE SIZE 34IN X 18 1/2IN X 1 5/16IN CODE CCK, ART, ATP) (INCLS 2-5) (W/TRANS OIL CLR) (ACDelco #21648)
| CK1 (LMG, M30, PPV) |
2007-2008 |
01 |
|
| 001 |
15841571 |
RADIATOR, (CORE SIZE 34IN X 18 1/2IN X 1 1/8IN, CODE APC, ASA, ATS) (INCLS 2-5) (ACDelco #21650)
| CK1 (LY2, JJG) |
2007-2008 |
01 |
|
| 001 |
15841571 |
RADIATOR, (CORE SIZE 34IN X 18 1/2IN X 1 1/8IN, CODE APC, ASA, ATS) (INCLS 2-5) (ACDelco #21650)
| CK1 (LY2, M30) (EXC JJG) |
2007-2008 |
01 |
|
| 001 |
25810257 |
RADIATOR, (INCLS 2-5) (ACDelco #21725) |
CK1 (06) (LC9, LMG, LY5, M30, GT5) (EXC PPV) |
2007-2008 |
01 |
| 002 |
|
INSULATOR, RAD UPR (PART OF 1) |
|
2007-2008 |
|
| 003 |
15226661 |
CONNECTOR, TRANS FLUID CLR PIPE (PART OF 1) (INCLS 4) (9/16-18) (3/8 BODY QUICK CONNECT) (AT RAD) (ACDelco #15226661)
| CK1, 2, 3 (MYC, MYD, M30, M70) |
2008-2008 |
02 |
|
| 003 |
19210848 |
CONNECTOR, TRANS FLUID CLR PIPE (PART OF 1) (INCLS 4) (W/O BEVEL WASHER) (ACDelco #19210848) |
CK1, 2, 3 (MYC, MYD, M30, M70, KNP) |
2008-2008 |
02 |
| 004 |
24205103 |
RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 1, 3) (EXPANDING SPRING WIRE) (ACDelco #24205103)
| CK1, 2, 3 |
2007-2009 |
01 |
|
| 005 |
89019121 |
MOUNT, RAD LWR (PART OF 1) |
CK1 |
2007-2009 |
02 |
