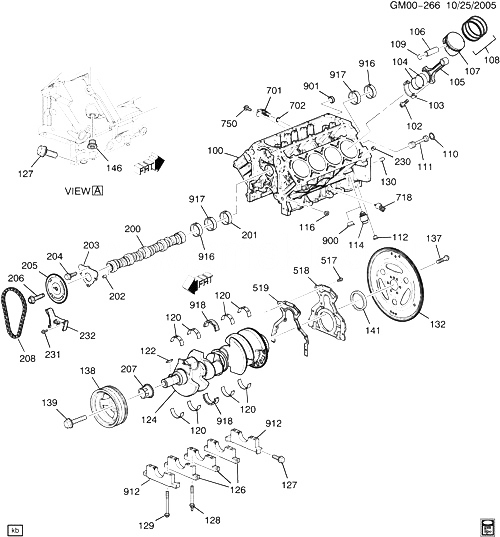

(GM00-266) - 2007-2009 CK1 ДВИГАТЕЛЬ В СБОРЕ-4.8L V8 ЧАСТЬ 1 БЛОК ЦИЛИНДРОВ И СОПРЯЖЕННЫЕ ДЕТАЛИ (LY2/4.8C) CHEVROLET TAHOE (4WD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
100 БЛОК, ДВИГАТЕЛЯ 2007-2009
102 11570662 БОЛТ, CONN ROD (PART OF 105) (MJ9X44, 13 THD, 15.5 OD, 12.9, PL) CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 16
103 CAP, CONN ROD (PART OF 105) 2007-2009
104 12493712 ПОДШИПНИК, ШАТУНА (STD) CK1 (LY2) 2007-2009 08
105 12617571 ШАТУН, (INCLS 102, 103, 106) CK1 (LY2) 2007-2008 08
106 BUSHING, CONN ROD (PART OF 105) 2007-2009
107 89017577 PISTON, (W/PIN) (INCLS 109) (STD) CK1 (LY2) 2007-2009 01
107 89017578 PISTON, (W/PIN) (INCLS 109) (0.5MM O.S.) CK1 (LY2) 2007-2009 01
108 12456338 RING KIT, PSTN (STD) CK1 (LY2) 2007-2009 01
108 12456339 RING KIT, PSTN (.5MM O.S.) CK1 (LY2) 2007-2008 01
109 12569638 RETAINER, PSTN PIN (PART OF 107) CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 16
110 SEAL, ENG BLK OIL GAL PLUG (O RING) (PART OF 111) 2007-2009
111 09427693 PLUG, ENG BLK OIL GAL (SAN) (INCLS 110) CK1 (L76, LY2, L76, LH6) 2007-2009 01
111 12573460 PLUG, ENG BLK OIL GAL (INCLS 110) (15.68MM DIA) (INCLS O-RING SEAL (N.S.S.) CK1 (LY2) 2007-2009 01
112 11588949 PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK OIL GAL) 2007-2009 01
114 12586687 HEATER, ENG COOL (W/2-PIN AND SILVER COLORED) CK1, 2, 3 (LC9, LMG, LY2, LU3, K05) 2007-2009 01
116 11588949 PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK COOL DRN HOLE) 2007-2009 01
120 89017571 BEARING KIT, CR/SHF (#1, 2, 4, 5) (STD) CK1 (LY5, L76, LY2) 2007-2009 04
122 12561513 KEY, CR/SHF BALR (4.8MMX37.5MM) CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 01
124 12588615 КОЛЕНЧАТЫЙ ВАЛ, CK1 (LY2) 2007-2009 01
126 CAP, CR/SHF BRG 2007-2009
127 12556127 БОЛТ, CR/SHF BRG CAP (SIDE) (SHORT) (M8X1.25X24) CK1, 2, 3 2007-2009 10
128 12560273 STUD, CR/SHF BRG CAP (HFH, M10X2X23, M8X1.25X11, 113.5 TOTAL LONG) CK1 (LY2, LY5, L76) 2007-2009 10
129 12560272 БОЛТ, CR/SHF BRG CAP (BOTTOM) (LONG) (M10X2X102.5, 24.5) CK1, 2, 3 2007-2009 10
130 01453658 PIN, DOWEL STRAIGHT 5/8 DIA 1 3/16 LG (TRANS LOC) 2007-2009 02
137 БОЛТ, FLYWHL 2007-2008
137 11569956 БОЛТ, FLYWHL (M11X1.5X23.5 W/SEALER) CK1 (LY2) 2007-2008 06
138 12576652 BALANCER, CR/SHF CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 01
139 12557840 БОЛТ, CR/SHF BALR (M16X2.0X103) CK1 (LY2) 2007-2009 01
141 89060436 SEAL KIT, CR/SHF RR OIL (REVERSE LIP SEAL, INCL INSTRUCTION SHEET) CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 01
146 11588949 PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK COOL DRN HOLE) 2007-2009 01
200 12593205 CAMSHAFT, ENG (INCLS 202) CK1 (LY2) 2007-2009 01
201 19167218 BEARING, CM/SHF (POSN #3) CK1 (LY2) 2008-2009 01
202 24575061 PIN, CM/SHF SPKT LOC (PART OF 200) (17MM LONG) CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 01
203 12589016 RETAINER, CM/SHF (USE WITH BOLT 11561455) CK1 (LY2) 2007-2009 01
204 11515756 БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (CM/SHF RET) 2007-2009 04
205 SPROCKET, CM/SHF 2007-2009
205 12591689 SPROCKET, CM/SHF (W/1 ATCH BOLT) CK1 (LY2, LC9, LH6, LMG, LY5) 2007-2009 01
206 11561283 БОЛТ, HVY HX FLG HD, M16X1.5X63, GMW25 (8.8) STL, GMW3359 (CM/SHF SPKT) 2007-2009 01
207 12556582 SPROCKET, CR/SHF CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 01
208 12586482 CHAIN, CM/SHF TMG CK1 (LY2, LY5, L76, LH6) 2007-2009 01
230 12570326 PIN, CYL HD LOC CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 04
231 11515758 БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (PART OF 232) 2007-2009 02
232 12626407 TENSIONER KIT, TMG CHAIN (INCLS BOLT, RETAINER) (INCLS 231) CK1 (LY2) 2007-2008 01
517 11588723 БОЛТ, CR/SHF RR OIL SEAL HSG (8 X 1.25 X 25) (8.900) CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 12
518 12615666 HOUSING, CR/SHF RR OIL SEAL (INCLS BOLT, SEAL, GASKET, HOUSING) CK1 (L92, LY2, LY5, L76, LH6) 2007-2008 01
519 12593587 ПРОКЛАДКА, CR/SHF RR OIL SEAL HSG CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 01
701 12585546 ДАТЧИК, CR/SHF POSN (INCLS 702) (ACDelco #213-3520) CK1 (LY2, LY5, L76, LH6) 2007-2009 01
702 SEAL, CR/SHF POSN SEN (O RING) (PART OF 701) 2007-2009
718 12570125 ДАТЧИК, ДЕТОНАЦИИ (ACDelco #213-1576) CK1 (LY2, LY5, LH6, L76) 2007-2009 02
750 11515756 БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (BOLT, CR/SHF POSN SEN) 2007-2009 01
900 11609289 PLUG, HEX, M28X1.25X13, 10.9, GMW3044, INT DRIVER W/THD SEAL 9985 (ENG BLK COOL DRN HOLE) (8.971) 2007-2009 01
901 09427693 PLUG, CUP 5/8, CORROSION RESISTANT STL (ENG BLK OIL GAL) (1.531) 2007-2009 01
912 CAP, CR/SHF BRG 2007-2009
916 19167383 BEARING, CM/SHF (POSN #1, 5) CK1 (LY2) 2008-2009 02
917 19167382 BEARING, CM/SHF (# 24) CK1 (LY2) 2008-2009 02
918 89017572 BEARING KIT, CR/SHF THR (STD) (#3) CK1 (LY2, LY5, L76) 2007-2009 01
