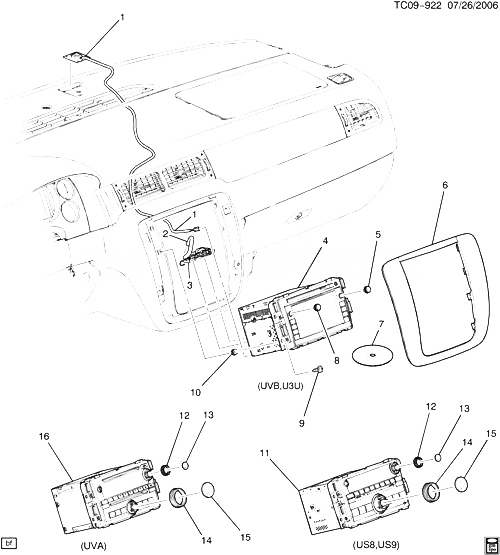

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15201798 |
АНТЕННА, ELEK NAVIGATION (*GPS АНТЕННА*) (ACDelco #15201798) |
CK1, 2, 3 (UVB, U3U) |
2007-2009 |
01 |
| 002 |
|
HARNESS, I/P WRG (INCLS 3) (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2009 |
|
| 003 |
19115816 |
CABLE, M/TEL NAVN ANT COAX (PART OF 2) (IN I/P WRG EXTN) (ACDelco #19115816) |
CK1, 2 (06-36) (UE1) (EXC U2K, Y91) |
2007-2007 |
01 |
| 003 |
19115816 |
CABLE, M/TEL NAVN ANT COAX (PART OF 2) (IN I/P WRG EXTN) (ACDelco #19115816) |
CK1, 2 (06-36) (UE1, WV9) (EXC D07) |
2007-2007 |
01 |
| 004 |
15940103 |
RADIO, AM/FM STEREO AUDIO DISC PLYR NAVN (INCLS 5, 8) (ACDelco #15940103) |
CK1, 2, 3 (U3U) |
2007-2007 |
01 |
| 004 |
20807046 |
RADIO, AM/FM STEREO AUDIO DISC PLYR NAVN (INCLS 5, 8) (ACDelco #20807046) |
CK1, 2 (UL8, UVB) (EXPORT) |
2007-2007 |
01 |
| 004 |
25846421 |
RADIO, AM/FM STEREO AUDIO DISC PLYR NAVN (INCLS 5, 8) (ACDelco #25846421) |
CK1, 2, 3 (UVB) |
2007-2007 |
01 |
| 005 |
19116343 |
KNOB, RDO TUNING CONT (PART OF 4) |
CK1, 2, 3 (UVB) (EXC UL8) |
2007-2007 |
01 |
| 005 |
19116343 |
KNOB, RDO TUNING CONT (PART OF 4) |
CK1, 2, 3 (U3U) |
2007-2008 |
01 |
| 005 |
19116343 |
KNOB, RDO TUNING CONT (PART OF 4) |
CK1, 2 (UL8, UVB) (EXC HP2) (EXPORT) |
2007-2009 |
01 |
| 006 |
15211885 |
PLATE, I/P ACSRY CTR TR (MECH BRUSH) |
CK1, 2 (06-36) (X88, 19I, 22I, 31I, 83I, 84I) (EXC Y91) |
2007-2007 |
01 |
| 006 |
15211886 |
PLATE, I/P ACSRY CTR TR (BURLWOOD)
| CK1, 2, 3 (SLT, X88, 19I, 22I, 31I, 83I, 84I) |
2007-2008 |
01 |
|
| 007 |
|
DISC, NAVN DATA (FOR SERVICE SEE GM PARTS PROCESS/POLICY BULLETIN FOR LATEST SERVICE INFORMATION) |
|
2007-2009 |
|
| 008 |
19116343 |
KNOB, RDO VOL CONT (PART OF 4) |
CK1, 2, 3 (UVB) (EXC UL8) |
2007-2007 |
01 |
| 008 |
19116343 |
KNOB, RDO VOL CONT (PART OF 4) |
CK1, 2, 3 (U3U) |
2007-2008 |
01 |
| 008 |
19116343 |
KNOB, RDO VOL CONT (PART OF 4) |
CK1, 2 (UL8, UVB) (EXC HP2) (EXPORT) |
2007-2009 |
01 |
| 009 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO) (9.665)
|
2007-2009 |
04 |
|
| 010 |
11610157 |
ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (I/P UPR T/PNL) (10.701)
|
2007-2009 |
AR |
|
| 011 |
15868808 |
RADIO, AM/FM STEREO CLK CD PLYR (INCLS 12-15) (ACDelco #15868808) |
CK1, 2, 3 (US8) |
2007-2007 |
01 |
| 011 |
15868809 |
RADIO, AM/FM STEREO CLK CD PLYR (INCLS 12-15) (ACDelco #15868809) |
CK1, 2, 3 (US9) |
2007-2007 |
01 |
| 011 |
25941920 |
RADIO, AM/FM STEREO CLK CD PLYR (INCLS 12-15) (LABELED 25941920, 25799568 OR 25864960) (ACDelco #25941920) (USED ON VEHICLES BUILT 9/17/07 AND AFTER.)
| CK1, 2, 3 (US9) |
2007-2007 |
01 |
|
| 012 |
19115968 |
KNOB, RDO TUNING CONT (PART OF 11, 16) |
CK1, 2, 3 (U1C, UM7, US8, US9) |
2007-2008 |
01 |
| 012 |
19116521 |
KNOB, RDO TUNING CONT (PART OF 11, 16) |
CK1, 2, 3 (UVA) |
2007-2008 |
01 |
| 013 |
19115969 |
PUSHBUTTON, RDO TUNE (PART OF 11, 16) |
CK1, 2, 3 (U1C, UM7, US8, US9) |
2007-2008 |
01 |
| 013 |
19116522 |
PUSHBUTTON, RDO TUNE (PART OF 11, 16) |
CK1, 2, 3 (UVA) |
2007-2008 |
01 |
| 014 |
19115967 |
KNOB, RDO VOL CONT (PART OF 11, 16) |
CK1, 2, 3 (U1C, UM7, US8, US9) |
2007-2008 |
01 |
| 015 |
19115970 |
PUSHBUTTON, RDO PWR (PART OF 11, 16) (9.652) |
CK1, 2, 3 (U1C, UM7, US8, US9) |
2007-2009 |
01 |
| 015 |
19115970 |
PUSHBUTTON, RDO PWR (PART OF 11, 16) |
CK1, 2, 3 (U1C, UM7, US8, US9) |
2007-2008 |
01 |
| 016 |
25840249 |
RADIO, AM/FM STEREO CLK CD PLYR (INCLS 12-15) (ACDelco #25840249) |
CK1, 2, 3 (UVA) |
2007-2008 |
01 |
