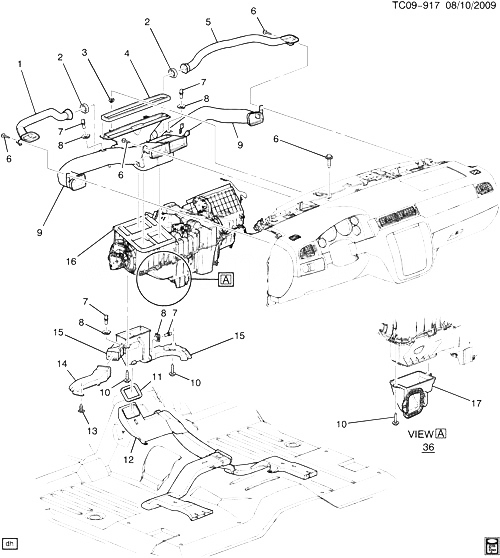

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 002 |
|
SEAL, SI WDO DEFG OTLT DUCT (PART OF 9) |
|
2007-2009 |
|
| 003 |
11610157 |
ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (AIR DISTR DUCT) (10.701)
|
2007-2009 |
02 |
|
| 004 |
|
SEAL, W/S DEFR NOZ AIR DISTR (PART OF 9) |
|
2007-2009 |
|
| 006 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO FRT SPKR) (9.665)
|
2007-2009 |
08 |
|
| 007 |
12160947 |
ДАТЧИК, DUCT AIR TEMP (37.54MM) (ACDelco #15-5632)
| CK1, 2, 3 |
2007-2008 |
02 |
|
| 008 |
15152429 |
RETAINER, AMB AIR TEMP SEN (PUSH IN) (PART OF 9, 15) (HOLE LINER TYPE) |
CK1, 2, 3 |
2007-2009 |
02 |
| 009 |
25821021 |
DUCT, AIR DISTR (INCLS 2, 4, 8) |
CK1, 2 (06-36) (CJ2, X88, Z88) |
2007-2008 |
01 |
| 010 |
11609370 |
BOLT-HWH, M4.2X1.41X20, HI - LOW THD, , OD 12, 6010 STL, GMW4205, TAP (FLR AIR OTLT DUCT) (9.667) |
|
2007-2009 |
04 |
| 011 |
|
SEAL, FLR RR AIR DISTR (PART OF 15) |
|
2007-2009 |
|
| 012 |
15274329 |
DUCT, FLR RR AIR OTLT |
CK1, 2 (06-36) (EXC M1F) |
2007-2009 |
01 |
| 013 |
15958694 |
RETAINER, FLR FRT AIR OTLT DUCT (PUSH IN) (PART OF 14) (BLACK) (7.6DIA X 22.9 MM) (X-MAS TREE) (FOR HOLE 6.30-6.55 DIA) (16.850) |
CK1, 2, 3 |
2007-2009 |
01 |
| 014 |
15256414 |
DUCT, FLR FRT AIR OTLT (INCLS 13) |
CK1, 2, 3 |
2007-2009 |
01 |
| 015 |
15762756 |
DUCT, FLR AIR OTLT (INCLS 8, 11) |
CK1, 2 (06) (CJ2) (EXC M1F) |
2007-2009 |
01 |
| 016 |
|
MODULE, HTR A/C EVPR BLO (СМ. ГРУППУ 09.000 КОНДИЦИОНЕР И МОДУЛЬ ПОДОГРЕВАТЕЛЯ В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2009 |
|
