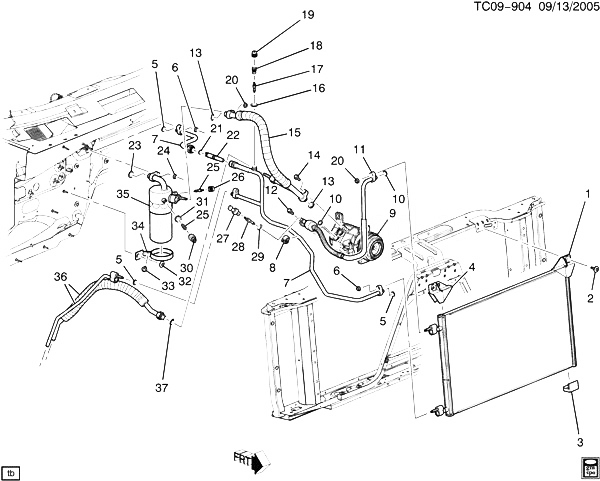

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25967385 |
CONDENSER, A/C (INCLS 4) (ACDelco #15-63666)
| CK1 (06) (LC9, LMG, LY2, LY5, L76, L92, CJ2, CJ3, C69) |
2007-2007 |
01 |
|
| 002 |
11589039 |
БОЛТ, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (A/C CNDSR BRKT)
|
2007-2009 |
02 |
|
| 003 |
15044225 |
INSULATOR, A/C CNDSR (LOWER) (ACDelco #15-63283)
| CK1, 2, 3 |
2007-2009 |
02 |
|
| 004 |
52481715 |
BRACKET, A/C CNDSR UPR (INLET/OUTLET) (PART OF 1) (114.5MM LONG) |
CK1 (06) (LC9, LMG, LY2, LY5, L76, L92, CJ2, CJ3, C69) |
2007-2008 |
01 |
| 004 |
52481716 |
BRACKET, A/C CNDSR UPR (RETURN) (PART OF 1) (114.5MM LONG) |
CK1, 2, 3 |
2007-2009 |
01 |
| 005 |
52474373 |
SEAL, A/C CMPR CNDSR HOSE (19MM OD X 11MM ID) (PART OF 7) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (ACDelco #15-31055)
| CK1, 2, 3 (LC9, LH6, LMG, LU3, LY5, LY6, L76, L92, CJ2, CJ3, C69) |
2007-2008 |
02 |
|
| 006 |
12477570 |
NUT-HFH, M8X1.25X8, 10.9 (A/C EVPR TUBE) |
|
2007-2009 |
02 |
| 007 |
25896467 |
TUBE, A/C EVPR (INCLS 5, 8, 16-19, 21, 22) (ACDelco #15-33413)
| CK1 (06) (LC9, LMG, LY2, LY5, L76, L92, CJ2, CJ3, C69) |
2007-2008 |
01 |
|
| 008 |
15734255 |
CLIP, A/C EVPR TUBE (PART OF 7) |
CK1, 2, 3 |
2007-2009 |
01 |
| 009 |
|
COMPRESSOR, A/C (СМ. ГРУППУ 09.000 AC/ COMPRESSOR MOUNTING FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2009 |
|
| 010 |
52474373 |
SEAL, A/C REFRIG PRESS SEN O RING (19MM OD X 11MM ID) (PART OF 11) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (ACDelco #15-31055)
| CK1, 2 (06-36) (LC9, LMG, LY2, LY5, LY6, L92, L76, CJ2, CJ3) |
2007-2008 |
02 |
|
| 011 |
25975794 |
HOSE, A/C CNDSR (INCLS 10, 27-29) (ACDelco #15-33411)
| CK1 (06) (LC9, LMG, LY2, LY5, L76, L92, CJ2, CJ3, C69) |
2007-2008 |
01 |
|
| 012 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (A/C CNDSR HOSE) (ACDelco #11570082)
|
2007-2009 |
01 |
|
| 013 |
02724966 |
SEAL, A/C ACCUM FRT HOSE (PART OF 15) (FOR NON-CANADIAN ORDERS) (ACDelco #15-31101) |
CK1, 2, 3 (LC9, LH6, LMG, LY2, LY5, LY6, L76, L92, CJ2, CJ3, C69) |
2007-2008 |
02 |
| 014 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (A/C ACCUM HOSE) (ACDelco #11570082)
|
2007-2009 |
01 |
|
| 015 |
15200864 |
HOSE, A/C ACCUM (INCLS 13) (ACDelco #15-33409) |
CK1, 2 (06) (LC9, LMG, LY2, LY5, LY6, L76, L92, CJ2, CJ3, C69) |
2007-2008 |
01 |
| 016 |
52458183 |
SEAL, A/C REFRIG SERV VLV (O RING) (9.25MM ID) (PART OF 7) (BLACK) (RUBBER) (ACDelco #15-30572) |
CK1, 2, 3 |
2007-2009 |
01 |
| 017 |
03041827 |
CORE, A/C REFRIG SERV VLV (INCLS SPRING, W/O O-RING, 13/64-36 THD) (PART OF 7, 18) (ACDelco #15-1119)
| CK1, 2, 3 |
2007-2009 |
AR |
|
| 018 |
52458184 |
VALVE, A/C REFRIG SERV (INCLS O-RINGS, CORE, FEMALE FITTING SEAL, M12X1.5 THD) (PART OF 7) (INCLS 17) (ACDelco #15-5438)
| CK1, 2, 3 |
2007-2009 |
01 |
|
| 019 |
52458768 |
CAP, A/C REFRIG CHRG VLV (HIGH SIDE CHARGE PORT, ACCUMULATOR EVAP TUBE) (PART OF 7) (16.6MM I.S. DIA) (WITH SEAL) (ACDelco #15-33289)
| CK1, 2, 3 |
2007-2009 |
01 |
|
| 020 |
12477570 |
NUT-HFH, M8X1.25X8, 10.9 (A/C CMPR CNDSR HOSE) |
|
2007-2009 |
02 |
| 021 |
03094214 |
O-RING, ID .426X.070 THK, MATERIAL-NEOPRENE (PART OF 7) (ACDelco #15-3614) |
|
2007-2009 |
01 |
| 022 |
15784601 |
ORIFICE, A/C CNDSR (PART OF 7) (ACDelco #15-33410)
| CK1, 2, 3 (L92, LU3) |
2007-2008 |
01 |
|
| 022 |
15784601 |
ORIFICE, A/C CNDSR (PART OF 7) (ACDelco #15-33410)
| CK1, 2, 3 (LC9, LH6, LMG, LY2, LY5, LY6, L76) |
2007-2009 |
01 |
|
| 023 |
02724966 |
SEAL, A/C ACCUM FRT TUBE (25MM OD X 17MM ID, 3/4IN DIA) (FOR NON-CANADIAN ORDERS) (9.222) (ACDelco #15-31101) |
CK1, 2, 3 |
2007-2009 |
01 |
| 024 |
12477570 |
NUT-HFH, M8X1.25X8, 10.9 (A/C ACCUM RET) |
|
2007-2009 |
01 |
| 025 |
03041827 |
CORE, A/C REFRIG SERV VLV (INCLS SPRING, W/O O-RING, 13/64-36 THD) (PART OF 35) (ACDelco #15-1119)
| CK1, 2, 3 |
2007-2009 |
AR |
|
| 026 |
52458768 |
CAP, A/C REFRIG CHRG VLV (HIGH SIDE CHARGE PORT, ACCUMULATOR EVAP TUBE) (PART OF 35) (16.6MM I.S. DIA) (WITH SEAL) (ACDelco #15-33289)
| CK1, 2, 3 |
2007-2009 |
01 |
|
| 027 |
13502758 |
ДАТЧИК, A/C REFRIG PRESS (PART OF 11) (ACDelco #15-51257) |
CK1, 2, 3 |
2007-2009 |
01 |
| 027 |
13502759 |
ДАТЧИК, A/C REFRIG PRESS (PART OF 11) (ACDelco #15-51258) |
CK1, 2, 3 |
2007-2009 |
01 |
| 028 |
03041827 |
CORE, A/C REFRIG SERV VLV (INCLS SPRING, W/O O-RING, 13/64-36 THD) (PART OF 11) (INCLS 29) (ACDelco #15-1119)
| CK1, 2, 3 |
2007-2009 |
AR |
|
| 029 |
03041827 |
SEAL, A/C REFRIG PRESS SEN O RING (INCLS SPRING, W/O O-RING, 13/64-36 THD) (PART OF 11, 28) (9.177) (ACDelco #15-1119)
| CK1, 2, 3 |
2007-2009 |
01 |
|
| 029 |
52474373 |
SEAL, A/C REFRIG PRESS SEN O RING (PART OF 11, 28) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (ACDelco #15-31055)
| CK1, 2 (06-36) (LC9, LMG, LY2, LY5, LY6, L92, L76, CJ2, CJ3) |
2007-2008 |
02 |
|
| 030 |
15144494 |
SWITCH, A/C CYCLING (ACDelco #15-50618)
| CK1, 2, 3 |
2007-2009 |
01 |
|
| 030 |
15144494 |
SWITCH, A/C CYCLING (9.172) (ACDelco #15-50618)
| CK1, 2, 3 |
2007-2009 |
01 |
|
| 031 |
03093509 |
O-RING, 7.65MM ID, 1.78 MM THK, NEOPRENE (A/C REFRIG PRESS SEN O RING) (ACDelco #3093509)
|
2007-2009 |
01 |
|
| 032 |
11588331 |
ГАЙКА, HEX HD W/CON WA, M6X1, 5.7THK, 25 O.D., 9, GM6138M (A/C ACCUM BRKT) |
|
2007-2009 |
01 |
| 033 |
11514623 |
БОЛТ, HEX W/CON WA, M6X1X20 (A/C ACCUM BRKT)
|
2007-2009 |
01 |
|
| 034 |
15194317 |
BRACKET, A/C ACCUM |
CK1, 2, 3 (LC9, LH6, LMG, LU3, LY2, LY5, L76, L92, CJ2, CJ3, C67) |
2007-2007 |
01 |
| 035 |
15827281 |
ACCUMULATOR, A/C (INCLS 25, 26) (W/SWITCH) (ACDelco #15-10640) |
CK1, 2 (06) (LC9, LMG, LY2, LY5, LY6, L76, L92, CJ2, CJ3, C69) |
2007-2008 |
01 |
| 036 |
|
HOSE, AUX A/C EVPR AUX HTR (СМ. ГРУППУ 09.000 СИСТЕМА ОХЛАЖДЕНИЯ КОНДИЦИОНЕРА-REAR FOR DETAILED ILLUSTRATED VIEW) (INCLS 37) |
|
2007-2009 |
|
| 037 |
02724966 |
SEAL, A/C CMPR CNDSR HOSE (PART OF 36) (FOR NON-CANADIAN ORDERS) (ACDelco #15-31101) |
CK107, 109, 2 (06) (CJ2, CJ3, C36, C69) |
2007-2009 |
02 |
