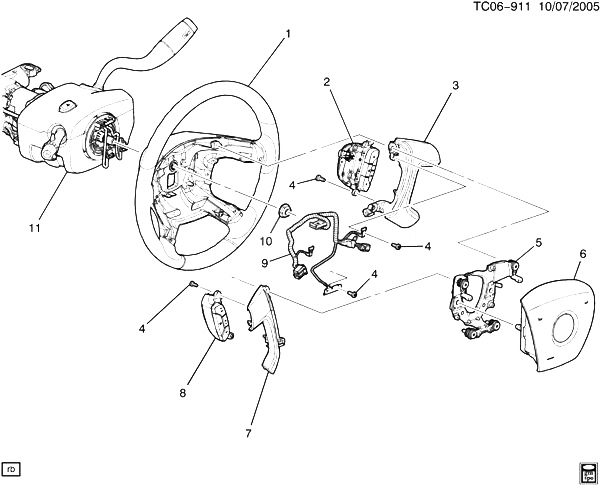

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15917931 |
WHEEL, STRG (INCLS 2-5, 7-9) (EBONY) |
CK1, 2 (06-36) (K34, NP5, UK3, X88, 19I, 31I) (EXC BPH) |
2007-2007 |
01 |
| 001 |
15917932 |
WHEEL, STRG (INCLS 2-5, 7-9) (TITANIUM) |
CK1, 2 (06-36) (K34, NP5, UK3, X88, 83I) (EXC BPH) |
2007-2007 |
01 |
| 001 |
15917937 |
WHEEL, STRG (INCLS 2-5, 7-9) (EBONY) |
CK1, 2 (06-36) (BPH, K34, NP5, UK3, X88, 19I, 22I, 84I) |
2007-2007 |
01 |
| 002 |
15824117 |
SWITCH, RDO CONT (PART OF 1) (TITANIUM) (9.649) |
CK1, 2 (06-36) (K34, NP5, UK3, X88, Z88, 83I) |
2007-2008 |
01 |
| 002 |
15824117 |
SWITCH, RDO CONT (PART OF 1) (TITANIUM) |
CK1, 2 (06-36) (K34, NP5, UK3, X88, Z88, 83I) |
2007-2008 |
01 |
| 003 |
15255057 |
COVER, STRG WHL LWR (PART OF 1) (MECH BRUSH) |
CK1, 2, 3 |
2007-2007 |
01 |
| 003 |
15255097 |
COVER, STRG WHL LWR (PART OF 1) (EBONY)
| CK1, 2, 3 |
2007-2009 |
01 |
|
| 003 |
15255102 |
COVER, STRG WHL LWR (PART OF 1) (TRINITY) |
CK1 |
2007-2009 |
01 |
| 003 |
15844710 |
COVER, STRG WHL LWR (PART OF 1) (SILVER) |
CK1, 2, 3 |
2007-2009 |
01 |
| 004 |
15257875 |
БОЛТ, STRG WHL LWR CVR (PART OF 1) (M3.63-1.34X10MM) (SPECIAL TORX PLUS (15 IP) PAN HEAD) |
CK1, 2, 3 |
2007-2009 |
04 |
| 005 |
15255031 |
CONTACT, STRG WHL СИГНАЛ (PART OF 1) |
CK1, 2, 3 |
2007-2009 |
01 |
| 006 |
25847290 |
MODULE, STRG WHL INFL RST (EBONY) (W/EMBLEM) (DUAL LEVEL) (16.712) |
CK1, 2 (06-36) (X88, 19I, 22I, 31I, 84I) |
2007-2008 |
01 |
| 006 |
25847291 |
MODULE, STRG WHL INFL RST (TITANIUM) (DUAL LEVEL) (16.712) |
CK1 (X88, 83I) |
2007-2009 |
01 |
| 007 |
15255034 |
COVER, STRG WHL LWR (PART OF 1) (EBONY)
| CK1, 2, 3 |
2007-2009 |
01 |
|
| 007 |
15255055 |
COVER, STRG WHL LWR (PART OF 1) (MECH BRUSH) |
CK1, 2, 3 |
2007-2007 |
01 |
| 007 |
15844709 |
COVER, STRG WHL LWR (PART OF 1) (SILVER) |
CK1, 2, 3 |
2007-2009 |
01 |
| 008 |
15819309 |
SWITCH, CRCONT (PART OF 1) (ACDelco #D1957E) |
CK1 (06-36) (K34, NP5, 19I, 22I, 31I) (EXC HP2) |
2007-2008 |
01 |
| 008 |
15824107 |
SWITCH, CRCONT (PART OF 1) |
CK1, 2 (06-36) (K34, NP5, 83I, Z88, X88) (EXC BPH, HP2) |
2007-2009 |
01 |
| 009 |
|
HARNESS, STRG WHL PAD ACSRY WRG (PART OF 1) |
|
2007-2007 |
|
| 010 |
11609658 |
ГАЙКА, STRG WHL (M14X1.5, 10THK) (NON FLANGED) (6.518)
| CK1, 2, 3 |
2007-2009 |
01 |
|
| 010 |
11609659 |
ГАЙКА, STRG WHL (M14X1.5, 10THK, 27OD) (FLANGED) (8.917)
| CK1, 2, 3 |
2007-2008 |
01 |
|
| 011 |
|
COLUMN, STRG (СМ. ГРУППУ 06.000 РУЛЕВАЯ КОЛОНКА FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2009 |
|
