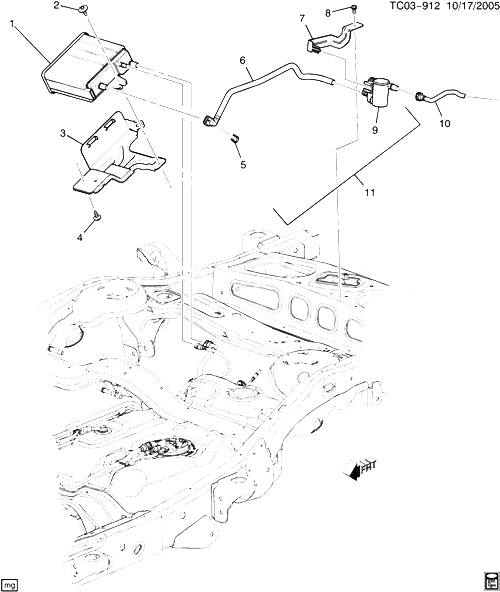

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15109431 |
CANISTER, EVAP EMIS (ACDelco #215-464)
| CK107 (06) |
2007-2007 |
01 |
|
| 002 |
10200334 |
БОЛТ, EVAP EMIS CNSTR BRKT (M8X1.25X30) (W/FLAT WASHER) (12.243)
| CK107, 109 (06-36) |
2007-2007 |
01 |
|
| 003 |
15113366 |
BRACKET, EVAP EMIS CNSTR |
CK107 (06) |
2007-2007 |
01 |
| 004 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (EVAP EMIS CNSTR) (ACDelco #11570082)
|
2007-2007 |
02 |
|
| 005 |
21992746 |
RETAINER, FUEL FEED HOSE CONN (PART OF 11) (5/8 INCH QUICK CONNECT RETAINER CLIP)
| CK107, 109 (06-36) |
2007-2007 |
01 |
|
| 006 |
|
HOSE, EVAP EMIS CNSTR PURGE SOL VLV (PART OF 11) |
|
2007-2007 |
|
| 007 |
|
BRACKET, EVAP EMIS CNSTR PURGE SOL VLV (PART OF 11) |
|
2007-2007 |
|
| 008 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (EVAP EMIS CNSTR VENT SOL VLV BRKT) |
|
2007-2007 |
01 |
| 009 |
25932567 |
SOLENOID, EVAP EMIS CNSTR (PART OF 11) (ACDelco #214-2236)
| CK1 (06-36) |
2007-2007 |
01 |
|
| 010 |
|
HOSE, F/TNK FIL VENT (СМ. ГРУППУ 03.000 ШЛАНГИ И ТРУБКИ ТОПЛИВНОГО БАКА FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2007 |
|
| 011 |
15844699 |
VALVE, EVAP EMIS CNSTR CONT (INCLS 5-7, 9) (INCLUDES EVAP CNSTR HOSE) (ACDelco #15844699) |
CK107 (06) |
2007-2007 |
01 |
