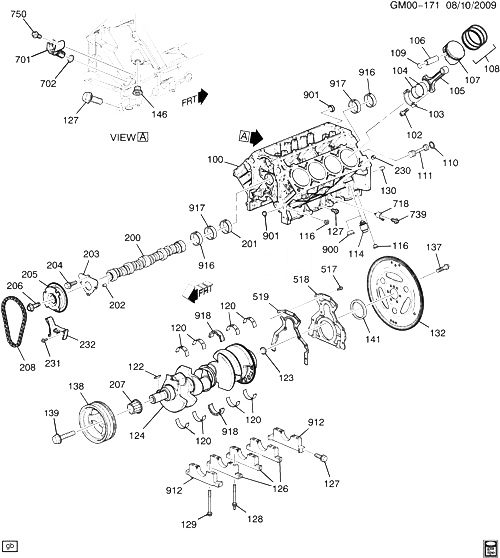

(GM00-171) - 2007-2009 CK1 ДВИГАТЕЛЬ В СБОРЕ-6.0L V8 ЧАСТЬ 1 БЛОК ЦИЛИНДРОВ И СОПРЯЖЕННЫЕ ДЕТАЛИ (L76/6.0Y) CHEVROLET TAHOE (4WD) 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
100 БЛОК, ДВИГАТЕЛЯ 2007-2009
102 11570662 БОЛТ, CONN ROD (PART OF 105) (MJ9X44, 13 THD, 15.5 OD, 12.9, PL) CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 16
103 CAP, CONN ROD (PART OF 105) 2007-2009
104 12493712 ПОДШИПНИК, ШАТУНА (STD) CK1 (L76) 2007-2009 08
105 12607475 ШАТУН, (INCLS 102, 103) CK1 (L76) 2007-2009 08
106 PIN, PSTN (PART OF 107) 2007-2009
107 89017849 PISTON, (W/PIN) (INCLS 106, 109) (STD) CK1 (L76) 2007-2009 08
107 89017850 PISTON, (W/PIN) (INCLS 106, 109) (0.5MM O/S) CK1 (L76) 2007-2009 08
108 89017484 RING KIT, PSTN (STD) (UPPER COMPRESSION RING IS 1.2MM THICK) CK1 (L76) 2007-2008 08
108 89017485 RING KIT, PSTN (.5MM O.S.) (UPPER COMPRESSION RING IS 1.2MM THICK) CK1 (L76) 2007-2008 08
109 12569638 RETAINER, PSTN PIN (PART OF 107) CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 16
110 SEAL, ENG BLK OIL GAL PLUG (O RING) (PART OF 111) 2007-2009
111 09427693 PLUG, CUP 5/8, CORROSION RESISTANT STL (INCLS 110) (1.531) 2007-2009 02
114 12586687 HEATER, ENG COOL CK1, 2, 3 (LY5, LY6, L76, K05) 2007-2009 01
116 11588949 PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK OIL GAL) 2007-2009 03
120 89017571 BEARING KIT, CR/SHF (#1, 2, 4, 5) (STD) CK1 (LY5, L76, LY2) 2007-2009 04
122 12561513 KEY, CR/SHF BALR (4.8MMX37.5MM) CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 01
123 24502262 PLUG-CUP, 1.014 OD, .32 THK, FROM .05 THK 304 STAINLESS. (PART OF 124) (0.293) 2007-2009 01
124 12588612 КОЛЕНЧАТЫЙ ВАЛ, (INCLS 123) CK1 (L76) 2007-2008 01
126 CAP, CR/SHF BRG 2007-2009
127 11588723 БОЛТ, CR/SHF RR OIL SEAL HSG (8 X 1.25 X 25) (8.900) CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 12
128 12560273 STUD, CR/SHF BRG CAP (HFH, M10X2X23, M8X1.25X11, 113.5 TOTAL LONG) CK1 (LY2, LY5, L76) 2007-2009 10
129 12556127 БОЛТ, CR/SHF BRG CAP (SIDE) (SHORT) (M8X1.25X24) CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 10
130 01453658 PIN, DOWEL STRAIGHT 5/8 DIA 1 3/16 LG (TRANS LOC) 2007-2009 02
132 12606620 PLATE, A/TRNS FLEX CK1 (L76) 2007-2009 01
137 11569956 БОЛТ, FLYWHL (M11X1.5X23.5 W/SEALER) CK1 (L76) 2007-2008 06
138 12576652 BALANCER, CR/SHF CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 01
139 12557840 БОЛТ, CR/SHF BALR (M16X2.0X103) CK1 (L76) 2007-2009 01
141 89060436 SEAL KIT, CR/SHF RR OIL (PART OF 518) (REVERSE LIP SEAL, INCL INSTRUCTION SHEET) CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 01
200 12629698 CAMSHAFT, ENG (INCL PIN) (INCLS 202) CK1 (L76) 2007-2008 01
202 24575061 PIN, CM/SHF SPKT LOC (PART OF 200) (17MM LONG) CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 01
203 12589016 RETAINER, CM/SHF (W/PHASERS REQUIRE 12589016 USED T/W BOLT 11561455) CK1 (L76) 2007-2008 01
204 11515756 БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (CM/SHF RET) 2007-2009 04
205 12585994 ACTUATOR, CM/SHF POSN CK1 (L76) 2007-2008 01
206 12588151 VALVE, CM/SHF POSN ACTR SOL CK1 (L76) 2007-2009 01
207 12556582 SPROCKET, CR/SHF CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 01
208 12586482 CHAIN, CM/SHF TMG CK1 (LY2, LY5, L76, LH6) 2007-2009 01
230 12570326 PIN, CYL HD LOC CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 04
231 11588364 БОЛТ, HFH, M8X1.25X34, 25 THD, 18 O.D., 9.8, GMW3359 (PART OF 232) 2007-2009 02
232 12626407 TENSIONER KIT, TMG CHAIN (INCLS BOLT, RETAINER) (INCLS 231) CK1 (L76) 2007-2009 01
517 11588723 БОЛТ, CR/SHF RR OIL SEAL HSG (PART OF 518) (8 X 1.25 X 25) (8.900) CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 12
518 12615666 HOUSING, CR/SHF RR OIL SEAL (INCLS BOLT, SEAL, GASKET, HOUSING) (INCLS 141, 517, 519) CK1 (L92, LY2, LY5, L76, LH6) 2007-2008 01
519 12593587 ПРОКЛАДКА, CR/SHF RR OIL SEAL HSG (PART OF 518) CK1 (L92, LY2, LY5, L76, LH6) 2007-2009 01
701 12585546 ДАТЧИК, CR/SHF POSN (INCLS 702) (ACDelco #213-3520) CK1 (LY2, LY5, L76, LH6) 2007-2009 01
702 SEAL, CR/SHF POSN SEN (O RING) (PART OF 701) 2007-2009
718 12570125 ДАТЧИК, ДЕТОНАЦИИ (INCLS 739) (ACDelco #213-1576) CK1 (LY2, LY5, LH6, L76) 2007-2009 02
739 11519980 БОЛТ, HFH, M8X1.25X40, 22 THD, 18 OD, 8.8, GMW3359, 6MM MATPOINT. (PART OF 718) 2007-2009 02
750 11515756 БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (BOLT, CR/SHF POSN SEN) 2007-2009 01
900 11609289 PLUG, HEX, M28X1.25X13, 10.9, GMW3044, INT DRIVER W/THD SEAL 9985 (ENG BLK COOL DRN HOLE) (8.971) 2007-2009 01
901 09427693 PLUG, CUP 5/8, CORROSION RESISTANT STL (ENG BLK OIL GAL) (1.531) 2007-2009 01
912 CAP, CR/SHF BRG 2007-2009
916 19167383 BEARING, CM/SHF (POSN #1, 5) CK1 (L76) 2007-2007 02
917 19167382 BEARING, CM/SHF (# 2, 4) CK1 (L76) 2007-2007 02
918 89017572 BEARING KIT, CR/SHF THR (STD) (#3) CK1 (LY2, LY5, L76) 2007-2009 01
