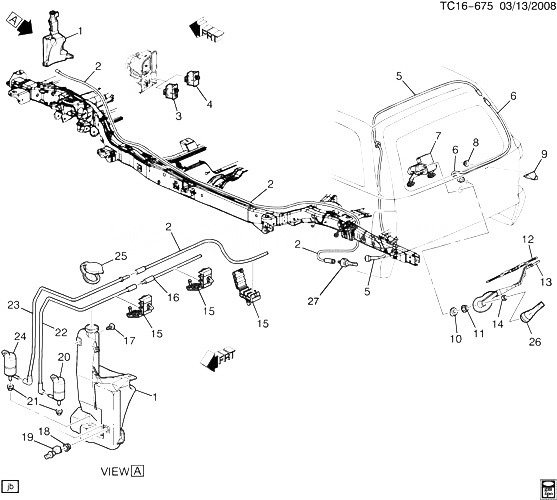

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12487671 |
CONTAINER, WSWA SOLV (ALSO REQ INDICATOR 12494846)
| CK1, 2 (06) (C25) |
2001-2006 |
01 |
|
| 002 |
15104276 |
HOSE, R/WDO WA PUMP (INCLS 27) (W/O CHECK VLV)
| CK157 (06) (C25) |
2000-2006 |
01 |
|
| 003 |
15143158 |
SWITCH, R/WDO WPR WA FRT FOG LP (MTG ON LH SI OF I/P CSTR) (ACDelco #D6378D)
| CK1, 2 (06) (C25, T96) (EXC J81) |
2003-2006 |
01 |
|
| 003 |
15143158 |
SWITCH, R/WDO WPR WA FRT FOG LP (MTG ON LH SI OF I/P CSTR) (ACDelco #D6378D)
| CK1, 2 (06) (C25, T9H) (EXC J81, T96) |
2003-2006 |
01 |
|
| 004 |
15143159 |
SWITCH, R/WDO WPR WA (ACDelco #15143159)
| CK1, 2 (06) (C25) (EXC T9H, T96) |
2003-2006 |
01 |
|
| 004 |
15143159 |
SWITCH, R/WDO WPR WA (ACDelco #15143159)
| CK1, 2 (06) (C25, J81, T96) (EXPORT) |
2003-2006 |
01 |
|
| 005 |
15220035 |
HOSE, R/WDO WA NOZ (W/GROMMET) |
CK1, 2 (06) (C25) |
2000-2006 |
01 |
| 006 |
15324964 |
HOSE, R/WDO WA PUMP (TRANSITIONS FROM BODY TO LIFTGATE) |
CK1, 2 (06) (E52) |
2000-2006 |
01 |
| 006 |
88987941 |
HOSE, R/WDO WA PUMP (FROM UPPER LIFT GATE TO WIPER) (W/CHECK VALVE)
| CK1, 2 (06) (E52) |
2000-2006 |
01 |
|
| 007 |
15173034 |
MOTOR, R/WDO WPR (ACDelco #15173034)
| CK1, 2 (06) (C25) |
2001-2006 |
01 |
|
| 008 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (R/WDO WPR ARM PARK RAMP)
| CK1, 2 (06) (C25) |
2000-2006 |
02 |
|
| 009 |
15092328 |
RAMP, R/WDO WPR ARM PARK |
CK1, 2 (06) (C25) |
2002-2006 |
01 |
| 010 |
15741959 |
SPACER, R/WDO WPR MOT |
CK1, 2 (06) (C25) |
2000-2006 |
01 |
| 011 |
22101215 |
ГАЙКА, R/WDO WPR MOT (BLACK) (13/16-16X9.6, 34 OD PLASTIC) (12.188)
| CK1, 2 (06) (C25) |
2000-2006 |
01 |
|
| 012 |
12494839 |
BLADE, R/WDO WPR
| CK1, 2 (06) (C25) |
2000-2006 |
01 |
|
| 013 |
15711688 |
ARM, R/WDO WPR (INCLS 26) (INCLS NOZZLE HOSE)
| CK1, 2 (06) (C25) |
2000-2006 |
01 |
|
| 014 |
11589150 |
ГАЙКА, HEX, W/ADH, M8X1.25X6.80, 5, GMW3359 (WSW ARM)
|
2000-2006 |
02 |
|
| 015 |
10150076 |
CLIP, КАПОТ PRIM LAT REL CBL (18.8 MM DIA) (ROUND CLIP) (3.425) |
CK1, 2, 3 |
2003-2006 |
03 |
| 016 |
12463086 |
HOSE, WSWA NOZ (INCLS TEE) (INCLS CLIP)
| CK1, 2, 3 |
2001-2006 |
01 |
|
| 017 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (RR S/D WDO RR CHAN)
| CK1, 2 (06) |
2000-2006 |
01 |
|
| 018 |
12494847 |
SEAL, WSWA SOLV LVL SW |
CK1, 2, 3 |
2001-2006 |
01 |
| 019 |
12494846 |
INDICATOR, WSWA SOLV LVL
| CK1, 2, 3 |
2001-2006 |
01 |
|
| 020 |
89025062 |
НАСОС, WSWA W/ SEAL (INCLS 21) (USE T/W CONNECTOR 12102747) (10.153) (ACDelco #89025062) (FRONT)
| CK1, 2, 3 |
2001-2006 |
01 |
|
| 021 |
22039457 |
GROMMET, WSWA SOLV CNTNR (PART OF 20, 24) (18MM) (10.153)
| CK1, 2, 3 |
2001-2006 |
01 |
|
| 022 |
12487672 |
HOSE, WSWA PUMP
| CK1, 2, 3 |
2001-2006 |
01 |
|
| 023 |
12487673 |
HOSE, R/WDO WA PUMP (FROM WSWA PUMP) |
CK1, 2 (06) (C25) |
2001-2006 |
01 |
| 024 |
89025063 |
НАСОС, R/WDO WA (W/SEAL) (INCLS 21) (12.188) (ACDelco #89025063) (REAR) |
CK1, 2 (06) (C25) |
2000-2006 |
01 |
| 025 |
25731418 |
CAP, WSWA SOLV CNTNR (W/ISO SYMBOL) (10.154)
| CK1, 2, 3 |
2001-2006 |
01 |
|
| 026 |
88944340 |
COVER, WSW ARM (PART OF 13)
| CK1, 2 (06) (C25) |
2000-2006 |
01 |
|
