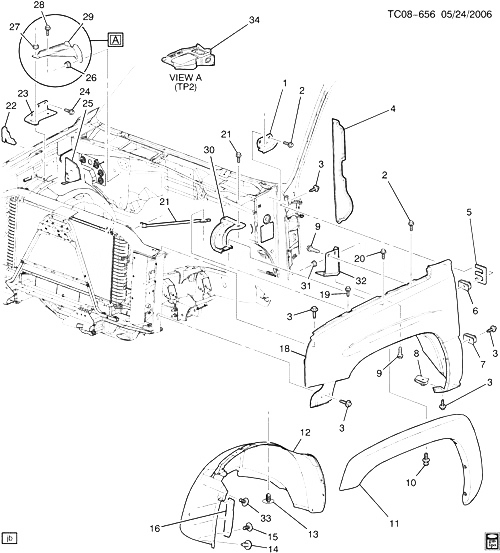

(TC08-656) - 2004-2006 CK1,2(06) КРЫЛО И ПЕРЕДНИЙ ПОДКРЫЛОК (CHEVROLET X88, EXC MEXICO P96) CHEVROLET TAHOE (4WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10359005 BRACKET, F/FDR UPR (COWL SIDE) CK1, 2, 3 2003-2006 01
001 10359006 BRACKET, F/FDR UPR (COWL SIDE) CK1, 2, 3 2003-2006 01
002 11515755 БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (F/FDR UPR BRKT) (T/W 12345493 REPLCS 25534835) 2003-2006 08
003 11610010 БОЛТ, HEX W/ CON WA, M8X1.25X40, 32 THD, 28 OD, 9.8, 7114M, MACH, P-PT (F/FDR INR PNL) 2003-2006 10
004 15165436 INSULATOR, COWL S/PNL (EXTERIOR) (INCLS SEAL) CK1, 2, 3 2003-2006 01
004 15165437 INSULATOR, COWL S/PNL (EXTERIOR) (INCLS SEAL) CK1, 2, 3 2003-2006 01
005 15183241 SHIM, F/FDR (1MM THICK) CK1, 2, 3 2003-2006 AR
006 11516150 ГАЙКА, U, M8X1.25X32.0, 6H STYLE 11, STL, PZOR (F/FDR RR UPR BRKT) 2003-2006 02
007 11516150 ГАЙКА, U, M8X1.25X32.0, 6H STYLE 11, STL, PZOR (F/FDR RR CTR BRKT) 2003-2006 02
008 11516150 ГАЙКА, U, M8X1.25X32.0, 6H STYLE 11, STL, PZOR (F/FDR LWR) 2003-2006 02
009 11515755 БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (F/FDR FRT UPR REINF) (T/W 12345493 REPLCS 25534835) 2003-2006 04
010 15149708 RETAINER, F/FDR FLARE RET (PUSH ON) (PART OF 11) (17.0 X 5.1 X 16.3 MM) (PUSH-IN INCLS PUSH BUTTON LOCK) (17.505) CK1, 2, 3 (03-06-43-53) (B71, B96) (EXC D99) 2006-2006 10
011 10374850 FLARE, F/FDR (INCLS 10) (BLACK) (GRAINED) CK1, 2, 3 (B71) 2003-2006 01
011 10374851 FLARE, F/FDR (INCLS 10) (BLACK) (GRAINED) CK1, 2, 3 (B71) 2003-2006 01
011 15829687 FLARE, F/FDR (INCLS 10) (SMOOTH) (PAINT TO MATCH) CK1, 2, 3 (B71, YE9) 2003-2006 01
011 15829688 FLARE, F/FDR (INCLS 10) (SMOOTH) (PAINT TO MATCH) CK1, 2, 3 (B71, YE9) 2003-2006 01
012 15095669 SHIELD, FRT W/H PNL SPH (INCLS 15, 16) (INCLS SHIELD RETAINERS) CK157 (06) (EXC Y91) 2004-2006 01
012 15132712 SHIELD, FRT W/H PNL SPH (INCLS 15, 16) (INCLS RETAINERS) (INCLS FLAP 2 MTG HOLES FOR FLAP) CK157, 2 (06) (EXC Y91) 2004-2006 01
013 11561878 RIVET, FRT W/H PNL SPH SHLD (FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL) (8.940) CK1, 2, 3 2003-2006 17
014 24501057 RIVET, FRT W/H PNL SPH SHLD (PUSH-IN) (6.9 HOLE DIA) (19MM LG) (1.840) CK1, 2, 3 2003-2006 03
015 14093311 FSTN PUSH-IN NYLON 253 HOLE BLACK (PART OF 12) 2003-2006 04
016 88944069 SHIELD, ENG LWR FRT SPH (PART OF 12) CK157 (06) (EXC Y91) 2004-2006 02
017 15266274 SEAL, F/FDR FIL CK1, 2 (EXC Z75) 2003-2006 01
018 12476220 FENDER, FRT (FENDERS W/12MM PIVOT HOLE IN КАПОТ HINGE USE WASHER 11562553) CK157, 2 (06) (X88) 2004-2006 01
018 19168844 FENDER, FRT (FENDERS W/12MM PIVOT HOLE IN КАПОТ HINGE USE WASHER 11562553) CK157, 2 (06) (X88) 2004-2006 01
019 11610010 БОЛТ, HEX W/ CON WA, M8X1.25X40, 32 THD, 28 OD, 9.8, 7114M, MACH, P-PT (F/FDR INR PNL) 2003-2006 02
020 11515755 БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (F/FDR RR UPR BR) (T/W 12345493 REPLCS 25534835) 2003-2006 08
021 15159505 BRACE, F/END SH MET DIAG CK1, 2, 3 2003-2006 01
022 15266273 SEAL, F/FDR FIL CK1, 2, 3 2004-2006 01
023 15705122 SUPPORT, FRT W/H PNL (USED ON RH SIDE) CK1, 2, 3 2003-2006 01
024 11609540 БОЛТ, HWASH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (FRT W/H PNL SUPT BRKT) 2003-2006 03
025 15266274 SEAL, F/FDR FIL CK1, 2, 3 2004-2006 01
026 11517397 ГАЙКА, HEX W/CON WA, 8X1.25, 28 O.D., 7.5 THK, 9, PEOR (FRT W/H PNL BRKT) 2003-2006 02
027 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (PART OF 29) 2003-2006 01
028 11609540 БОЛТ, HWASH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (FRT W/H PNL SUPT BRKT) 2003-2006 01
029 15205909 BRACKET, FRT W/H PNL (INCLS 27) CK1, 2, 3 (EXC HP2, TP2, TQ3, 8B0, 8Y9) 2004-2006 01
030 15709453 BRACE, F/FDR RR UPR CK1, 2, 3 2003-2006 01
030 15709454 BRACE, F/FDR RR UPR CK1, 2, 3 (LM7, LQ4, LQ9, LR4, LU3, L18, L31, L33, L59) (EXC HP2, TP2, 5X7, 8B0) 2005-2006 01
031 11516780 ГАЙКА, HEX W/CON WA, M8X1.25, 10THK, 19 O.D., 10, 7111M (F/FDR FRT UPR BRKT) (8.917) 2003-2006 01
032 15751708 REINFORCEMENT, F/FDR FRT UPR BRKT CK1, 2 (06-36-43) 2006-2006 01
033 11561878 RETAINER, PUSH PIN W/SEAL, FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL (FRT W/H PNL SPH SHLD) 2003-2006 01
034 15246518 TRAY, BAT CK1, 2, 3 2003-2006 01
034 15891945 TRAY, BAT CK1, 2, 3 2003-2006 01
