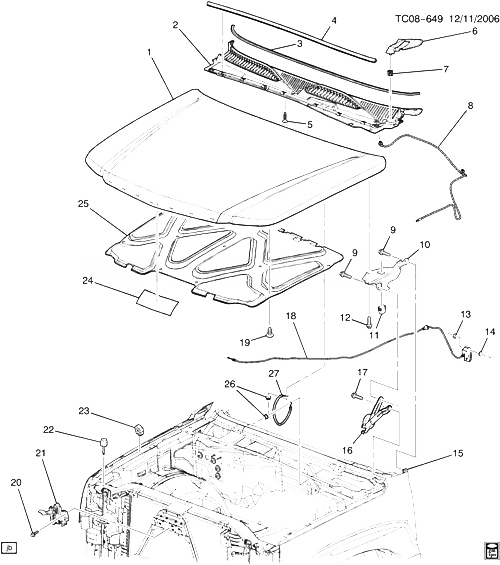

(TC08-649) - 2003-2006 CK1,2(06) КАПОТ (CHEVROLET X88) CHEVROLET TAHOE (4WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12477524 КАПОТ, (INCLS PRIMARY LATCH STKR PLT) (INCLS 24) (W/O HINGES) (USE T/W 12472769 12472770 HINGES) CK1, 2 (06) (X88) 2003-2006 01
002 15829661 PANEL, AIR INL GRL (CENTER) (INCLS 3-5, 8) CK1, 2, 3 2003-2007 01
003 15706253 SEAL, КАПОТ RR CTR (PART OF 2) CK1, 2, 3 2003-2007 01
004 15068269 SEAL, КАПОТ FRT (PART OF 2) CK1, 2, 3 2003-2007 01
006 15287177 PANEL, AIR INL GRL (END CAP) (INCLS 7) (INCLS FLAPPER SEAL) CK1, 2, 3 2003-2007 01
006 15287178 PANEL, AIR INL GRL (END CAP) (INCLS 7) (INCLS FLAPPER SEAL) CK1, 2, 3 (EXC U84) 2003-2007 01
006 15287179 PANEL, AIR INL GRL (END CAP) (INCLS 7) CK1 (U84) 2003-2006 01
007 15965094 CLIP, AIR INL GRL PNL (PART OF 6) (SILVER) (11 X 13) (16.041) CK1, 2, 3 2003-2007 06
008 12463086 HOSE, WSWA NOZ (PART OF 2) (INCLS TEE) (INCLS CLIP) CK1, 2, 3 2003-2007 01
009 15054178 БОЛТ, HFH, W/SHOULDER, M8X1.25X23, 18 O.D., 9.8, GM6280M (КАПОТ HGE) 2003-2007 02
009 15054178 БОЛТ, HFH, W/SHOULDER, M8X1.25X23, 18 O.D., 9.8, GM6280M (КАПОТ OPEN ASST SPR) 2003-2007 02
010 12472769 HINGE, КАПОТ CK1, 2, 3 2003-2007 01
010 12472770 HINGE, КАПОТ CK1, 2, 3 2003-2007 01
011 15033232 BUMPER, КАПОТ RR CK1, 2, 3 2003-2007 AR
012 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (КАПОТ HGE) (ACDelco #11570082) 2003-2007 02
013 11516780 ГАЙКА, HEX W/CON WA, M8X1.25, 10THK, 19 O.D., 10, 7111M (КАПОТ PRIM LAT REL CBL) (8.917) 2003-2007 01
014 11500324 WASHER, M10X 2.5 THK PHOS (КАПОТ PRIM LAT REL CBL BRKT) (ACDelco #11500324) 2003-2007 01
015 11516780 ГАЙКА, HEX W/CON WA, M8X1.25, 10THK, 19 O.D., 10, 7111M (КАПОТ HGE) (8.917) 2003-2007 02
016 15035591 ПРУЖИНА, КАПОТ OPEN ASST CK1, 2, 3 2003-2007 01
016 15035592 ПРУЖИНА, КАПОТ OPEN ASST CK1, 2, 3 2003-2007 01
017 15054178 БОЛТ, HFH, W/SHOULDER, M8X1.25X23, 18 O.D., 9.8, GM6280M (КАПОТ OPEN ASST SPR) 2003-2007 02
018 15142953 CABLE, КАПОТ PRIM LAT REL (W/HANDLE) CK1, 2, 3 2003-2007 01
019 22718305 RETAINER, 25 DIA HEAD, 23 OVERALL LENGTH, FITS 7MM DIA HOLE, NYLON 6/6 (КАПОТ INSL) 2003-2007 09
020 11589039 БОЛТ, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (КАПОТ PRIM LAT) 2003-2007 03
021 15756432 LATCH, КАПОТ PRIM CK157, 2 (06) 2004-2006 01
022 11588868 SCREW, BUTTON HEAD, M6X1X46, 34 THD, 17 O.D., 9.8, GM6173M, BLACK (КАПОТ ADJ FRT) 2003-2007 02
023 15735963 BUMPER, КАПОТ SI CK157, 2 (06) (X88) 2004-2006 02
024 15097890 REINFORCEMENT, КАПОТ (PART OF 1) CK1, 2 (06) (X88) 2003-2006 01
025 15262085 INSULATOR, КАПОТ (DEALER MAY HAVE TO CUT OUT HOLE FOR ДНИЩЕ LAMP) CK157, 2 (06) (LM7, LQ4, LR4, L18, L59, X88, Z88) 2005-2006 01
026 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BODY STATIC GND STRP) 2003-2007 02
027 15179982 STRAP, BODY STATIC GND CK1 2004-2007 01
