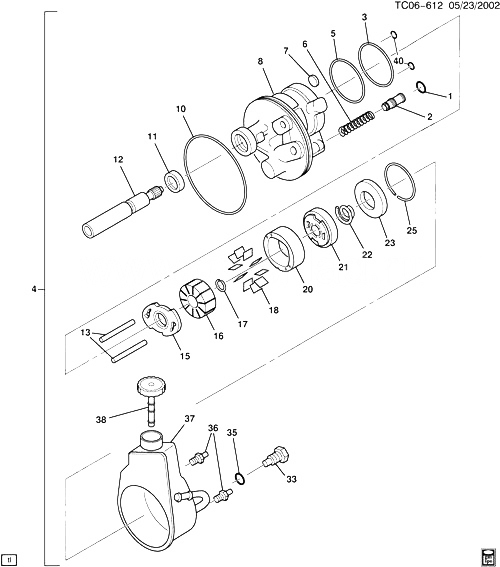

(TC06-612) - 2004-2007 CK РУЛЕВОЙ НАСОС В СБОРЕ (EXC HYBRID HP2) CHEVROLET TAHOE (4WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 SEAL, P/S PUMP FLOW C/VLV (O RING) 2004-2007
002 15246463 VALVE KIT, P/S PUMP FLOW CONT K1 (06) (JH2, N88, P25, P27, P46) (EXC Y91) 2006-2006 01
002 15246463 VALVE KIT, P/S PUMP FLOW CONT K1 (06) (JH2, N93, N94, PD0, QS7, QS8, Y91) 2006-2006 01
002 15246463 VALVE KIT, P/S PUMP FLOW CONT K1 (06) (LTJ, P35) 2006-2006 01
002 26065843 VALVE, P/S PUMP FLOW CONT (VALVE ONLY) K1 (06-36) (JH2) 2004-2006 01
002 88965509 VALVE KIT, P/S PUMP FLOW CONT K1 (06) (EXC Y91, JH2) 2006-2007 01
003 SEAL, P/S PUMP END PLT (O RING) 2004-2007
004 15909831 PUMP, P/S (INCLS 1-3, 5-8, 10-13, 15-18, 20-23, 25, 33, 35-38, 40) (SERVICE PUMP) (INCLS RESVR) K1 (06) (JH2, N88, P25, P27, P46) (EXC Y91) 2006-2006 01
004 15909831 PUMP, P/S (INCLS 1-3, 5-8, 10-13, 15-18, 20-23, 25, 33, 35-38, 40) (SERVICE PUMP) (INCLS RESVR) K1 (06) (JH2, N93, N94, PD0, QS7, QS8, Y91) 2006-2006 01
004 15909831 PUMP, P/S (INCLS 1-3, 5-8, 10-13, 15-18, 20-23, 25, 33, 35-38, 40) (SERVICE PUMP) (INCLS RESVR) K1 (06) (LTJ, P35) 2006-2006 01
004 15909831 PUMP, P/S (SERVICE PUMP) (INCLS RESVR) K1 (06) (BPH) 2004-2006 01
004 15909831 PUMP, P/S (SERVICE PUMP) (INCLS RESVR) K1 (06) (N88) 2006-2006 01
004 15909832 PUMP, P/S (INCLS 1-3, 5-8, 10-13, 15-18, 20-23, 25, 33, 35-38, 40) K1 (06) (JH2) (EXC N88, N93, N94, PD0, PF4, PF9, P25, P27, P35, P46, QS7, QS8) 2006-2006 01
004 15909832 PUMP, P/S (INCLS 1-3, 5-8, 10-13, 15-18, 20-23, 25, 33, 35-38, 40) K1 (06) (JH2, PF4, PF9) (EXC BPH, LTJ, Y91) 2006-2006 01
005 SEAL, P/S PUMP PRESS PLT (O RING) 2004-2007
006 05688037 ПРУЖИНА, P/S PUMP FLOW C/VLV (6.612) K1, 2, 3 2001-2007 01
007 MAGNET, P/S FLUID RSVR (*KIT2) 2004-2007
008 HOUSING, P/S PUMP 2004-2007
010 26094421 SEAL, P/S PUMP RSVR (O RING) (PART OF 37) (14.5MM I.D.) (*KIT2) K1, 2, 3 2001-2006 01
011 15277770 SEAL, P/S PUMP SHF (I.D.22.78MM) (USED W/19MM SHAFT) K1, 2, 3 2001-2007 01
012 SHAFT, P/S PUMP 2004-2007
016 ROTOR, P/S PUMP 2004-2007
017 RING KIT, P/S PUMP SHF RET (*KIT1) 2004-2007
018 VANE, P/S PUMP 2004-2007
020 RING, P/S PUMP 2004-2007
033 26009894 FITTING, P/S PUMP (6.673) K1 (06) (JH2) (EXC N88, N93, N94, PF4, PF9, P25, P27, QS7, QS8) 2006-2006 01
033 26009894 FITTING, P/S PUMP (6.673) K1 (06) (JH2, PF4, PF9) (EXC BPH, Y91) 2006-2006 01
033 26025709 FITTING, P/S PUMP K1 (06) (BPH) 2004-2006 01
033 26025709 FITTING, P/S PUMP K1 (06) (JH2) (EXC BPH) 2004-2006 01
033 26025709 FITTING, P/S PUMP K1 (06) (JH2, N93, N94, QS7, QS8, Y91) (EXC BPH) 2006-2006 01
033 26025709 FITTING, P/S PUMP K1 (06) (JH2, P25, P27) (EXC BPH, Y91) 2006-2006 01
035 SEAL, P/S PUMP FTG (O RING) (*KIT2) 2004-2007
036 07833293 STUD, P/S PUMP (M10X1.5X35MM) K1, 2, 3 2001-2007 01
036 26009574 STUD, P/S PUMP (M10X1.5X16) (SHORT) K1, 2, 3 2001-2007 01
037 26101115 RESERVOIR KIT, P/S FLUID (INCLS 10) K1 (06) (JH2) (EXC N88, N93, N94, PF9, P25, P27, P35, P46, QS7, QS8) 2006-2006 01
037 26101115 RESERVOIR KIT, P/S FLUID (INCLS 10) K1 (06) (JH2, N88, P25, P27, P46) (EXC Y91) 2006-2006 01
037 26101115 RESERVOIR KIT, P/S FLUID (INCLS 10) K1 (06) (JH2, N93, N94, PD0, QS7, QS8, Y91) 2006-2006 01
037 26101115 RESERVOIR KIT, P/S FLUID (INCLS 10) K1 (06) (JH2, PF4, PF9) (EXC BPH, LTJ, Y91) 2006-2006 01
038 26098862 CAP, P/S PUMP RSVR K1 (06) (JH2) (EXC N88, N93, N94, PD0, PF4, PF9, P25, P27) 2004-2006 01
038 26098862 CAP, P/S PUMP RSVR K1 (06) (JH2, N93, Y91) 2004-2006 01
038 26098862 CAP, P/S PUMP RSVR K1 (06) (JH2, P25, P27) (EXC Y91) 2004-2006 01
038 26098862 CAP, P/S PUMP RSVR CK1 (06) (JH2) (EXC Y91) 2006-2006 01
040 SEAL, P/S PUMP STUD (O RING) (*KIT2) 2004-2007
K02 15825938 SEAL KIT, P/S PUMP (INCLS 7, 10, 35, 40) (FRT SEAL NOT INCL) K1, 2, 3 2001-2007 01
