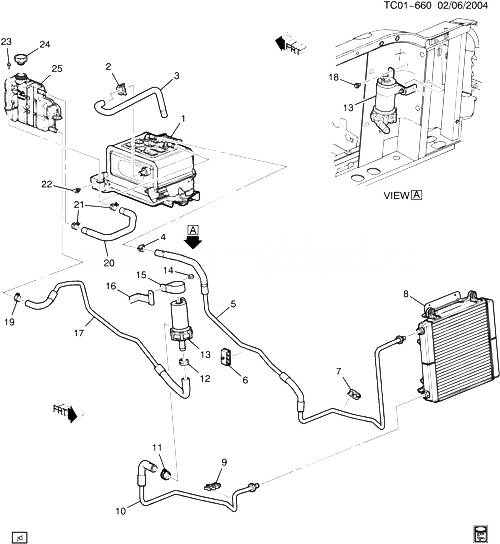

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 002 |
11516220 |
CLAMP, 20MM DIA HOSE, 15MM WIDTH, 6298M MATL (PART OF 3) |
|
2004-2007 |
01 |
| 004 |
|
CLAMP, GEN CONT MDL COOL HOSE (PART OF 5) |
|
2004-2007 |
|
| 008 |
|
RADIATOR, GEN CONT MDL COOL (СМ. ГРУППУ 01.000 МОДУЛЬ УПРАВЛЕНИЯ СИСТЕМА ОХЛАЖДЕНИЯ-КРЕПЛЕНИЕ РАДИАТОРА FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2007 |
|
| 009 |
|
CLIP, GEN CONT MDL COOL PIPE (PART OF 10) |
|
2004-2007 |
|
| 011 |
11517136 |
CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (PART OF 10) |
|
2004-2007 |
01 |
| 012 |
11517136 |
CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (PART OF 17) |
|
2004-2007 |
01 |
| 014 |
11609374 |
BOLT-WASHER, M6X1X16, 17 OD, 12 THD, 9.8, GMW3359, 1.47 H-REG FL WA. (PART OF 13) |
|
2004-2007 |
01 |
| 018 |
11609374 |
BOLT-WASHER, M6X1X16, 17 OD, 12 THD, 9.8, GMW3359, 1.47 H-REG FL WA. (GEN CONT MDL COOL PMP BRKT) |
|
2004-2007 |
02 |
| 021 |
|
CLAMP, GEN CONT MDL COOL TK HOSE (PART OF 20) |
|
2004-2007 |
|
| 022 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (GEN CONT MDL COOL TK BRKT) |
|
2004-2007 |
02 |
| 023 |
11516569 |
БОЛТ, HEX HD, W/FLAT WA, M6X1X30, P-PT, 9.8, 7114M (GEN CONT MDL COOL TK) |
|
2004-2007 |
02 |
