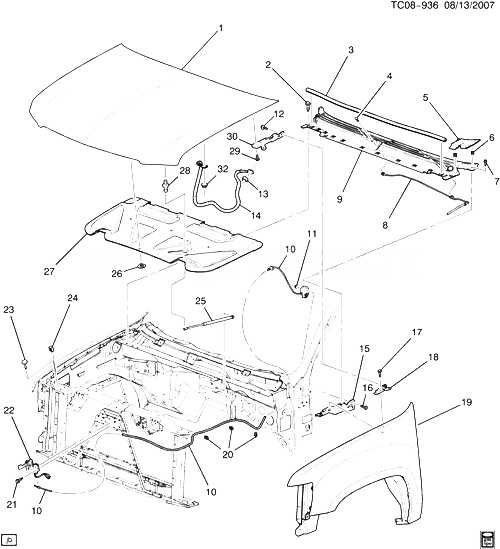

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25827196 |
КАПОТ, (INCLS 28) |
CK1 (06) (HP2, X88) |
2008-2009 |
01 |
| 002 |
11609797 |
БОЛТ, AIR INL GRL PNL (10.268) |
CK1, 2, 3 |
2008-2009 |
04 |
| 003 |
|
SEAL, AIR INL GRL PNL (PART OF 9) |
|
2008-2009 |
|
| 004 |
15048061 |
RETAINER, AIR INL GRL PNL (PART OF 9) (PUSH IN)
| CK1, 2 (06-36) |
2008-2009 |
01 |
|
| 005 |
25820729 |
PANEL, AIR INL GRL (INCLS 6) (BLACK)
| CK1, 2 (06-36) |
2008-2009 |
01 |
|
| 005 |
25820730 |
PANEL, AIR INL GRL (INCLS 6) (BLACK)
| CK1, 2 (06) |
2008-2009 |
01 |
|
| 006 |
11609796 |
CLIP, AIR INL GRL PNL (PART OF 5) (11.0 X 12.9 X 6.1MM) (8.950) |
CK1, 2 (06-36) |
2008-2009 |
03 |
| 007 |
15048061 |
RETAINER, AIR INL GRL PNL (PUSH IN)
| CK1, 2 (06-36) |
2008-2009 |
01 |
|
| 008 |
25887976 |
HOSE, WSWA NOZ (PART OF 9)
| CK1, 2 (06-36) |
2008-2009 |
01 |
|
| 009 |
25872303 |
PANEL, AIR INL GRL (CTR) (INCLS 3, 4, 8) (BLACK) |
CK1, 2 (06-36) |
2008-2009 |
01 |
| 010 |
15894378 |
CABLE, КАПОТ PRIM LAT REL (INCLS PULL HANDLE)
| CK1, 2, 3 |
2008-2009 |
01 |
|
| 011 |
11516780 |
ГАЙКА, HEX W/CON WA, M8X1.25, 10THK, 19 O.D., 10, 7111M (КАПОТ PRIM LAT REL CBL) (8.917)
|
2008-2009 |
01 |
|
| 012 |
|
БОЛТ, КАПОТ HGE |
|
2008-2009 |
|
| 013 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BODY STATIC GND STRP)
|
2008-2009 |
02 |
|
| 014 |
|
STRAP, BODY STATIC GND |
|
2008-2009 |
|
| 015 |
15870422 |
BRACKET, F/FDR UPR
| CK1, 2, 3 |
2008-2009 |
01 |
|
| 015 |
15951192 |
BRACKET, F/FDR UPR
| CK1, 2 (06) |
2008-2009 |
01 |
|
| 016 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (F/FDR UPR BRKT) (ACDelco #11570082)
|
2008-2009 |
04 |
|
| 017 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (F/FDR UPR BRKT) (ACDelco #11570082)
|
2008-2009 |
06 |
|
| 018 |
15887400 |
BRACKET, КАПОТ HGE LWR (PART OF 19) |
CK1, 2, 3 |
2008-2009 |
01 |
| 018 |
15887401 |
BRACKET, КАПОТ HGE LWR (PART OF 19) |
CK1, 2, 3 |
2008-2009 |
01 |
| 019 |
20774897 |
FENDER, FRT (INCLS 18) (СМ. ГРУППУ 08.000 КРЫЛО И ПЕРЕДНИЙ ПОДКРЫЛОК FOR DETAILED ILLUSTRATED VIEW)
| CK1, 2 (06-36) (X88) |
2008-2009 |
01 |
|
| 019 |
25825297 |
FENDER, FRT (INCLS 18) (СМ. ГРУППУ 08.000 КРЫЛО И ПЕРЕДНИЙ ПОДКРЫЛОК FOR DETAILED ILLUSTRATED VIEW)
| CK1, 2 (06-36) (X88) |
2008-2009 |
01 |
|
| 020 |
10150076 |
CLIP, КАПОТ PRIM LAT REL CBL (18.8 MM DIA) (ROUND CLIP) (3.425) |
CK1, 2, 3 |
2008-2009 |
03 |
| 021 |
11589039 |
БОЛТ, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (КАПОТ PRIM LAT)
|
2008-2009 |
03 |
|
| 022 |
25816903 |
LATCH, КАПОТ PRIM (W/O SWITCH) |
CK1, 2, 3 (AU0) (EXC M1F, UA6) |
2008-2009 |
01 |
| 022 |
25816903 |
LATCH, КАПОТ PRIM (W/O SWITCH) |
CK1, 2, 3 (EXC AP3, AP8, AU0, M1F, UA6) |
2008-2009 |
01 |
| 022 |
25816904 |
LATCH, КАПОТ PRIM (W/SWITCH) |
CK1, 2, 3 (AP3, AP8) (EXC M1F) |
2008-2009 |
01 |
| 022 |
25816904 |
LATCH, КАПОТ PRIM (W/SWITCH) |
CK1, 2, 3 (M1F) |
2008-2009 |
01 |
| 022 |
25816904 |
LATCH, КАПОТ PRIM (W/SWITCH) |
CK1, 2, 3 (UA6) |
2008-2009 |
01 |
| 022 |
25816904 |
LATCH, КАПОТ PRIM (W/SWITCH) (8.080) (SERV CMP OF XMTR PKGS) |
CK1, 2, 3 (AU0) |
2008-2009 |
01 |
| 023 |
25790320 |
BUMPER, КАПОТ ADJ FRT |
CK1, 2, 3 |
2008-2009 |
02 |
| 024 |
15250133 |
BUMPER, КАПОТ SI |
CK1, 2 (06-36) |
2008-2009 |
02 |
| 025 |
25815965 |
STRUT, КАПОТ |
CK1 (06) (HP2, X88, Z88) (EXC Y91) |
2009-2009 |
01 |
| 026 |
20064875 |
RETAINER, PUSH-IN, 20.5MMLG, 42.76MM 1.68HD DIA, PLASTIC (КАПОТ INSL)
|
2008-2009 |
04 |
|
| 027 |
25879289 |
INSULATOR, КАПОТ |
CK1, 2 (06) (HP2, X88, Z88) |
2009-2009 |
01 |
| 028 |
11562471 |
STUD, КАПОТ STRUT BALL (BODY SI) (PART OF 1) |
CK1 (06) (HP2, X88, Z88) (EXC Y91) |
2009-2009 |
01 |
| 029 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (КАПОТ HGE) (T/W 12345493 REPLCS 25534835)
|
2008-2009 |
04 |
|
| 030 |
15942145 |
HINGE, КАПОТ
| CK1, 2 (06-36) |
2008-2009 |
01 |
|
| 030 |
15942146 |
HINGE, КАПОТ
| CK1, 2 (06-36) |
2008-2009 |
01 |
|
