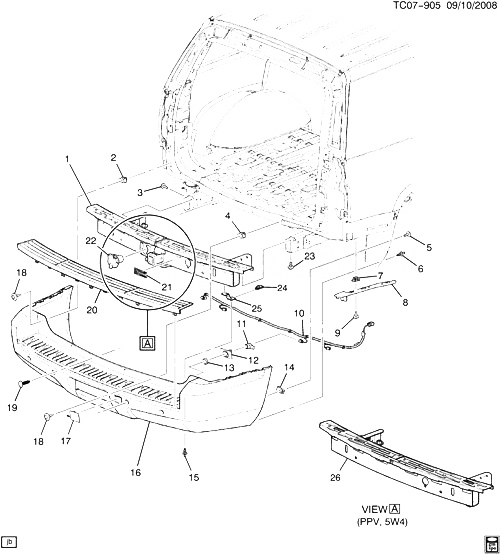

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25938524 |
БАМПЕР, ЗАДНИЙ IMP (INCLS 21, 25) (INCLS TRAILER HITCH RECEIVER)
| CK1, 2 (06) (VR4) (EXC PPV) |
2007-2009 |
01 |
|
| 002 |
11569711 |
ГАЙКА, PUSH-IN, M4.2X1.41, 0.7-2.15 PNL THK, SAE 1050-1065, GMW3359 W/ (RR BPR FASCIA)
|
2007-2009 |
02 |
|
| 003 |
11519537 |
БОЛТ, HEX HD, W/CON WA, M12X1.75X40.8, 25.6 THD, 35 O.D., 10.9, GMW3359 (RR BPR IMP BAR) |
|
2007-2009 |
04 |
| 004 |
11518531 |
ГАЙКА, U-TYPE, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (RR BPR FASCIA) (10.512)
|
2007-2009 |
02 |
|
| 005 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RR W/H PNL LNR)
|
2007-2009 |
04 |
|
| 006 |
11589292 |
PUSH PIN, FITS 8.5 DIA HOLE IN 2-4.5 THK PNL, NYLON 6/6 GMP.PA66.015 (RR W/H PNL LNR (PUSH IN))
|
2007-2009 |
AR |
|
| 007 |
11569711 |
ГАЙКА, PUSH-IN, M4.2X1.41, 0.7-2.15 PNL THK, SAE 1050-1065, GMW3359 W/ (RR BPR FASCIA SI SUPT)
|
2007-2009 |
06 |
|
| 008 |
15912685 |
BRACKET, RR BPR FASCIA SUPT
| CK107 (06) |
2007-2009 |
01 |
|
| 008 |
25906986 |
BRACKET, RR BPR FASCIA SUPT
| CK107 (06) |
2007-2009 |
01 |
|
| 009 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RR BPR FASCIA SI SUPT)
|
2007-2009 |
06 |
|
| 010 |
20813742 |
HARNESS, RR OBJECT SEN WRG
| CK107 (06) (UD7, VGE, X88, Z88) (EXC BPH, HP2, STZ, T89, Y91) |
2009-2009 |
01 |
|
| 011 |
15239247 |
SENSOR KIT, RR OBJECT (INCLS 13) (PRIMED) (W/O HOUSING) (*KIT1)
| CK107, 109 (06) (UD7) |
2009-2009 |
04 |
|
| 012 |
15817519 |
HOUSING, RR OBJECT SEN (PRIMED) (PART OF 16) (OUTBOARD) (*KIT1) (7.831)
| CK107 (06) (UD7, VGE, X88, Z88) (EXC BPH, HP2, T89, Y91) |
2007-2009 |
01 |
|
| 012 |
15817519 |
HOUSING, RR OBJECT SEN (PRIMED) (PART OF 16) (OUTBOARD) (*KIT1) (7.831)
| CK107 (06) (UD7, VGE, X88, Z88) (EXC BPH, HP2, STZ, T89, Y91) |
2009-2009 |
01 |
|
| 012 |
15817519 |
HOUSING, RR OBJECT SEN (PRIMED) (PART OF 16) (OUTBOARD) (*KIT1)
| CK107 (06) (UD7, VGE, X88, Z88) (EXC BPH, HP2, T89, Y91) |
2007-2009 |
01 |
|
| 012 |
15817519 |
HOUSING, RR OBJECT SEN (PRIMED) (PART OF 16) (OUTBOARD) (*KIT1)
| CK107 (06) (UD7, VGE, X88, Z88) (EXC BPH, HP2, STZ, T89, Y91) |
2009-2009 |
01 |
|
| 012 |
15817520 |
HOUSING, RR OBJECT SEN (PRIMED) (PART OF 16) (INBOARD) (*KIT1) (7.831) |
CK107 (06) (UD7, VGE, X88, Z88) (EXC BPH, HP2, STZ, T89, Y91) |
2009-2009 |
01 |
| 012 |
15817520 |
HOUSING, RR OBJECT SEN (PRIMED) (PART OF 16) (INBOARD) (*KIT1) |
CK107 (06) (UD7, VGE, X88, Z88) (EXC BPH, HP2, STZ, T89, Y91) |
2009-2009 |
01 |
| 012 |
15817521 |
HOUSING, RR OBJECT SEN (PRIMED) (PART OF 16) (OUTBOARD) (*KIT1) (7.831)
| CK107 (06) (UD7, VGE, X88, Z88) (EXC BPH, HP2, STZ, T89, Y91) |
2009-2009 |
01 |
|
| 012 |
15817521 |
HOUSING, RR OBJECT SEN (PRIMED) (PART OF 16) (OUTBOARD) (*KIT1)
| CK107 (06) (UD7, VGE, X88, Z88) (EXC BPH, HP2, STZ, T89, Y91) |
2009-2009 |
01 |
|
| 012 |
15817522 |
HOUSING, RR OBJECT SEN (PRIMED) (PART OF 16) (INBOARD) (*KIT1) (7.831)
| CK107 (06) (UD7, VGE, X88, Z88) (EXC T89, Y91) |
2007-2009 |
01 |
|
| 012 |
15817522 |
HOUSING, RR OBJECT SEN (PRIMED) (PART OF 16) (INBOARD) (*KIT1) (7.831)
| CK107 (06) (UD7, VGE, X88, Z88) (EXC BPH, HP2, STZ, T89, Y91) |
2009-2009 |
01 |
|
| 012 |
15817522 |
HOUSING, RR OBJECT SEN (PRIMED) (PART OF 16) (INBOARD) (*KIT1)
| CK107 (06) (UD7, VGE, X88, Z88) (EXC BPH, HP2, STZ, T89, Y91) |
2009-2009 |
01 |
|
| 013 |
|
RETAINER, RR OBJECT SEN (PART OF 11) (*KIT1) |
|
2008-2009 |
|
| 013 |
|
RETAINER, RR OBJECT SEN (PART OF 11) (*KIT1) |
|
2009-2009 |
|
| 014 |
11515638 |
ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (RR W/H PNL LNR)
|
2007-2009 |
02 |
|
| 015 |
11589293 |
RETAINER, PUSH-IN, FITS 8.5 DIA HOLE, 4.5-7 THK PNL, NYLON 6/6 GMP.PA66.0 (RR BPR FASCIA (PUSH IN))
|
2007-2009 |
02 |
|
| 016 |
25830551 |
FASCIA, RR BPR (FOR THE BPH OPTION, DRILL HOLES USING SCRIBE LINES ON UNDERSIDE OF FASCIA FOR REAR FLARE ATTACHMENT LOCATIONS) (INCLS 12, 17) (PAINT TO MATCH)
| CK107 (06) (UD7, VGE, X88, Z88) (EXC HP2, T89, Y91) |
2007-2009 |
01 |
|
| 017 |
15811584 |
COVER, RR BPR FASCIA ACC HOLE (PART OF 16) (PAINT TO MATCH)
| CK1, 2 (06) (EXC Y91) |
2007-2009 |
01 |
|
| 018 |
11570498 |
БОЛТ, HWH W/FL WA, M4.2X1.41X20, 11.4 THD, 17 OD, ISO 2702 STL , GMW4205, T (RR BPR FASCIA)
|
2007-2009 |
04 |
|
| 019 |
11562024 |
RETAINER, PUSH IN, 7.5X36.5, FITS 6.35 HOLE IN 2.29-18.34 THK PNL (RR BPR FASCIA (PUSH IN))
|
2007-2009 |
02 |
|
| 020 |
15203817 |
PAD, RR BPR FASCIA STEP
| CK107 (06) (VGE, X88, Z88) (EXC HP2, STZ, T89, Y91) |
2009-2009 |
01 |
|
| 021 |
15228708 |
LABEL, TRLR HITCH INFO (PART OF 1) |
CK1, 2 (06) |
2007-2009 |
01 |
| 022 |
12191503 |
RECEPTACLE, TOW VEH ELEC (W/DOOR)
| CK1, 2 (06-36) (Z82) (EXC PPV) |
2008-2009 |
01 |
|
| 023 |
11561075 |
BOLT-HEX W/CON WA, M14X2X45, 21.18 THD, 32 OD, 10.9, GMW3359, M-PT, ADHES (RR BPR IMP BAR)
|
2007-2009 |
06 |
|
| 024 |
11570097 |
ГАЙКА, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (RR BPR LWR FASCIA)
|
2007-2009 |
02 |
|
| 025 |
25894906 |
BRACKET, RR BPR IMP BAR (PART OF 1, 26)
| CK1, 2 (06) |
2007-2009 |
02 |
|
| 026 |
15866131 |
БАМПЕР, ЗАДНИЙ IMP (INCLS 25) (W/O HITCH) |
C1 (06) (PPV) (EXC VR4) |
2007-2009 |
01 |
| K01 |
19116085 |
SENSOR KIT, RR OBJECT (INCLS 11-13) (PRIMED) (W/HOUSING) (7.831)
| CK1 |
2007-2009 |
04 |
|
| K01 |
19116085 |
SENSOR KIT, RR OBJECT (INCLS 11-13) (PRIMED) (W/HOUSING)
| CK1 |
2007-2009 |
04 |
|
