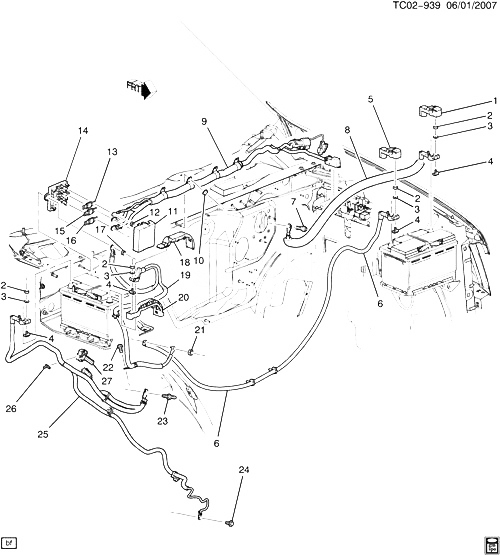

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 002 |
|
ГАЙКА, BAT CBL TERM (PART OF 4, 6, 8, 19, 25) |
|
2007-2009 |
|
| 003 |
|
WASHER, BAT CBL TERM (PART OF 4, 6, 8, 19, 25) |
|
2007-2009 |
|
| 004 |
19116852 |
BOLT KIT, BAT CBL TERM (PART OF 6, 8, 19, 25) (INCLS 2, 3)
| CK1, 2, 3 (EXC 9L4) |
2009-2009 |
01 |
|
| 005 |
19116038 |
COVER, BAT POS CBL TERM (PART OF 6) |
CK107 (06) (6A6) |
2007-2009 |
01 |
| 006 |
25825642 |
CABLE, AUX BAT POS (INCLS 2-5) (ACDelco #25825642)
| CK107 (06) (6A6, PPV) |
2007-2009 |
01 |
|
| 007 |
11609619 |
БОЛТ, HEX W/ FL WA-M10X1.5X16, 20 OD, 10.9 STL, GMW3200 FINISH (AUX BAT NEG CBL)
|
2007-2009 |
01 |
|
| 008 |
25876896 |
CABLE, AUX BAT NEG (INCLS 1-4) (ACDelco #25876896)
| CK107 (06) (6A6) |
2007-2009 |
01 |
|
| 009 |
25862352 |
CABLE, AUX BAT POS (RH PROC) (ACDelco #25862352) |
CK107 (06) (PPV, 5W4) |
2007-2009 |
01 |
| 010 |
21011332 |
ГАЙКА, HEX STAMPED TY DF FLG 14 (BAT POS CBL RET) (8.921) |
|
2007-2009 |
04 |
| 011 |
15881616 |
COVER, BAT POS CBL J/BLK (3 WAY MEGAFUSE) |
CK1, 2, 3 (PPV, 5W4, 9L4) |
2007-2009 |
01 |
| 012 |
21021808 |
ГАЙКА, BAT HDL (M8X1.25X6, BRASS) (2.343)
| CK1, 2, 3 |
2007-2009 |
04 |
|
| 013 |
15106388 |
FUSE, (MEGA FUSE) (BLACK) (60 AMP) (8.965) |
CK107 (06) (PPV, 5W4) |
2007-2009 |
01 |
| 014 |
19116352 |
HOLDER, WRG HARN FUSE |
CK1, 2, 3 (9L4) |
2007-2009 |
01 |
| 014 |
19116352 |
HOLDER, WRG HARN FUSE |
CK107 (06) (PPV, 5W4) |
2007-2009 |
01 |
| 015 |
12177251 |
FUSE, 125 AMP MEGA FUSE (125 A) (FUSE COLOR, BLACK W/SIZE STAMPED IN WHITE ON CASE)
|
2007-2009 |
01 |
|
| 016 |
15305191 |
FUSE, 175 AMP MEGA (ASHTRAY LP) ( FUSE COLOR, BLACK W/SIZE STAMPED IN WHITE ON CASE)
|
2007-2009 |
01 |
|
| 017 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS CBL J/BLK BRKT)
|
2007-2009 |
02 |
|
| 018 |
25797040 |
COVER, BAT POS CBL TERM (TOP) (PART OF 19) |
CK1, 2, 3 (LC9, LH6, LMG, LU3, LY2, LY5, LY6, L76, L9H) |
2009-2009 |
01 |
| 019 |
20774386 |
CABLE, STRTR SOL (INCLS 2-4, 18, 20) (LABELED 20774386) (ACDelco #20774386) |
CK1, 2, 3 (LC9, LH6, LMG, LU3, LY2, LY5, LY6, L76, L9H) |
2009-2009 |
01 |
| 019 |
25875321 |
CABLE, STRTR SOL (INCLS 2-4, 18, 20) (LABELED 25875321) (ACDelco #25875321) |
CK1, 2, 3 (LC9, LH6, LMG, LU3, LY2, LY5, LY6, L76, L9H) |
2009-2009 |
01 |
| 020 |
25888958 |
COVER, BAT POS CBL TERM (BOTTOM) (PART OF 19) |
CK1, 2, 3 (LC9, LH6, LMG, LY2, LY5, LY6, L76, L9H) |
2009-2009 |
01 |
| 021 |
21021808 |
ГАЙКА, STRTR SOL CBL (M8X1.25X6, BRASS)
| CK1, 2, 3 (EXC HP2) |
2007-2009 |
01 |
|
| 022 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (BAT POS CBL CLIP) |
|
2007-2009 |
01 |
| 023 |
11561111 |
STUD, BAT NEG CBL GND (M10 X1.5 X 20) |
CK1, 2, 3 (LC9, LH6, LMG, LY2, LY5, LY6, L76, L9H, L92) |
2009-2009 |
01 |
| 024 |
11588337 |
БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (BAT NEG CBL GND)
|
2007-2009 |
01 |
|
| 025 |
20835005 |
CABLE, BAT NEG (INCLS 2-4, 26, 27) |
CK1 (LC9, LH6, LMG, LY2, LY5, L76, L9H) (EXC 9L4) |
2009-2009 |
01 |
| 027 |
10306471 |
ДАТЧИК, BAT CUR (PART OF 25)
| CK1 |
2007-2009 |
01 |
|
