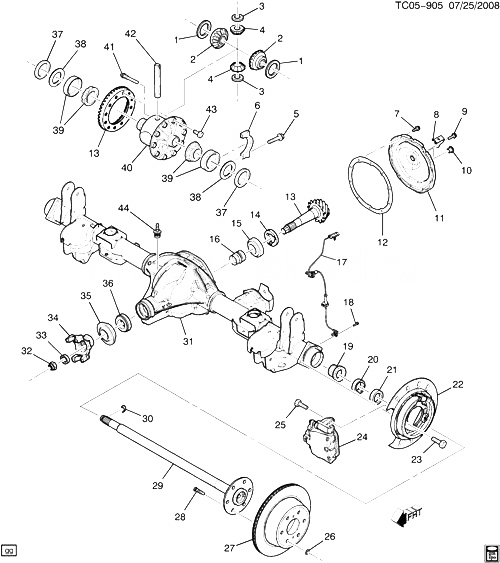

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
WASHER, DIFF SI GR THR (*KIT1) |
|
2007-2009 |
|
| 002 |
|
GEAR, DIFF SI (*KIT1) |
|
2007-2009 |
|
| 003 |
03984818 |
WASHER, DIFF P/GR THR (.797 I.D. 1.70 O.D.) (*KIT1) |
CK1 (EXC G80) |
2007-2009 |
02 |
| 004 |
|
GEAR, DIFF PINION (*KIT1) |
|
2007-2009 |
|
| 005 |
00454947 |
БОЛТ, HEX .437-14X2.250 CL-2A CAD/ZC (PART OF 31) |
|
2007-2009 |
04 |
| 006 |
|
CAP, DIFF CARRIER BEARING (PART OF 31) |
|
2007-2009 |
|
| 007 |
12471307 |
БОЛТ, R/AXL HSG CVR (M8X1.25X20) (*KIT2) |
CK1, 2, 3 |
2007-2008 |
AR |
| 008 |
15791254 |
BRACKET, RR BRK C/OVR PIPE (INCLS 9) (CONTAINS BRACKET SCREW) (*KIT2)
| CK1 |
2007-2008 |
01 |
|
| 009 |
|
БОЛТ, R/AXL HSG CVR (PART OF 8) (*KIT2) |
|
2007-2008 |
|
| 010 |
12479141 |
PLUG, R/AXL HSG FILL (INCLS WASHER MAGNET) (*KIT2) |
CK1 |
2007-2008 |
01 |
| 011 |
|
COVER, R/AXL HSG (*KIT2) |
|
2007-2008 |
|
| 012 |
15807693 |
ПРОКЛАДКА, R/AXL HSG CVR (10 BOLT HOLES) (*KIT2)
| CK1 |
2007-2008 |
01 |
|
| 013 |
12479056 |
GEAR KIT, DIFF RING PINION (INCLS 16, 32, 33, 43) |
CK1 (GT5) (EXC AXN) |
2007-2008 |
01 |
