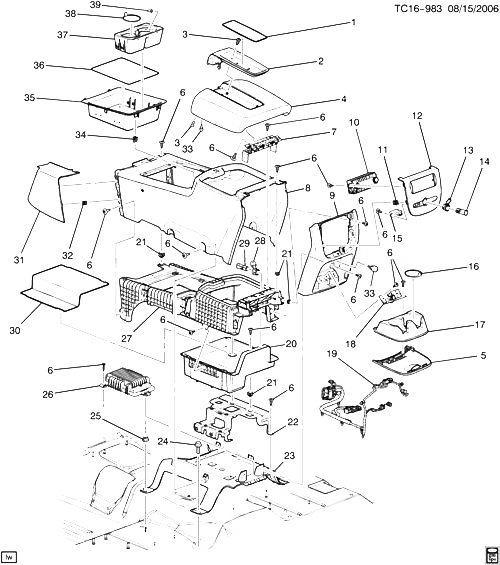

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15946301 |
LINER, F/FLR CNSL F/CMPT (PART OF 2, 4)
| CK1, 2 (06) (D07, UK6) (EXC Y91) |
2007-2008 |
01 |
|
| 001 |
15946301 |
LINER, F/FLR CNSL F/CMPT (PART OF 2, 4)
| CK1, 2 (06-36) |
2007-2009 |
01 |
|
| 002 |
15134814 |
PUSHBUTTON, F/FLR CNSL COMPT DR LAT (INCLS 1) (PART OF 4) (EBONY) |
CK1, 2, 3 (EXC Y91) |
2007-2009 |
01 |
| 003 |
|
БОЛТ, F/FLR CNSL COMPT (PART OF 4) |
|
2007-2009 |
|
| 004 |
15217111 |
ARMREST, F/FLR CNSL (INCLS 1-3, 7, 33) (EBONY)
| CK1, 2 (06-36) (UK6, UQA, UQ3, 19I, 22I, 84I) (EXC Y91) |
2007-2009 |
01 |
|
| 004 |
15217112 |
ARMREST, F/FLR CNSL (INCLS 1-3, 7, 33) (CASHMERE) |
CK1, 2, 3 (31I, 33I) (EXC Y91) |
2007-2009 |
01 |
| 004 |
15217113 |
ARMREST, F/FLR CNSL (INCLS 1-3, 7, 33) (TITANIUM) |
CK1, 2, 3 (83I) (EXC Y91) |
2007-2009 |
01 |
| 005 |
15217105 |
PANEL, F/FLR CNSL R/CMPT DR (EBONY) |
CK1, 2, 3 (19I, 22I, 84I, 85I) |
2007-2009 |
01 |
| 005 |
15217106 |
PANEL, F/FLR CNSL R/CMPT DR (CASHMERE) |
CK1, 2, 3 (31I, 33I, 39I) |
2007-2009 |
01 |
| 005 |
15217107 |
PANEL, F/FLR CNSL R/CMPT DR (TITANIUM) |
CK1, 2, 3 (83I, 84I) |
2007-2009 |
01 |
| 006 |
11609459 |
SCREW, RND WA, M4.2X1.41X13, 7.2 THD, 11.35 OD, 6010M, GMW4205 (F/FLR CNSL)
|
2007-2009 |
AR |
|
| 007 |
15134813 |
HINGE, F/FLR CNSL COMPT DR (PART OF 4) (COMPARTMENT DOOR HINGE) |
CK1, 2 (06) (D07, X88, Z88) |
2007-2007 |
01 |
| 008 |
15905961 |
COMPARTMENT, F/FLR (INCLS 22, 23) (CASHMERE) |
CK1, 2 (06) (UQ3, 31I, 33I) (EXC KA6, U42, Y91) |
2007-2008 |
01 |
| 008 |
15905962 |
COMPARTMENT, F/FLR (INCLS 22, 23) (TITANIUM) |
CK1, 2 (06) (UQ3, 83I) (EXC KA6, U42, Y91) |
2007-2008 |
01 |
| 008 |
15905968 |
COMPARTMENT, F/FLR (INCLS 22, 23) (EBONY) |
CK1, 2 (06) (KA6, 19I, 22I, 84I) (EXC U42, Y91) |
2007-2008 |
01 |
| 008 |
15905969 |
COMPARTMENT, F/FLR (INCLS 22, 23) (CASHMERE) |
CK1, 2 (06) (KA6, 31I, 33I) (EXC Y91, U42) |
2007-2008 |
01 |
| 008 |
15905970 |
COMPARTMENT, F/FLR (INCLS 22, 23) (TITANIUM) |
CK1, 2 (06) (KA6, 83I) (EXC Y91, U42) |
2007-2008 |
01 |
| 008 |
15905973 |
COMPARTMENT, F/FLR (INCLS 22, 23) (CASHMERE) |
CK1, 2 (06) (UQA, U42, 31I, 33I) (EXC KA6, Y91) |
2007-2008 |
01 |
| 008 |
15905974 |
COMPARTMENT, F/FLR (INCLS 22, 23) (TITANIUM) |
CK1, 2 (06) (UQA, U42, 83I) (EXC KA6, STZ, Y91) |
2007-2008 |
01 |
| 008 |
25911841 |
COMPARTMENT, F/FLR (INCLS 22, 23) (EBONY) |
CK1, 2 (06) (KA6, UL8, 19I, 22I, 84I) (EXC STZ, Y91) (EXPORT) |
2007-2009 |
01 |
| 008 |
25911842 |
COMPARTMENT, F/FLR (INCLS 22, 23) (CASHMERE) |
CK1, 2 (06) (KA6, UL8, 31I, 33I) (EXC Y91) (EXPORT) |
2007-2009 |
01 |
| 008 |
25911843 |
COMPARTMENT, F/FLR (INCLS 22, 23) (TITANIUM) |
CK1, 2 (06) (KA6, UL8, UQA, UVB, U42, 83I) (EXC STZ, Y91) (EXPORT) |
2007-2009 |
01 |
| 008 |
25911846 |
COMPARTMENT, F/FLR (INCLS 22, 23) (EBONY) |
CK1, 2 (06) (UL8, 19I, 22I, 84I) (EXC KA6, STZ, Y91) (EXPORT) |
2007-2009 |
01 |
| 008 |
25911847 |
COMPARTMENT, F/FLR (INCLS 22, 23) (CASHMERE) |
CK1, 2 (06) (UL8, 31I, 33I) (EXC KA6, STZ, Y91) (EXPORT) |
2007-2009 |
01 |
| 008 |
25911848 |
COMPARTMENT, F/FLR (INCLS 22, 23) (TITANIUM) |
CK1, 2 (06) (UL8, UQA, UVB, U42, 83I) (EXC KA6, STZ, Y91) (EXPORT) |
2007-2009 |
01 |
| 008 |
25913692 |
COMPARTMENT, F/FLR (INCLS 22, 23) (EBONY) |
CK1, 2 (06) (KA6, UQA, U42, 19I, 22I, 84I) (EXC Y91) |
2007-2009 |
01 |
| 008 |
25913693 |
COMPARTMENT, F/FLR (INCLS 22, 23) (CASHMERE) |
CK1, 2 (06) (KA6, UQA, U42, 31I, 33I) (EXC STZ, Y91) |
2007-2009 |
01 |
| 008 |
25913694 |
COMPARTMENT, F/FLR (INCLS 22, 23) (TITANIUM) |
CK1, 2 (06) (D07, UK6, UQA, U42, 83I, KA6) (EXC Y91) |
2007-2008 |
01 |
| 008 |
25913700 |
COMPARTMENT, F/FLR (INCLS 22, 23) (EBONY) |
CK1, 2 (06) (UQA, U42, 19I, 22I, 84I) (EXC KA6, Y91) |
2007-2008 |
01 |
| 008 |
25913706 |
COMPARTMENT, F/FLR (INCLS 22, 23) (EBONY) |
CK1, 2 (06) (D07, UK6, UQA, 19I, 22I, 84I) (EXC KA6, U42, Y91) |
2007-2008 |
01 |
| 008 |
25913707 |
COMPARTMENT, F/FLR (INCLS 22, 23) (CASHMERE) |
CK1, 2 (06) (D07, UK6, UQA, 31I, 33I) (EXC KA6, U42, Y91) |
2007-2009 |
01 |
| 008 |
25913708 |
COMPARTMENT, F/FLR (INCLS 22, 23) (TITANIUM) |
CK1, 2 (06) (D07, UK6, UQA, 83I) (EXC KA6, U42, Y91) |
2007-2008 |
01 |
| 008 |
25913742 |
COMPARTMENT, F/FLR (INCLS 22, 23) (EBONY) |
CK1, 2 (06) (D07, UK6, UQ3, 19I, 22I, 84I) (EXC KA6, U42, Y91) |
2007-2008 |
01 |
| 009 |
15217101 |
PANEL, F/FLR FRT CNSL RR TR (EBONY) |
CK1 (06-36) (19I, 22I, 84I) |
2007-2009 |
01 |
| 009 |
15217102 |
PANEL, F/FLR FRT CNSL RR TR (CASHMERE) |
CK1 (06-36) (31I, 33I, 39I) |
2007-2009 |
01 |
| 009 |
15217103 |
PANEL, F/FLR FRT CNSL RR TR (TITANIUM) |
CK1 (06-36) (83I) |
2007-2009 |
01 |
| 010 |
15881861 |
MODULE, HTR A/C RDO CONT (СМ. ГРУППУ 09.000 A/C HEATER CONTROL FOR DETAILED ILLUSTRATED VIEW) |
CK1, 2 (06) (D07, UK6, UQ3) (EXC KA6, U42, Y91) |
2007-2007 |
01 |
| 010 |
15881861 |
MODULE, HTR A/C RDO CONT (СМ. ГРУППУ 09.000 A/C HEATER CONTROL FOR DETAILED ILLUSTRATED VIEW) |
CK1, 2 (06) (D07, UK6, UQA) (EXC Y91, KA6) |
2007-2007 |
01 |
| 010 |
15881861 |
MODULE, HTR A/C RDO CONT (СМ. ГРУППУ 09.000 A/C HEATER CONTROL FOR DETAILED ILLUSTRATED VIEW) (2.560) |
CK1, 2 (06) (D07, UK6, UQ3) (EXC KA6, U42, Y91) |
2007-2007 |
01 |
| 010 |
15881861 |
MODULE, HTR A/C RDO CONT (СМ. ГРУППУ 09.000 A/C HEATER CONTROL FOR DETAILED ILLUSTRATED VIEW) (2.560) |
CK1, 2 (06) (D07, UK6, UQA) (EXC Y91, KA6) |
2007-2007 |
01 |
| 010 |
15886277 |
MODULE, HTR A/C RDO CONT (СМ. ГРУППУ 09.000 A/C HEATER CONTROL FOR DETAILED ILLUSTRATED VIEW) (ACDelco #15886277) |
CK1, 2 (06) (D07, KA6, UK6) (EXC Y91) |
2007-2007 |
01 |
| 010 |
15886277 |
MODULE, HTR A/C RDO CONT (СМ. ГРУППУ 09.000 A/C HEATER CONTROL FOR DETAILED ILLUSTRATED VIEW) (2.560) (ACDelco #15886277) |
CK1, 2 (06) (D07, KA6, UK6) (EXC Y91) |
2007-2007 |
01 |
| 011 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 12)
|
2007-2009 |
05 |
|
| 012 |
15134825 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13, 14) (NO AUDIO JACKS) |
CK1, 2 (06) (UL8) (EXPORT) |
2007-2009 |
01 |
| 012 |
15134825 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13, 14) (NO AUDIO JACKS) |
CK1, 2 (06) (UQA) |
2007-2009 |
01 |
| 012 |
15134825 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13, 14, 15) (NO AUDIO JACKS) |
CK1, 2 (06) (UL8) (EXPORT) |
2007-2009 |
01 |
| 012 |
15134825 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13, 14, 15) (NO AUDIO JACKS) |
CK1, 2 (06) (UQA) |
2007-2009 |
01 |
| 012 |
15134826 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13, 14) (EBONY) (2 AUDIO JACKS) |
CK1, 2 (06) (EXC UL8) |
2007-2009 |
01 |
| 012 |
15134826 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13, 14) (EBONY) (2 AUDIO JACKS) |
CK1, 2 (06) (UQA) |
2007-2009 |
01 |
| 012 |
15134826 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13, 14, 15) (EBONY) (2 AUDIO JACKS) |
CK1, 2 (06) (EXC UL8) |
2007-2009 |
01 |
| 012 |
15134826 |
BEZEL, F/FLR CNSL COMPT (INCLS 11, 13, 14, 15) (EBONY) (2 AUDIO JACKS) |
CK1, 2 (06) (UQA) |
2007-2009 |
01 |
| 013 |
15187371 |
RETAINER, ACSRY PWR RCPT (PART OF 12) (EBONY) (INCLS COVER)
| CK1, 2, 3 (D07) |
2007-2008 |
01 |
|
| 014 |
25774623 |
RECEPTACLE, ACSRY PWR (PART OF 12) (ACSRY PWR RECEPTACLE ASSEM LABELED 4623)
| CK1, 2, 3 |
2007-2007 |
01 |
|
| 015 |
10375379 |
ADAPTER, AUDIO/VIDEO DISC PLYR (PART OF 12) (ACDelco #10375379) |
CK1, 2, 3 |
2007-2008 |
01 |
| 016 |
15134790 |
LINER, F/FLR CNSL RR CUP HLDR (EBONY) (W/O FINGERS) |
CK1, 2, 3 (X88, Z88) (EXC Y91) |
2007-2009 |
01 |
| 016 |
25793661 |
LINER, F/FLR CNSL RR CUP HLDR (W/FINGERS) |
CK1, 2, 3 (X88, Z88) |
2007-2009 |
01 |
| 017 |
15134819 |
HOLDER, F/FLR RR CNSL CUP |
CK1, 2, 3 (D07) |
2007-2009 |
01 |
| 018 |
15134821 |
HINGE, F/FLR CNSL COMPT DR (REAR CUPHOLDER DOOR HINGE) |
CK1, 2, 3 (D07) (EXC Y91) |
2007-2009 |
01 |
| 019 |
25781098 |
HARNESS, F/FLR CNSL WRG |
CK1, 2 (06) (D07, KA6, UIF, US8, US9, UVA, U3R, U3U, UK6, UL8, UQA, U42) (EXC Y91) |
2007-2008 |
01 |
| 019 |
25781098 |
HARNESS, F/FLR CNSL WRG |
CK1, 2 (06) (D07, UK6, UQA) (EXC KA6, U42, Y91) |
2007-2008 |
01 |
| 019 |
25781988 |
HARNESS, F/FLR CNSL WRG |
CK1, 2 (06) (D07, UK6, UQ3) (EXC KA6, U42, Y91) |
2007-2009 |
01 |
| 020 |
15134799 |
RETAINER, F/FLR CNSL (INCLS 30) |
CK1, 2 (06) (D07, UK6) |
2007-2007 |
01 |
| 021 |
11610157 |
ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (F/FLR CNSL) (10.701)
|
2007-2009 |
AR |
|
| 022 |
|
BRACKET, F/FLR CNSL (PART OF 8) |
|
2007-2009 |
|
| 023 |
|
BRACKET, F/FLR CNSL (PART OF 8) |
|
2007-2009 |
|
| 024 |
11562473 |
БОЛТ, F/SEAT (M12X1.75X45)
| CK1, 2, 3 (AE7, AN3, AZ3, A95) |
2007-2009 |
04 |
|
| 024 |
15013870 |
БОЛТ, F/SEAT (M10 X 1.5 X 38.6) (16.679) |
CK1, 2, 3 (A52) |
2007-2009 |
02 |
| 025 |
15035434 |
ГАЙКА, F/SEAT (M10X1.5X10.8) (FLANGE NUT) (16.679)
| CK1, 2, 3 |
2007-2009 |
04 |
|
| 026 |
15186661 |
AMPLIFIER, RDO SPKR (ACDelco #15186661) |
CK1, 2 (06) (D07, UK6, UQA) (EXC Y91) |
2007-2009 |
01 |
| 027 |
15134797 |
RETAINER, F/FLR CNSL (INCLS 28, 29) |
CK1, 2 (06) (D07, UK6) |
2007-2007 |
01 |
| 028 |
25749635 |
RETAINER, ACSRY PWR RCPT (PART OF 27) (EBONY) (W/O CAP)
| CK1, 2, 3 |
2007-2007 |
01 |
|
| 029 |
25774623 |
RECEPTACLE, ACSRY PWR (PART OF 27) (ACSRY PWR RECEPTACLE ASSEM LABELED 4623)
| CK1, 2, 3 |
2007-2007 |
01 |
|
| 030 |
15134801 |
MAT, F/FLR CNSL FRT COMPT (PART OF 20) (EBONY) |
CK1, 2 (06) |
2007-2009 |
01 |
| 031 |
15906823 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 32) (TITANIUM) |
CK1 (06-36) (D07, 83I) |
2007-2009 |
01 |
| 031 |
15916185 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 32) (TITANIUM) |
CK1 (06-36) (D07, 83I) |
2007-2009 |
01 |
| 032 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 31)
|
2007-2009 |
04 |
|
| 033 |
15070572 |
BUMPER, F/FLR RR CNSL A/RST (PART OF 4) |
CK1, 2 (06) (D07, UK6) (EXC Y91) |
2007-2009 |
01 |
| 034 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 35)
|
2007-2009 |
04 |
|
| 035 |
25793645 |
BEZEL, F/FLR FRT CNSL ACSRY TR (INCLS 34, 36-39) (EBONY) |
CK1, 2 (06-36) (D07, X88, Z88) (EXC STZ, Y91) |
2007-2009 |
01 |
| 036 |
15134788 |
LINER, F/FLR COMPT (PART OF 35) |
CK1, 2, 3 (SLT, X88, Z88) |
2007-2009 |
01 |
| 037 |
15134793 |
HOLDER, F/FLR CUP (PART OF 35) (EBONY) |
CK1, 2, 3 (D07, X88, Z88) |
2007-2009 |
01 |
| 037 |
15134793 |
HOLDER, F/FLR CUP (PART OF 35) (EBONY) (16.650) (SERV CMP OF HOLDER PKG 19154712) |
CK1, 2, 3 (D07, X88, Z88) |
2007-2009 |
01 |
| 038 |
15134790 |
LINER, F/FLR CNSL RR CUP HLDR (PART OF 35) (EBONY) (W/O FINGERS) |
CK1, 2, 3 (X88, Z88) (EXC Y91) |
2007-2009 |
01 |
| 038 |
25793661 |
LINER, F/FLR CNSL RR CUP HLDR (PART OF 35) (W/FINGERS) |
CK1, 2, 3 (X88, Z88) |
2007-2009 |
01 |
| 039 |
|
RETAINER, F/FLR CNSL FRT CUP HLDR (PART OF 35) |
|
2007-2009 |
|
| K01 |
15134825 |
BEZEL, F/FLR CNSL COMPT (INCLS 5, 6, 9, 16-18, 33) (NO AUDIO JACKS) |
CK1, 2 (06) (UL8) (EXPORT) |
2007-2009 |
01 |
| K01 |
15134825 |
BEZEL, F/FLR CNSL COMPT (INCLS 5, 6, 9, 16-18, 33) (NO AUDIO JACKS) |
CK1, 2 (06) (UQA) |
2007-2009 |
01 |
| K01 |
15134826 |
BEZEL, F/FLR CNSL COMPT (INCLS 5, 6, 9, 16-18, 33) (EBONY) (2 AUDIO JACKS) |
CK1, 2 (06) (EXC UL8) |
2007-2009 |
01 |
| K01 |
15134826 |
BEZEL, F/FLR CNSL COMPT (INCLS 5, 6, 9, 16-18, 33) (EBONY) (2 AUDIO JACKS) |
CK1, 2 (06) (UQA) |
2007-2009 |
01 |
