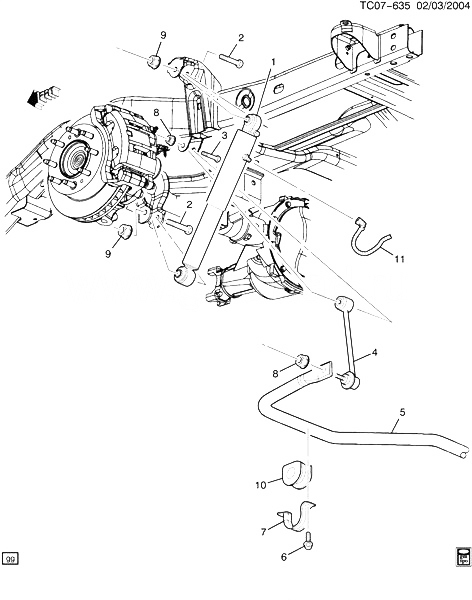

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
АМОРТИЗАТОР, ЗАДНИЙ SHK |
|
2007-2009 |
|
| 001 |
15852157 |
АМОРТИЗАТОР, ЗАДНИЙ LVLG SHK |
C107 (06) (Z55) (EXC Y91) |
2007-2007 |
02 |
| 001 |
15918524 |
АМОРТИЗАТОР, ЗАДНИЙ LVLG SHK (ACDelco #580-324) |
C107 (06) (PD5, PW2, Y91, Z55) |
2007-2007 |
02 |
| 001 |
15918525 |
АМОРТИЗАТОР, ЗАДНИЙ LVLG SHK (ACDelco #580-326)
| C107 (06) (P56, Y91, Z55) |
2007-2007 |
02 |
|
| 001 |
15935565 |
АМОРТИЗАТОР, ЗАДНИЙ SHK (ACDelco #15935565) |
C1 (Z56) |
2007-2009 |
02 |
| 001 |
25871226 |
АМОРТИЗАТОР, ЗАДНИЙ SHK (ACDelco #540-434) |
C107 (06) (ZW7) (EXC HP2) |
2007-2009 |
02 |
| 001 |
25871229 |
АМОРТИЗАТОР, ЗАДНИЙ SHK (ACDelco #540-300)
| C107 (06) (Z71) |
2007-2009 |
02 |
|
| 002 |
11609819 |
BOLT-HEX W/CON WA, M14X2X85, 45 THD, 28 OD, 10.9, GMW3359 (RR S/ABS)
|
2007-2009 |
04 |
|
| 003 |
11609243 |
BOLT M12X1.75X65 (RR STAB SHF INSL CLA) |
|
2007-2009 |
02 |
| 004 |
15257472 |
LINK, RR STAB SHF
| CK1 (06-36) |
2007-2009 |
02 |
|
| 005 |
10383662 |
SHAFT, RR STAB |
CK107 (06) |
2007-2009 |
01 |
| 006 |
11518294 |
BOLT-HFH, M10X1.5X29.5, 17.08 OD, 6202M, 4435M, TAP, TR-PT (RR STAB SHF INSL CLA)
|
2007-2009 |
04 |
|
| 007 |
88891781 |
CLAMP, RR STAB SHF INSL
| CK1 (06-36) |
2007-2009 |
02 |
|
| 008 |
03537772 |
ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (RR STAB SHF LINK) (8.917)
|
2007-2009 |
04 |
|
| 009 |
11516382 |
ГАЙКА, HFH LK M14X2X15, 28 OD 10 7111M (RR S/ABS)
|
2007-2009 |
04 |
|
| 010 |
14071381 |
INSULATOR, RR STAB SHF (RUBBER) (28.6 MM STAB BAR)
| CK1 (06-36) |
2007-2009 |
02 |
|
| 011 |
19115819 |
TUBE, RR S/ABS AIR (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ШАССИ FOR DETAILED ILLUSTRATED VIEW)
| CK1 (06-36) (G69, Z55) |
2007-2007 |
01 |
|
