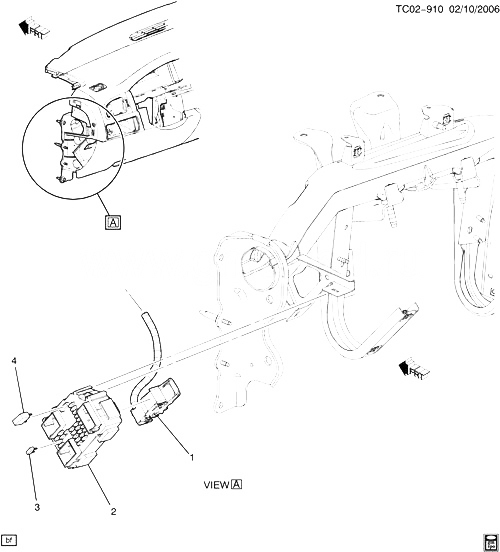

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2009 |
|
| 002 |
15925044 |
BLOCK, FUSE (INCLS 3, 4) |
CK1, 2 (06-36) |
2007-2007 |
01 |
| 003 |
12092075 |
FUSE, MINI (30A) (GREEN) (PART OF 2) (ACDelco #12092075)
|
2007-2009 |
02 |
|
| 003 |
12092079 |
FUSE, 10A, MINI, RED (PART OF 2)
|
2007-2009 |
05 |
|
| 003 |
12191645 |
FUSE, MINI, 2 AMP, GRAY (PART OF 2) |
|
2007-2009 |
01 |
| 003 |
88909754 |
FUSE, 15A, MINI, BLUE (PART OF 2) (ACDelco #ATM15-25)
|
2007-2009 |
10 |
|
| 003 |
88909755 |
FUSE, 20A, MINI, YELLOW (PART OF 2) (ACDelco #ATM20-25)
|
2007-2009 |
03 |
|
| 003 |
88909756 |
FUSE, 25A, MINI, CLEAR (PART OF 2) (ACDelco #ATM25-25)
|
2007-2009 |
01 |
|
| 004 |
12182117 |
BREAKER, CIRC (PART OF 2) (30 AMP MINI NON-CYCLING) |
CK107 (06) (PPV, 5W4) |
2007-2007 |
02 |
| 004 |
15319848 |
BREAKER, CIRC (PART OF 2) (50 AMP MAXI TYPE I) |
CK107 (06) (PPV, 5W4) |
2007-2009 |
03 |
| 004 |
19116527 |
BREAKER, CIRC (PART OF 2) (25 AMP MANUAL RESET) |
CK1 (06-36) |
2007-2009 |
01 |
