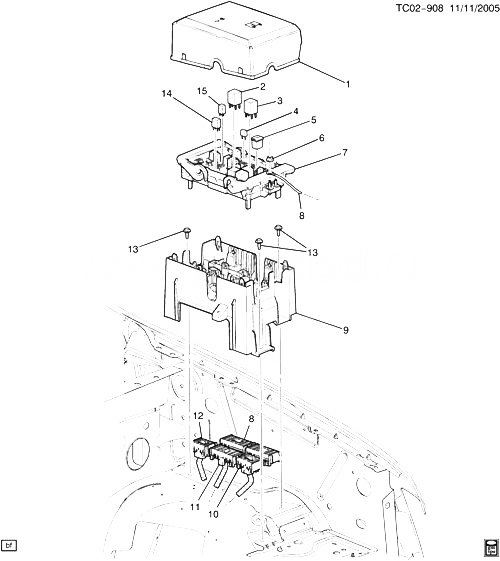

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25815385 |
COVER, ENG WRG HARN J/BLK
| CK1 (06-36) |
2007-2007 |
01 |
|
| 002 |
12177236 |
RELAY, FAN CONT (PART OF 7) (GRAY) (SPST 280 MINI) (4-WAY) (SQUARE CASE) (W/RESISTOR) (LABELED 12177236) (9.778) (ACDelco #D7065C)
| CK1 |
2007-2009 |
02 |
|
| 003 |
15328865 |
RELAY, FAN CONT (PART OF 7) (5 TERMINAL) (BLACK) (SPDT 280 MINI.) (DAESUNG) (ACDelco #D1724A) |
CK1, 2 (06-36) |
2007-2009 |
01 |
| 004 |
12092075 |
FUSE, MINI (30A) (GREEN) (PART OF 7) (ACDelco #12092075)
|
2007-2009 |
06 |
|
| 004 |
12191645 |
FUSE, MINI, 2 AMP, GRAY (PART OF 7) |
|
2007-2009 |
01 |
| 004 |
88909753 |
FUSE, MINI, 10 AMP, RED (PART OF 7) |
|
2007-2009 |
19 |
| 004 |
88909754 |
FUSE, 15A, MINI, BLUE (PART OF 7) (ACDelco #ATM15-25)
|
2007-2009 |
21 |
|
| 004 |
88909755 |
FUSE, 20A, MINI, YELLOW (PART OF 7) (ACDelco #ATM20-25)
|
2007-2009 |
07 |
|
| 004 |
88909756 |
FUSE, 25A, MINI, CLEAR (PART OF 7) (ACDelco #ATM25-25)
|
2007-2009 |
02 |
|
| 005 |
15209748 |
FUSE, 40AMP, LOW PROFILE J CASE, GREEN (PART OF 7)
|
2007-2009 |
06 |
|
| 005 |
15822417 |
FUSE, 30AMP, LOW PROFILE J CASE, PINK (PART OF 7)
|
2007-2009 |
03 |
|
| 005 |
19115640 |
FUSE, 60AMP, LOW PROFILE J CASE, YELLOW (PART OF 7)
|
2007-2009 |
04 |
|
| 006 |
11509226 |
ГАЙКА, HEX W/CON WA, M8X1.25, 7.5THK, 19 O.D., 9, ZN (CHAS RR WRG HARN J/BLK LEAD) |
|
2007-2009 |
AR |
| 007 |
15092625 |
БЛОК, ДВИГАТЕЛЯ WRG HARN JUNC (INCLS 2-5, 14, 15) (LABELED 15092625) (FOR 2ND DES SEE 15925042) |
CK1, 2 (06-36) (1ST DES) |
2007-2007 |
01 |
| 007 |
15925042 |
БЛОК, ДВИГАТЕЛЯ WRG HARN JUNC (INCLS 2-5, 14, 15) (LABELED 15925042) (FOR 1ST DES SEE 15092625) |
CK1, 2 (06-36) (2ND DES) |
2007-2007 |
01 |
| 008 |
|
HARNESS, CHAS WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ШАССИ FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2009 |
|
| 009 |
15853967 |
BRACKET, ENG WRG HARN FUSE BLK
| CK1, 2, 3 |
2007-2008 |
01 |
|
| 010 |
|
HARNESS, FWD LP WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ПЕРЕДНИЕ ФАРЫ FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2009 |
|
| 011 |
|
HARNESS, ENG WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ДВИГАТЕЛЬ FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2009 |
|
| 012 |
|
HARNESS, CHAS WRG (СМ. ГРУППУ 02.000 WIRING HARNESS/CHASIS FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2009 |
|
| 013 |
11561674 |
БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (ENG WRG HARN FUSE BLK BRKT)
|
2007-2009 |
03 |
|
| 014 |
|
RELAY, STRTR (PART OF 7) |
|
2007-2009 |
|
| 014 |
|
RELAY, IGN (PART OF 7) |
|
2007-2009 |
|
| 014 |
|
RELAY, PARK LP (PART OF 7) |
|
2007-2009 |
|
| 014 |
|
RELAY, HDLP LOW BEAM (PART OF 7) |
|
2007-2009 |
|
| 014 |
|
RELAY, PCM (PART OF 7) |
|
2007-2009 |
|
| 014 |
19115080 |
RELAY, STRTR (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688)
| CK1 (LU3) |
2007-2007 |
01 |
|
| 014 |
19115080 |
RELAY, STRTR (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688)
| CK1 (L76) |
2007-2008 |
01 |
|
| 014 |
19115080 |
RELAY, STRTR (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688)
| CK1 (L92) |
2007-2008 |
01 |
|
| 014 |
19115080 |
RELAY, STRTR (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688)
| CK1 (LC9) |
2007-2008 |
01 |
|
| 014 |
19115080 |
RELAY, STRTR (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688)
| CK1 (LH6) |
2007-2008 |
01 |
|
| 014 |
19115080 |
RELAY, STRTR (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688)
| CK1 (LMG) |
2007-2008 |
01 |
|
| 014 |
19115080 |
RELAY, STRTR (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688)
| CK1 (LY2) |
2007-2008 |
01 |
|
| 014 |
19115080 |
RELAY, STRTR (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688)
| CK1 (LY5) |
2007-2008 |
01 |
|
| 014 |
19115080 |
RELAY, PARK LP (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688)
| CK1, 2 (06-36) |
2007-2008 |
01 |
|
| 014 |
19115080 |
RELAY, HDLP LOW BEAM (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688)
| CK1, 2 (06-36) |
2007-2008 |
01 |
|
| 014 |
19115080 |
RELAY, PCM (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (ACDelco #15-50688)
| CK1, 2, 3 |
2007-2008 |
01 |
|
| 014 |
19115080 |
RELAY, R/WDO DEFG (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688)
| CK1, 2 (06-36) |
2007-2009 |
01 |
|
| 014 |
88988889 |
RELAY, PARK LP (PART OF 7) (9.277) (ACDelco #D1773C)
| CK1, 2 (LMM) |
2007-2008 |
01 |
|
| 015 |
|
RELAY, FOG LP (PART OF 7) |
|
2007-2009 |
|
| 015 |
88988889 |
RELAY, FOG LP (PART OF 7) (9.277) (ACDelco #D1773C)
| CK1, 2 (06-36) |
2007-2008 |
01 |
|
| 015 |
88988889 |
RELAY, FOG LP (PART OF 7) (9.277) (ACDelco #D1773C)
| CK1, 2 (LMM) |
2007-2008 |
01 |
|
| 015 |
88988889 |
RELAY, FOG LP (PART OF 7) (9.277) (ACDelco #D1773C)
| CK1, 2 (06-36) |
2007-2008 |
01 |
|
| 015 |
88988889 |
RELAY, F/PMP (PART OF 7) (9.277) (ACDelco #D1773C)
| CK1, 2 (06-36) |
2007-2008 |
01 |
|
| 015 |
88988889 |
RELAY, A/C CMPR (PART OF 7) (ACDelco #D1773C)
| CK1, 2 (06-36) |
2007-2009 |
01 |
|
