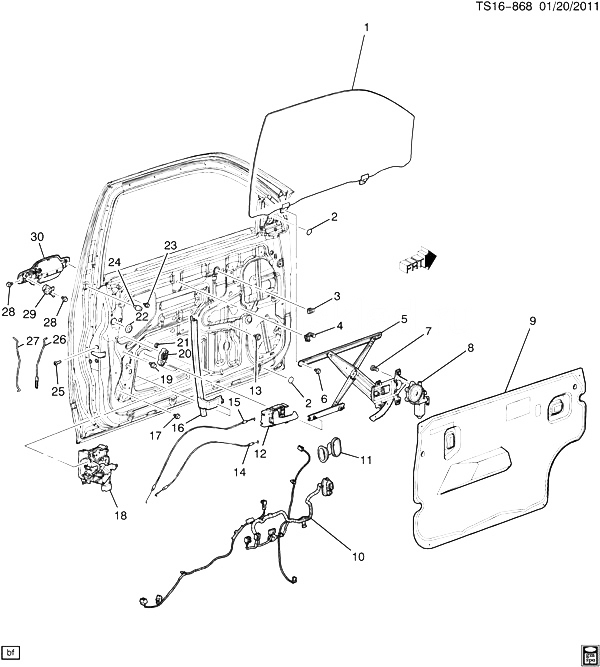

(TS16-868) 2011-2012 ST(43-53) ФУРНИТУРА ДВЕРИ/SIDE FRONT PART 2 (A31,AU3) CHEVROLET COLORADO EXT CAB (4WD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 97247738 WINDOW, FRT S/D (INCLS GUIDES) ST1 2011-2012 01
001 97247739 WINDOW, FRT S/D (INCLS GUIDES) ST1 2011-2012 01
002 SEAL, FRT S/D INR PNL HOLE 2011-2012
003 11570654 NUT, FRT S/D I/S HDL (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) (9.665) ST1 2011-2012 02
004 97321408 CLIP, FRT S/D I/S HDL ROD ST1 2011-2012 02
005 15922914 REGULATOR, FRT S/D WDO (INCLS 7, 8) (INCLS MOTOR) (ACDelco #15922914) ST1 (A31) 2011-2012 01
005 15922914 REGULATOR, FRT S/D WDO (INCLS 7, 8) (INCLS MOTOR) (16.260) (ACDelco #15922914) ST1 (A31) 2011-2012 01
005 15922915 REGULATOR, FRT S/D WDO (INCLS 7, 8) (INCLS MOTOR) (ACDelco #15922915) ST1 (A31) 2011-2012 01
005 15922915 REGULATOR, FRT S/D WDO (INCLS 7, 8) (INCLS MOTOR) (16.260) (ACDelco #15922915) ST1 (A31) 2011-2012 01
006 11518060 BOLT, HFH M6X1X10, THD 8.5, OD 14.2, 8.8, GMW14C-PT, HDR POINT (FRT S/D WDO) 2011-2012 04
007 10282678 BOLT, TORX HD, M6X1X12, 9THD, 10 O.D., 8.8, PO (PART OF 5) (14.691) 2011-2012 03
008 19167713 MOTOR, FRT S/D WDO REG (PART OF 5) (ACDelco #19167713) ST1 (A31) 2011-2012 01
008 19167712 MOTOR, FRT S/D WDO REG (PART OF 5) (ACDelco #19167712) ST1 (A31) 2011-2012 01
009 15127374 DEFLECTOR, FRT S/D WAT ST1 (A31) 2011-2012 01
009 15127375 DEFLECTOR, FRT S/D WAT ST1 (A31) 2011-2012 01
010 20806148 HARNESS, FRT S/D DR WRG (INCLS 11) ST1 (ASF, AU3, A31, YC3) 2011-2012 01
010 20806148 HARNESS, FRT S/D DR WRG (INCLS 11) ST1 (AU3, A31, YC3) (EXC ASF) 2011-2012 01
010 20806152 HARNESS, FRT S/D DR WRG (INCLS 11) ST1 (ASF, AU3, A31, YC3) 2011-2012 01
010 20806152 HARNESS, FRT S/D DR WRG (INCLS 11) ST1 (AU3, A31, YC3) (EXC ASF) 2011-2012 01
011 GROMMET, FRT S/D DR WRG HARN (PART OF 10) 2011-2012
012 15900025 HANDLE, FRT S/D I/S (CHROME) ST1 (27I) 2011-2012 01
012 15900026 HANDLE, FRT S/D I/S (CHROME) ST1 (27I) 2011-2012 01
013 11589231 BOLT -HFH, M6X1X13.5, 6.2 THD, 16 OD, 8.8 STL, GMW3359, M-PT (FRT S/D WDO REG) 2011-2012 04
014 CABLE, FRT S/D I/S HDL (PART OF 18) 2011-2012
015 CABLE, FRT S/D LKG (PART OF 18) 2011-2012
016 97248802 CHANNEL, FRT S/D WDO RR LWR ST1 2011-2012 01
016 97248803 CHANNEL, FRT S/D WDO RR LWR ST1 2011-2012 01
017 11518060 BOLT, HFH M6X1X10, THD 8.5, OD 14.2, 8.8, GMW14C-PT, HDR POINT (FRT S/D WDO RR CHAN) 2011-2012 02
018 15918138 LOCK, FRT S/D (INCLS 14, 15, 26, 27) (INCLS ACTUATOR) (W/2 RODS CABLES) ST1 (AU3) 2011-2012 01
018 15918137 LOCK, FRT S/D (INCLS 14, 15, 26, 27) (INCLS ACTUATOR) (W/RODS CABLES) ST1 (AU3, 27I) 2011-2012 01
019 11518060 BOLT, HFH M6X1X10, THD 8.5, OD 14.2, 8.8, GMW14C-PT, HDR POINT (FRT S/D LK ACTR) 2011-2012 02
020 10368336 SENSOR, AIRBAG SI IMP ST1 2011-2012 02
021 03530297 NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (FRT S/D WDO REG) 2011-2012 04
022 21110669 SEAL, FRT S/D INR PNL HOLE (35 MM DIA) (FITS HOLE 25MM) (ROUND) (12.179) ST1 2011-2012 02
023 11518060 BOLT, HFH M6X1X10, THD 8.5, OD 14.2, 8.8, GMW14C-PT, HDR POINT (FRT S/D O/S HDL) 2011-2012 04
024 97325176 BUMPER, FRT S/D ST1 2011-2012 02
025 11609720 SCREW - OVAL, M6X1X22, 17 THD, 12.25 OD, 9.8, GMW4205, ADHESIVE 6175M (FRT S/D LAT) 2011-2012 06
026 ROD, FRT S/D O/S HDL (PART OF 18) 2011-2012
027 ROD, FRT S/D LK CYL (PART OF 18) 2011-2012
028 11516421 BOLT, HFH, M6X1X10, 14.2 O.D., 9.8, 7114M (FRT S/D LK CYL) 2011-2012 04
029 CYLINDER, FRT S/D LK (SEE GROUP 16.000 LOCK CYLINDER/SIDE DOOR FOR DETAILED ILLUSTRATED VIEW) 2011-2012
030 25921378 HANDLE, FRT S/D O/S (BLUE) ST1 (43-53) (48U) 2011-2012 01
030 25921379 HANDLE, FRT S/D O/S (BLUE) ST1 (43-53) (48U) 2011-2012 01
030 25921386 HANDLE, FRT S/D O/S (BLUE) ST1 (43-53) (61U) 2011-2012 01
030 25921390 HANDLE, FRT S/D O/S (RED) ST1 (43-53) (74U) 2011-2012 01
030 25921391 HANDLE, FRT S/D O/S (RED) ST1 (43-53) (74U) 2011-2012 01
030 25992432 HANDLE, FRT S/D O/S (BLUE) ST1 (43-53) (GGU) 2011-2012 01
030 25992433 HANDLE, FRT S/D O/S (BLUE) ST1 (43-53) (GGU) 2011-2012 01
030 25992436 HANDLE, FRT S/D O/S (MERLOT) ST1 (43-53) (79U) 2011-2012 01
030 25992437 HANDLE, FRT S/D O/S (MERLOT) ST1 (43-53) (79U) 2011-2012 01
030 20829878 HANDLE, FRT S/D O/S (PAINT TO MATCH) ST1 2011-2012 01
030 20829879 HANDLE, FRT S/D O/S (PAINT TO MATCH) ST1 2011-2012 01
030 25921387 HANDLE, FRT S/D O/S (BLUE) ST1 (43-53) (61U) 2011-2012 01
