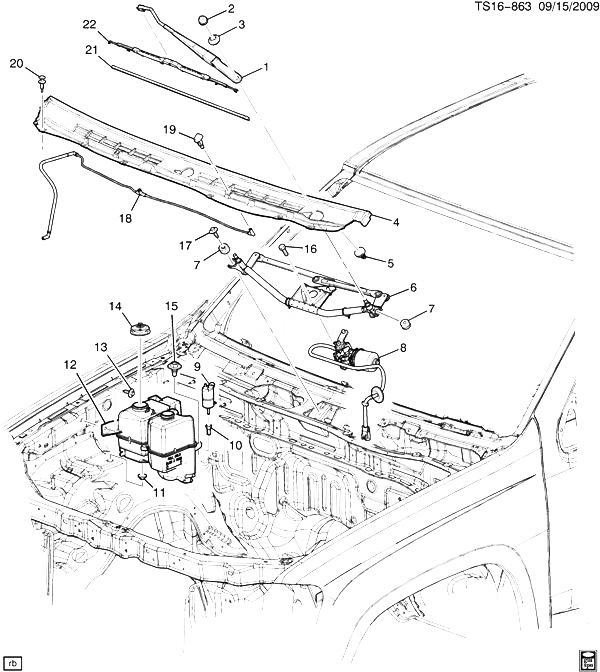

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
88958225 |
ARM, WSW |
ST1 |
2007-2012 |
01 |
| 001 |
88958227 |
ARM, WSW |
ST1 |
2007-2012 |
01 |
| 002 |
15788727 |
CAP, WSW ARM NUT (PART OF 6) (10.147) |
ST1 |
2007-2012 |
02 |
| 003 |
11609634 |
NUT, HEX WASH, M10X1.25, 7MM THK, 20 WA OD, 9 STL, 7111M, CON SPR WA. (PART OF 6) |
|
2007-2012 |
02 |
| 004 |
20820072 |
PANEL, AIR INL GRL (INCLS HOSES AND NOZZLES) (INCLS 5, 18, 19) |
ST1 |
2007-2012 |
01 |
| 005 |
10174221 |
RETAINER, AIR INL GRL PNL (PART OF 4) (12.118) |
ST1 |
2007-2012 |
06 |
| 006 |
25809218 |
MODULE, WSW SYS (INCLS 2, 3, 7, 8, 16) |
ST1 |
2007-2012 |
01 |
| 007 |
|
INSULATOR, WSW TRANS SUPT (PART OF 6) |
|
2008-2012 |
|
| 008 |
88958223 |
MOTOR, WSW (PART OF 6) (INCLS 16) (ACDelco #88958223) |
ST1 |
2007-2012 |
01 |
| 009 |
25792626 |
PUMP KIT, WSWA W/SEAL (INCLS 10) |
ST1 |
2008-2012 |
01 |
| 010 |
12367271 |
GROMMET, WSWA PUMP (PART OF 9) (10.154) |
ST1 |
2007-2012 |
01 |
| 011 |
|
GROMMET, WSWA SOLV CNTNR |
|
2008-2012 |
|
| 012 |
25792616 |
CONTAINER, WSWA SOLV (W/COOL RCVY RSVR) (INTEGRATED COOLANT/WASHER CONTAINER) |
ST1 |
2007-2012 |
01 |
| 012 |
25792616 |
CONTAINER, WSWA SOLV (W/COOL RCVY RSVR) (INTEGRATED COOLANT/WASHER CONTAINER) (16.065) |
ST1 |
2007-2012 |
01 |
| 013 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (WSWA SOLV CNTNR) |
|
2007-2012 |
02 |
| 014 |
25731418 |
CAP, WSWA SOLV CNTNR (10.154) |
ST1 |
2007-2012 |
01 |
| 015 |
11515755 |
BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (WSWA SOLV CNTNR) (T/W 12345493 REPLCS 25534835) |
|
2007-2012 |
01 |
| 016 |
|
BOLT, WSW SYS MDL (PART OF 6, 8) |
|
2008-2012 |
|
| 017 |
11609681 |
BOLT, HEX W/FL WA, M6X1X25, 14 THD, 24 OD, GM6202M STEEL, GMW3200 (WSW SYS MDL) |
|
2007-2012 |
02 |
| 018 |
15173511 |
HOSE, WSWA NOZ (PART OF 4) |
ST1 |
2007-2012 |
02 |
| 019 |
15173510 |
NOZZLE, WSWA (PART OF 4) (SINGLE FAN SPRAY TYPE) |
ST1 |
2007-2012 |
02 |
| 020 |
15326410 |
RETAINER, AIR INL GRL PNL (4.75 MM) (PUSH-IN CHRISTMAS TREE TYPE) (14.683) |
ST1 |
2007-2012 |
06 |
| 021 |
88958222 |
WIPER, W/S (PART OF 22) |
ST1 |
2007-2012 |
01 |
| 021 |
88958224 |
WIPER, W/S (PART OF 22) |
ST1 |
2007-2012 |
01 |
| 022 |
88958226 |
BLADE, WSW (INCLS 21) |
ST1 |
2007-2012 |
01 |
| 022 |
88958228 |
BLADE, WSW (INCLS 21) |
ST1 |
2007-2012 |
01 |
