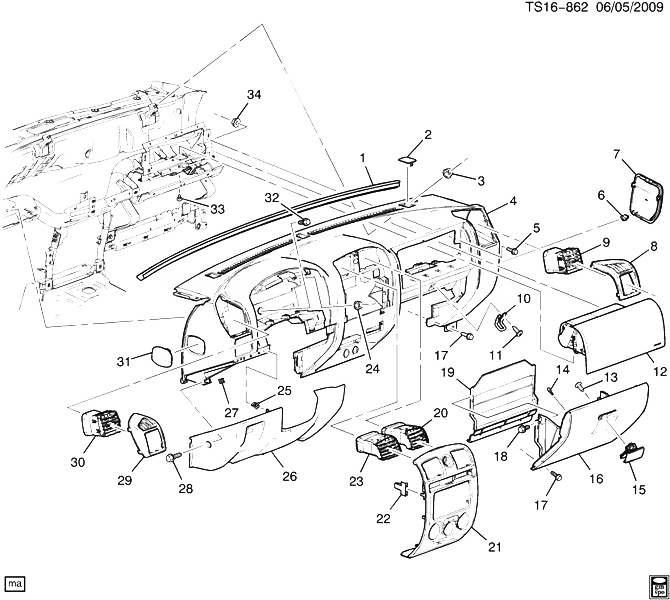

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25952207 |
SEAL, I/P OTR |
ST1 |
2009-2012 |
01 |
| 002 |
15832064 |
COVER, I/P UPR T/PNL (EBONY) |
ST1 (27I) |
2009-2012 |
03 |
| 003 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (I/P) |
|
2009-2012 |
03 |
| 004 |
20792559 |
PANEL, INST (INCLS 24, 27) (EBONY) |
ST1 |
2009-2012 |
01 |
| 005 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P AIRBAG HSG BTM BRKT) |
|
2009-2012 |
02 |
| 006 |
15594543 |
RETAINER, I/P OTR TR CVR (PART OF 7) (12.7 X 10.4) (9.665) |
ST1 |
2009-2012 |
01 |
| 007 |
15832074 |
COVER, I/P OTR TR (INCLS 6) (EBONY) |
ST1 (27I) |
2009-2012 |
01 |
| 008 |
15852754 |
BEZEL, I/P OTR AIR OTLT (SILVER) |
ST1 (27I) |
2009-2012 |
01 |
| 009 |
15852756 |
GRILLE, I/P OTR AIR OTLT (W/CHROME INSERT.IF REPLACING PART IN VEHICLE W/O GRILLES W/CHROME, MUST ALSO REPLACE OTHER GRILLES W/PNS 15852752, 53 57) |
ST1 |
2009-2012 |
01 |
| 010 |
15171370 |
STRIKER, I/P COMPT DR LK |
ST1 |
2009-2012 |
01 |
| 011 |
11609465 |
BOLT, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (I/P COMPT DR LK STKR) (8.977) |
|
2009-2012 |
02 |
| 012 |
15896237 |
AIRBAG, I/P (EBONY) |
ST1 (27I) |
2009-2012 |
01 |
| 013 |
11609465 |
BOLT, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (I/P CARR BRKT) (8.977) |
|
2009-2012 |
02 |
| 014 |
|
BUMPER, I/P COMPT DR (PART OF 16) |
|
2009-2012 |
|
| 015 |
10391626 |
LATCH, I/P COMPT DR (PART OF 16) (EBONY) |
ST1 (27I) |
2009-2012 |
01 |
| 016 |
15931598 |
DOOR, I/P COMPT (INCLS 14, 15, 19) (EBONY) (W/O LOCK) |
ST1 (27I) |
2009-2012 |
01 |
| 017 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P COMPT) |
|
2009-2012 |
05 |
| 018 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P COMPT DR) |
|
2009-2012 |
04 |
| 019 |
|
PANEL, I/P COMPT DR INR (PART OF 16) |
|
2009-2012 |
|
| 020 |
25847750 |
GRILLE, I/P CTR AIR OTLT (W/CHROME INSERT.IF REPLACING PART IN VEHICLE W/O GRILLES W/CHROME, MUST ALSO REPLACE OTHER GRILLES W/PNS 15852752, 56 57) |
ST1 |
2009-2012 |
01 |
| 021 |
15852748 |
PLATE, I/P ACSRY TR (INCLS 22) (SILVER) |
ST1 (27I) |
2009-2012 |
01 |
| 022 |
|
CLIP, I/P ACSRY CTR TR PLT (PART OF 21) |
|
2009-2012 |
|
| 023 |
25847749 |
GRILLE, I/P CTR AIR OTLT (W/CHROME INSERT.IF REPLACING PART IN VEHICLE W/O GRILLES W/CHROME, MUST ALSO REPLACE OTHER GRILLES W/PNS 15852753, 56 57) |
ST1 |
2009-2012 |
01 |
| 024 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 4) (10.701) |
|
2009-2012 |
06 |
| 025 |
11609726 |
CLIP, I/P DRVR KNEE BOLS (PART OF 26) (14 X 22.35 X 2.5) (14.731) |
ST1 |
2009-2012 |
01 |
| 026 |
15893757 |
PANEL, I/P DRVR KNEE BOLS (INCLS 25) (EBONY) |
ST1 (27I) |
2009-2012 |
01 |
| 027 |
11516993 |
NUT, M4.2X1.41 (PART OF 4) |
|
2009-2012 |
03 |
| 028 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (I/P) |
|
2009-2012 |
01 |
| 029 |
15852755 |
BEZEL, I/P OTR AIR OTLT (SILVER) |
ST1 (27I) |
2009-2012 |
01 |
| 030 |
15852757 |
GRILLE, I/P OTR AIR OTLT (W/CHROME INSERT.IF REPLACING PART IN VEHICLE W/O GRILLES W/CHROME, MUST ALSO REPLACE OTHER GRILLES W/PNS 15852752, 53 56) |
ST1 |
2009-2012 |
01 |
| 031 |
15832075 |
COVER, I/P OTR TR (EBONY) |
ST1 (27I) |
2009-2012 |
01 |
| 032 |
11561674 |
BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (I/P COMPT BZL) |
|
2009-2012 |
01 |
| 033 |
11515704 |
BOLT, I/P AIRBAG (M6X1X16, 13 THD) (8.900) |
ST1 |
2009-2012 |
02 |
| 034 |
11514517 |
NUT, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (I/P AIRBAG) |
|
2009-2012 |
02 |
