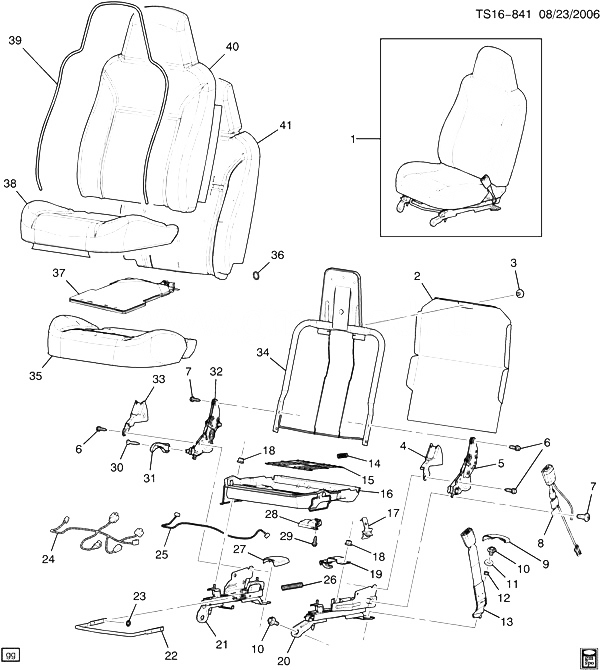

(TS16-841) 2006-2012 ST(43-53) СИДЕНЬЕ ПАССАЖИРА/SPLIT BENCH J TRIMS(AM6) CHEVROLET COLORADO EXT CAB (4WD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20816049 SEAT, PASS (INCLS 2-41) (CASHMERE) ST1 (53) (AL0, AM6, YC3, 31J) 2011-2012 01
001 20879178 SEAT, PASS (INCLS 2-41) (CASHMERE) ST1 (53) (AM6, YC3, 31J) (EXC AL0) 2011-2012 01
001 20981546 SEAT, PASS (INCLS 2-41) (EBONY) ST1 (53) (AM6, YC3, 19J) (EXC AL0) 2012-2012 01
001 20981534 SEAT, PASS (INCLS 2-41) (EBONY) ST1 (53) (AL0, AM6, YC3, 19J) 2012-2012 01
002 89041455 PANEL, P/SEAT BK FIN ST1 (AM6, YC3, 19J, 31J) 2006-2012 01
003 15252127 RETAINER, P/SEAT BK FIN PNL (PUSH PIN FOR SOFTBOARD PANEL TO BACK FRAME) (16.670) ST1 2006-2012 01
004 19121875 COVER, P/SEAT RECL FIN (CASHMERE) (INBOARD) (MANUAL) ST1 (31I) 2006-2012 01
004 89039153 COVER, P/SEAT RECL FIN (EBONY) (INBOARD) (MANUAL) ST1 (19I) 2006-2012 01
005 19257279 RECLINER, P/SEAT INR ST1 (43-53) (AM6, YC3, 19J, 31J) (EXC AL0) 2010-2012 01
006 88895203 BOLT, P/SEAT (TO RISER) (M8X1.25X30MM) (11.561) ST1 2006-2012 04
007 BOLT, P/SEAT BELT (BKL SI) (PART OF 8) 2006-2012
008 19258613 BELT KIT, P/SEAT (BKL SI) (INCLS 7) (EBONY) ST1 (03-43-53) (AM6) 2006-2012 01
009 15264931 COVER, P/SEAT INR ADJR FIN (EBONY) (W/SNAP FEATURE) ST1 (53) (AJ2, AM6) 2008-2012 01
010 11519940 BOLT, HEX W/CON WA, M12X1.75X34.5, 28 OD, 6202M, 4345M, TAP, TR-PT (F/SEAT) 2006-2012 08
011 89042557 SPACER, P/SEAT ST1 (AM6) 2006-2012 01
012 19121871 GROMMET, P/SEAT BELT ST1 (03-43-53) 2006-2012 01
013 89022977 BELT KIT, F/SEAT CTR (BKL SI) (EBONY) ST1 2006-2012 01
014 15692668 SPRING, P/SEAT CUSH PAD SUPT ST1 2006-2012 04
015 89027021 SPRING, P/SEAT CUSH PAD SUPT WIRE ST1 2006-2012 01
016 10388124 FRAME, P/SEAT CUSH (MANUAL) (W/O 3 HOLES FOR HARN. PUSH PINS, CLIP CONNECTOR) ST1 (AM6) 2006-2012 01
016 25971450 FRAME, P/SEAT CUSH (W/3 HOLES FOR HARNESS PUSH PINS) ST1 (AM6, 19J, 31J) 2006-2012 01
017 15254765 BRACKET, P/SEAT AIRBAG SUPPRESSION MDL ST1 2006-2012 01
018 11609746 NUT, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (P/SEAT ADJR) 2006-2012 02
019 19121283 SENSOR, F/SEAT HORIZ ADJR POSN (INCLUDES BRACKET) (MANUAL SEATS) ST1 (EXC AG1, AG2) 2006-2012 02
020 25885647 ADJUSTER, P/SEAT INR (MANUAL, 2-WAY, I/B, W/O ISO-FIX) ST1 2006-2012 01
021 89041575 ADJUSTER, P/SEAT OTR (3-WAY) ST1 (AM6, AR9) 2006-2012 01
022 20984563 BAR, P/SEAT INR OTR ADJR TIE ST1 2006-2012 01
023 89026246 NUT, F/SEAT BK ASST STRP ST1 2006-2012 AR
024 19257289 HARNESS, P/SEAT ADJR WRG ST1 (43-53) (AM6, YC3, 19J, 31J) (EXC AL0) 2011-2012 01
025 89042785 CABLE, P/SEAT RECL ACTR ST1 2006-2012 01
026 89041466 SPRING, P/SEAT ADJR RTN ST1 2006-2012 01
027 15264930 COVER, P/SEAT OTR ADJR FIN (EBONY) ST1 (43-53) (AM6, AR9, B30) (EXC AG2) 2007-2012 01
028 19122003 MODULE KIT, AIRBAG FRT PASS PRESENCE (W/ SEN) (INCLS 35, 37) (W/ PAD) (MANUAL) ST1 (03-43-53) 2006-2012 01
029 11571250 BOLT, P/SEAT AIRBAG SUPPRESSION MDL (M4.2X1.41X15.7, 11 OD) ST1 2011-2012 01
030 15208539 BOLT, P/SEAT RECL HDL (M4.2X1.4X20) (HANDLE BOLTS) (16.715) ST1 2006-2012 AR
031 22759582 HANDLE, P/SEAT RECL (CASHMERE) (FRT SEAT MANUAL RECL HANDLE) ST1 2011-2012 01
031 22759581 HANDLE, P/SEAT RECL (EBONY) (FRT SEAT MANUAL RECL HANDLE) ST1 (AM6, YC3, 193, 19J) 2011-2012 01
032 89039103 RECLINER, P/SEAT OTR (NON-DUMP) ST1 (43-53) (AM6, YC3, 19J, 31J) 2006-2012 01
033 19121874 COVER, P/SEAT RECL FIN (CASHMERE) (OUTBOARD) ST1 (31I) 2006-2012 01
033 89039154 COVER, P/SEAT RECL FIN (EBONY) (OUTBOARD) (MANUAL) ST1 (19I) 2006-2012 01
034 19257995 FRAME, P/SEAT BK (40%) ST1 (03-43-53) (AM6, YC3, 19J, 31J) 2011-2012 01
035 PAD, P/SEAT CUSH (PART OF 28) 2006-2012
036 06616858 RING, HOG (3/4 C TYPE, SS, BLUNT POINT) (F/SEAT CUSH CVR HOG) 2006-2012 01
037 SENSOR, AIRBAG FRT PASS PRESENCE (PART OF 28) 2006-2012
038 19121949 COVER, P/SEAT CUSH (PEWTER/CASHMERE) ST1 (AM6, YC3, 31J) 2006-2012 01
038 19258332 COVER, P/SEAT CUSH (EBONY) ST1 (43-53) (AM6, YC3, 19J) 2012-2012 01
039 89041462 WIRE, P/SEAT BK PAD ST1 2006-2012 01
040 19257290 COVER, P/SEAT BK (CASHMERE) ST1 (03-53) (AM6, YC3, 31J) 2011-2012 01
040 19258330 COVER, P/SEAT BK (EBONY) ST1 (53) (AM6, YC3, 19J) 2012-2012 01
041 19257292 PAD, P/SEAT BK (W/INTEGRATED HEADREST) ST1 (AM6, YC3, 19J, 31J) 2011-2012 01
