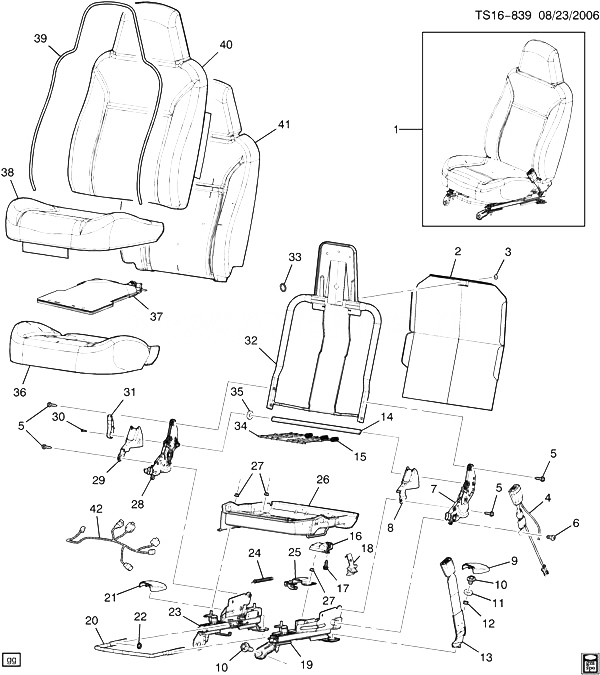

(TS16-839) 2010-2012 ST(53) СИДЕНЬЕ ПАССАЖИРА/SPLIT BENCH W TRIMS(AM6,AJ2) CHEVROLET COLORADO EXT CAB (4WD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20816046 SEAT, PASS (INCLS 2-42) (PEWTER) ST1 (03-53) (AL0, AM6, YC3, 92W) 2011-2012 01
001 20879175 SEAT, PASS (INCLS 2-42) (PEWTER) ST1 (03-53) (AM6, YC3, 92W) (EXC AL0) 2011-2012 01
002 89041455 PANEL, P/SEAT BK FIN ST1 (03-53) (AM6, YC3, 92W) 2006-2012 01
002 89041455 PANEL, P/SEAT BK FIN ST1 (03-53) (AM6, YC1, 92W) 2007-2012 01
003 15252127 RETAINER, P/SEAT BK FIN PNL (PUSH PIN FOR SOFTBOARD PANEL TO BACK FRAME) (16.670) ST1 2006-2012 01
004 19258613 BELT KIT, P/SEAT (BKL SI) (INCLS 6) (EBONY) ST1 (03-43-53) (AM6) 2006-2012 01
005 88895203 BOLT, P/SEAT (TO RISER) (M8X1.25X30MM) (11.561) ST1 2006-2012 04
006 BOLT, P/SEAT BELT (BKL SI) (PART OF 4) 2010-2012
007 89041569 LATCH, P/SEAT BK INR (I/B) (16.682) ST1 (03-53) (AM6, YC3, 92W) 2009-2012 01
008 89042776 COVER, P/SEAT RECL FIN (PEWTER) (INBOARD) ST1 (03-53) (92W) 2006-2012 01
009 15264931 COVER, P/SEAT INR ADJR FIN (EBONY) (W/SNAP FEATURE) ST1 (53) (AJ2, AM6) 2008-2012 01
010 11609756 BOLT M12X1.75X35 (F/SEAT) 2006-2012 08
011 89042557 SPACER, P/SEAT ST1 (AM6) 2006-2012 01
012 19121871 GROMMET, P/SEAT BELT ST1 (03-43-53) 2006-2012 01
013 89022977 BELT KIT, F/SEAT CTR (BKL SI) (EBONY) ST1 2006-2012 01
014 12377742 ROD, P/SEAT ADJR LAT (16.720) ST1 (03-53) 2011-2012 01
015 89027021 SPRING, P/SEAT CUSH PAD SUPT WIRE ST1 2006-2012 01
016 19122003 MODULE KIT, AIRBAG FRT PASS PRESENCE (W/ SEN) (INCLS 36, 37) (W/ PAD) (MANUAL) ST1 (03-43-53) 2006-2012 01
017 11571250 BOLT, P/SEAT AIRBAG SUPPRESSION MDL (M4.2X1.41X15.7, 11 OD) ST1 2011-2012 01
018 15254765 BRACKET, P/SEAT AIRBAG SUPPRESSION MDL ST1 2006-2012 01
019 25885647 ADJUSTER, P/SEAT INR (MANUAL, 2-WAY, I/B, W/O ISO-FIX) ST1 2006-2012 01
020 20984563 BAR, P/SEAT INR OTR ADJR TIE ST1 2006-2012 01
021 15264930 COVER, P/SEAT OTR ADJR FIN (EBONY) ST1 (43-53) (AM6, AR9, B30) (EXC AG2) 2007-2012 01
022 89026246 NUT, F/SEAT BK ASST STRP ST1 2006-2012 AR
023 89041575 ADJUSTER, P/SEAT OTR (3-WAY) ST1 (AM6, AR9) 2006-2012 01
024 89041466 SPRING, P/SEAT ADJR RTN ST1 2006-2012 01
025 19121283 SENSOR, F/SEAT HORIZ ADJR POSN (INCLUDES BRACKET) (MANUAL SEATS) ST1 (EXC AG1, AG2) 2006-2012 02
026 10388124 FRAME, P/SEAT CUSH (MANUAL) (W/O 3 HOLES FOR HARN. PUSH PINS, CLIP CONNECTOR) ST1 (AM6) 2006-2012 01
027 11609746 NUT, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (P/SEAT ADJR) 2006-2012 04
028 89041568 LATCH, P/SEAT BK OTR (O/B) (16.682) ST1 (03-53) (AM6, YC3, 92W) 2009-2012 01
029 89042774 COVER, P/SEAT RECL FIN (PEWTER) (INBOARD) ST1 (03-53) (AM6, 92I) 2006-2012 01
030 15208539 BOLT, P/SEAT RECL HDL (M4.2X1.4X20) (HANDLE BOLTS) (16.715) ST1 2006-2012 AR
031 12377766 HANDLE, P/SEAT BK LAT REL (PEWTER) ST1 (03-53) (AM6, YC3, 92W) 2010-2012 01
032 19257995 FRAME, P/SEAT BK (40%) ST1 (03-53) (AM6, YC3, 92W) 2011-2012 01
033 89046281 RING, P/SEAT CUSH PAD HOG (15.035) ST1 2006-2012 AR
034 89027021 SPRING, P/SEAT CUSH PAD SUPT WIRE ST1 2006-2012 01
035 88938665 WASHER, P/SEAT BK LAT ST1 (03-53) 2011-2012 AR
036 PAD, P/SEAT CUSH (PART OF 16) 2010-2012
037 SENSOR, AIRBAG FRT PASS PRESENCE (PART OF 16) 2010-2012
038 19122122 COVER, P/SEAT CUSH (PEWTER) ST1 (03-53) (AM6, YC3, 92W) 2011-2012 01
039 89041462 WIRE, P/SEAT BK PAD ST1 2006-2012 01
040 19257288 COVER, P/SEAT BK (PEWTER) ST1 (03-53) (AM6, YC3, 92W) 2011-2012 01
041 19257292 PAD, P/SEAT BK (W/INTEGRATED HEADREST) ST1 (03-53) (AM6, 92W) 2011-2012 01
042 19257289 HARNESS, P/SEAT ADJR WRG ST1 (03-53) (AM6, YC3, 92W) (EXC AL0) 2010-2012 01
042 19257338 HARNESS, P/SEAT ADJR WRG ST1 (AL0, YC3, 92W) 2011-2012 01
