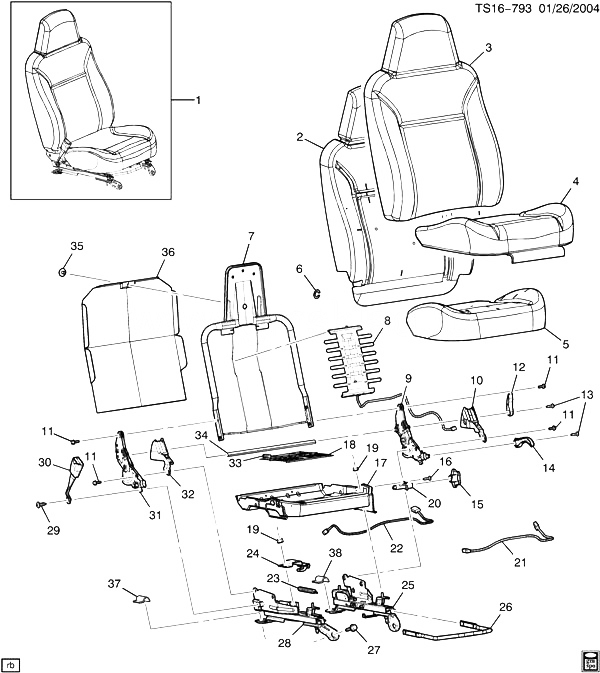

(TS16-793) 2005-2012 ST(53) СИДЕНЬЕ ВОДИТЕЛЯ/BUCKET (AR9,EXC (AG1)) CHEVROLET COLORADO EXT CAB (4WD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20815933 SEAT, DRVR (INCLS 2-38) (CASHMERE) ST1 (53) (LH9, AR9, YC3, 31J) 2011-2012 01
001 20815958 SEAT, DRVR (INCLS 2-38) (CASHMERE) ST1 (03-53) (LLR, LLV, AR9, YC3, 31J) 2011-2012 01
001 20981520 SEAT, DRVR (INCLS 2-38) (EBONY) ST1 (53) (LH9, AR9, YC3, 19J) 2012-2012 01
001 20981530 SEAT, DRVR (INCLS 2-38) (EBONY) ST1 (03-53) (LLR, LLV, AR9, YC3, 19J) 2012-2012 01
002 19257226 PAD, D/SEAT BK ST1 (43-53) (LH9, AR9, YC3, 19J, 31J) 2011-2012 01
002 19257336 PAD, D/SEAT BK ST1 (LLR, LLV, AR9, YC3, 19J, 31J) 2011-2012 01
003 19257198 COVER, D/SEAT BK (CASHMERE) ST1 (53) (LH9, LLR, LLV, AR9, YC3, 31J) 2011-2012 01
003 19258346 COVER, D/SEAT BK (EBONY) ST1 (53) (LH9, AR9, YC3, 19J) 2012-2012 01
003 19258346 COVER, D/SEAT BK (EBONY) ST1 (03-53) (LLR, LLV, M30, AR9, YC3, 19J) 2012-2012 01
004 19121903 COVER, D/SEAT CUSH (PEWTER/CASHMERE) ST1 (AR9, YC3, 31J) 2007-2012 01
004 19258414 COVER, D/SEAT CUSH (EBONY) ST1 (43-53) (LH9, AR9, YC3, 19J) 2012-2012 01
004 19258414 COVER, D/SEAT CUSH (EBONY) ST1 (03-43-53) (LLR, LLV, AR9, YC3, 19J) 2012-2012 01
005 89041470 PAD, D/SEAT CUSH (MANUAL) ST1 (AR9, YC3) 2006-2012 01
006 89046281 RING, F/SEAT CUSH CVR HOG (15.035) ST1 (03-43-53) 2004-2012 AR
007 19257995 FRAME, D/SEAT BK (40%) ST1 (43-53) (LH9, AR9, YC3, 19J, 31J) 2011-2012 01
007 19257995 FRAME, D/SEAT BK (40%) ST1 (LLR, LLV, AR9, YC3, 19J, 31J) 2011-2012 01
008 12479577 SUPPORT, D/SEAT LUMBAR (MANUAL) (PLASTIC LUMBAR-CABLE ROUTES FROM BOTTOM OF LUMBAR BASKET) ST1 (AR9, YC3) 2004-2012 01
009 89039095 RECLINER, D/SEAT OTR (RECLINE/FOLD FORWARD) ST1 (03-53) (AR9, YC3, 19J, 31J) 2006-2012 01
010 89039153 COVER, D/SEAT RECL FIN (EBONY) (INBOARD) (MANUAL) ST1 (19I) 2004-2012 01
010 89042776 COVER, D/SEAT RECL FIN (PEWTER) (INBOARD) ST1 (03-53) (92W) 2004-2012 01
011 12474329 BOLT, D/SEAT RECL (M8X1.25X35) (16.679) ST1 2004-2012 04
012 19151709 HANDLE, D/SEAT BK LAT REL (EBONY) ST1 (03-53) (AR9, 19J) 2011-2012 01
012 19121897 HANDLE, D/SEAT BK LAT REL (CASHMERE) ST1 (43-53) (AM6, AR9, 31J) 2011-2012 01
013 15208539 BOLT, D/SEAT RECL HDL (M4.2X1.4X20) (HANDLE BOLTS) (16.715) ST1 2004-2012 AR
014 22759578 HANDLE, D/SEAT RECL (EBONY) ST1 2011-2012 01
014 22759579 HANDLE, D/SEAT RECL (CASHMERE) (FRT SEAT MANUAL RECL HANDLE) ST1 2011-2012 01
015 22752450 KNOB, D/SEAT LUMBAR SUPT ACTR (EBONY) ST1 (43-53) (LH9, AR9, YC3, 19J) 2011-2012 01
015 22752450 KNOB, D/SEAT LUMBAR SUPT ACTR (EBONY) ST1 (03-43-53) (LLR, LLV, AR9, YC3, 19J) 2011-2012 01
016 BOLT, D/SEAT LUMBAR SUPT ACTR (PART OF 20) 2005-2012
017 25971447 FRAME, D/SEAT CUSH (W/3 HOLES FOR HARNESS PUSH PINS) ST1 (AR9) 2004-2012 01
018 89027021 SPRING, D/SEAT CUSH PAD SUPT WIRE ST1 2004-2012 01
019 11609746 NUT, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (D/SEAT) 2004-2012 02
020 12479578 ACTUATOR, D/SEAT LUMBAR SUPT (INCLS 16) (MANUAL) ST1 (AM6, AR9) 2004-2012 01
022 89042785 CABLE, D/SEAT RECL ACTR ST1 2004-2012 01
023 89041466 SPRING, D/SEAT ADJR RTN ST1 2004-2012 01
024 19121283 SENSOR, F/SEAT HORIZ ADJR POSN (INCLUDES BRACKET) (MANUAL SEATS) ST1 (EXC AG1, AG2) 2004-2012 02
025 10388137 ADJUSTER, D/SEAT OTR (MANUAL, 2-WAY) ST1 2004-2012 01
026 20984563 BAR, D/SEAT INR OTR ADJR TIE ST1 2004-2012 01
027 11519940 BOLT, HEX W/CON WA, M12X1.75X34.5, 28 OD, 6202M, 4345M, TAP, TR-PT (F/SEAT) 2004-2012 08
028 89041464 ADJUSTER, D/SEAT INR (MANUAL, 2-WAY) ST1 2004-2012 01
029 BOLT, D/SEAT BELT (BKL SI) (PART OF 30) 2005-2012
030 19258614 BELT KIT, D/SEAT (BKL SI) (INCLS 29) (EBONY) ST1 (03-43-53) (AR9) 2005-2012 01
031 19257229 RECLINER, D/SEAT INR (RECLINE/FOLD FORWARD) ST1 (53) (LH9, LLR, LLV, AR9, YC3, 19J, 31J) 2011-2012 01
032 89039154 COVER, D/SEAT RECL FIN (EBONY) (OUTBOARD) (MANUAL) ST1 (19I) 2004-2012 01
032 19121874 COVER, D/SEAT OTR RECL FIN (CASHMERE) (OUTBOARD) ST1 (31J) 2006-2012 01
033 15692668 SPRING, D/SEAT CUSH PAD SUPT ST1 2004-2012 04
034 12377742 ROD, D/SEAT ADJR LAT (16.720) ST1 (03-53) 2011-2012 01
035 15252127 RETAINER, D/SEAT BK FIN PNL (PUSH PIN FOR SOFTBOARD PANEL TO BACK FRAME) (16.670) ST1 2005-2012 01
036 89041455 PANEL, D/SEAT BK FIN ST1 (AR9, YC3, 19J, 31J) 2006-2012 01
037 15264927 COVER, D/SEAT INR ADJR FIN (MANUAL) ST1 (43-53) (AR9) (EXC AG1) 2004-2012 01
038 25906911 COVER, D/SEAT OTR ADJR FIN (EBONY) ST1 (AG1, AR9) 2004-2012 01
