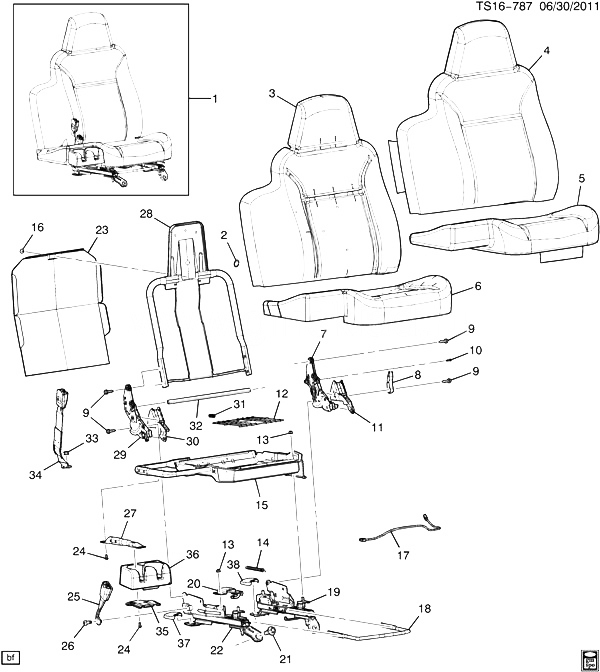

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20815944 |
SEAT, DRVR (INCLS 2-38) (PEWTER) |
ST1 (03-53) (M30, AM6, YC3, 92W) |
2011-2012 |
01 |
| 002 |
89046281 |
RING, D/SEAT CUSH PAD HOG (15.035) |
ST1 |
2009-2012 |
AR |
| 003 |
19257274 |
PAD, D/SEAT BK |
ST1 (03-53) (AM6, YC3, 92W) |
2011-2012 |
01 |
| 004 |
19257272 |
COVER, D/SEAT BK (PEWTER) |
ST1 (03-53) (AM6, YC3, 92W) |
2011-2012 |
01 |
| 005 |
89042784 |
COVER, D/SEAT CUSH (PEWTER) |
ST1 (03-53) (AM6, 92W) |
2010-2012 |
01 |
| 006 |
89041468 |
PAD, D/SEAT CUSH |
ST1 (LLR, LLV, AM6) |
2009-2012 |
01 |
| 007 |
89041556 |
LATCH, D/SEAT BK OTR (FOLD FORWARD/NON-RECLINE) (16.682) |
ST1 (03-53) (AM6, YC3, 92W) |
2009-2012 |
01 |
| 008 |
12377749 |
HANDLE, D/SEAT BK LAT REL (PEWTER) |
ST1 (03-53) (AM6, YC1, 92W) |
2008-2012 |
01 |
| 009 |
12474329 |
BOLT, D/SEAT RECL (M8X1.25X35) (16.679) |
ST1 |
2004-2012 |
04 |
| 010 |
15208539 |
BOLT, D/SEAT RECL HDL (M4.2X1.4X20) (HANDLE BOLTS) (16.715) |
ST1 |
2004-2012 |
AR |
| 011 |
89042776 |
COVER, D/SEAT RECL FIN (PEWTER) (INBOARD) |
ST1 (03-53) (92W) |
2004-2012 |
01 |
| 012 |
89027021 |
SPRING, D/SEAT CUSH PAD SUPT WIRE |
ST1 |
2004-2012 |
01 |
| 013 |
11609746 |
NUT, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (D/SEAT CUSH FRM) |
|
2004-2012 |
06 |
| 014 |
89041466 |
SPRING, D/SEAT ADJR RTN |
ST1 |
2004-2012 |
01 |
| 015 |
89041508 |
FRAME, D/SEAT CUSH |
ST1 (AM6) |
2005-2012 |
01 |
| 016 |
11609746 |
NUT, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (D/SEAT CUSH) |
|
2005-2012 |
01 |
| 017 |
|
HARNESS, D/SEAT POSN SEN WRG |
T |
2010-2012 |
|
| 018 |
20984563 |
BAR, D/SEAT INR OTR ADJR TIE |
ST1 |
2004-2012 |
01 |
| 019 |
10388137 |
ADJUSTER, D/SEAT OTR (MANUAL, 2-WAY) |
ST1 |
2004-2012 |
01 |
| 020 |
19121283 |
SENSOR, F/SEAT HORIZ ADJR POSN (INCLUDES BRACKET) (MANUAL SEATS) |
ST1 (EXC AG1, AG2) |
2004-2012 |
02 |
| 021 |
11519940 |
BOLT, HEX W/CON WA, M12X1.75X34.5, 28 OD, 6202M, 4345M, TAP, TR-PT (F/SEAT) |
|
2004-2012 |
08 |
| 022 |
89041464 |
ADJUSTER, D/SEAT INR (MANUAL, 2-WAY) |
ST1 |
2004-2012 |
01 |
| 023 |
89041455 |
PANEL, D/SEAT BK FIN |
ST1 (03-53-43) (AM6) |
2004-2012 |
01 |
| 024 |
19121873 |
BOLT, D/SEAT A/RST SUPT (M6X20) |
ST1 |
2006-2012 |
04 |
| 025 |
19258614 |
BELT KIT, D/SEAT (BKL SI) (INCLS 26) (EBONY) |
ST1 (03-43-53) (AM6) |
2005-2012 |
01 |
| 026 |
|
BOLT, D/SEAT BELT (BKL SI) (PART OF 25) |
|
2010-2012 |
|
| 027 |
89041509 |
SUPPORT, D/SEAT A/RST |
ST1 (AM6) |
2004-2012 |
01 |
| 028 |
19257995 |
FRAME, D/SEAT BK (40%) |
ST1 (03-53) (AM6, YC3, 92W) |
2011-2012 |
01 |
| 029 |
89041557 |
LATCH, D/SEAT BK INR (FOLD FORWARD/NON-RECLINE) (16.682) |
ST1 (03-53) (AM6, YC3, 92W) |
2009-2012 |
01 |
| 030 |
89042774 |
COVER, D/SEAT RECL FIN (PEWTER) (INBOARD) |
ST1 (03-53) (AM6, 92I) |
2004-2012 |
01 |
| 031 |
15692668 |
SPRING, D/SEAT CUSH PAD SUPT |
ST1 |
2004-2012 |
04 |
| 032 |
12377742 |
ROD, D/SEAT ADJR LAT (16.720) |
ST1 (03-53) |
2011-2012 |
01 |
| 033 |
19121871 |
GROMMET, D/SEAT BELT |
ST1 (03-43-53) |
2006-2012 |
01 |
| 034 |
19169132 |
BELT KIT, F/SEAT CTR (LAT SI) (EBONY) |
ST1 (03-43-53) |
2004-2012 |
01 |
| 035 |
89043247 |
BRACKET, D/SEAT CUP HLDR (11.419) |
ST1 |
2004-2012 |
01 |
| 036 |
89039574 |
HOLDER, F/SEAT A/RST CUP (PEWTER) (INCLS COVER BASE) (16.716) |
ST1 (AM6, 92I) |
2004-2012 |
01 |
| 037 |
15264930 |
COVER, D/SEAT OTR ADJR FIN (EBONY) |
ST1 (43-53) (AM6, AR9, B30) (EXC AG1, AG2) |
2007-2012 |
01 |
| 038 |
15264928 |
COVER, D/SEAT INR ADJR FIN (EBONY) (W/SNAP FEATURE) (MANUAL I/B) |
ST1 (53) (AJ2, AM6) |
2004-2012 |
01 |
