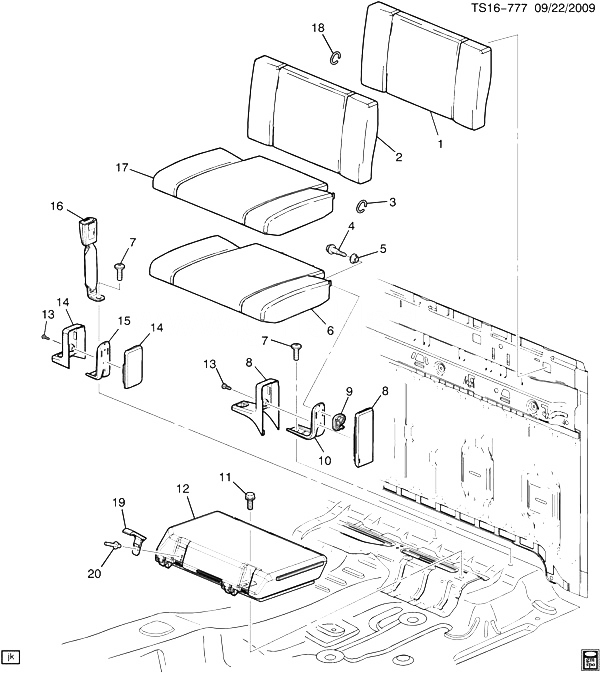

(TS16-777) 2004-2012 ST(53) ЗАДНЕЕ СИДЕНЬЕ/FOLDING STOWAGE COMPARTMENT(AJ2) CHEVROLET COLORADO EXT CAB (4WD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89027072 PANEL, R/SEAT BK (*KIT1) ST1 (53) (AJ2, YC3) 2009-2012 01
002 19122035 COVER, R/SEAT BK (CASHMERE) (INCLS LH/RH) (*KIT1) ST1 (53) (AJ2, YC3, 31J) 2006-2012 02
002 19122037 COVER, R/SEAT BK (CASHMERE) (*KIT1) ST1 (53) (AJ2, YC3, 313) 2007-2012 02
002 19151686 COVER, R/SEAT BK (EBONY) (*KIT1) ST1 (53) (AJ2, YC3, 193) 2007-2012 02
002 19148909 COVER, R/SEAT BK (PEWTER) (*KIT1) ST1 (53) (AJ2, YC3, 92W) 2009-2012 02
002 19258334 COVER, R/SEAT BK (EBONY) (*KIT1) ST1 (53) (AJ2, YC3, 19J) 2012-2012 01
003 89046281 RING, F/SEAT CUSH CVR HOG (15.035) ST1 (03-43-53) 2004-2012 AR
004 89041369 BOLT, R/SEAT (M6) (*KIT2) ST1 (53) (AJ2) 2004-2012 04
005 89041688 GROMMET, R/SEAT (*KIT2) ST1 (53) (AJ2) 2004-2012 02
006 89026511 PAD, R/SEAT CUSH (W/FRM) (*KIT2) ST1 (53) (AJ2, YC3) 2006-2012 01
006 89026510 PAD, R/SEAT CUSH (W/FRM) (*KIT2) ST1 (53) (AJ2, YC3) 2006-2012 01
007 11609756 BOLT M12X1.75X35 (R/SEAT) 2004-2012 04
008 89027093 COVER, R/SEAT HGE FIN (PEWTER) (O/B) (*KIT2) ST1 (53) (AJ2, YC3, 19J) 2007-2012 01
008 89027095 COVER, R/SEAT HGE FIN (EBONY) (O/B) (*KIT2) ST1 (53) (AJ2, YC3, 19J) 2007-2012 01
009 89041367 DETENT, R/SEAT LAT (*KIT2) ST1 (53) (AJ2) 2004-2012 01
009 89041368 DETENT, R/SEAT LAT (*KIT2) ST1 (53) (AJ2) 2004-2012 01
010 89041366 BRACKET, R/SEAT HGE (O/B) (*KIT2) ST1 (53) (AJ2) 2004-2012 01
010 89041687 BRACKET, R/SEAT HGE (O/B) (*KIT2) ST1 (53) (AJ2) 2004-2012 01
011 11609669 BOLT, HX HD FLT WA, M6X1.0X25.0, GM500M (9.8) STL, GMW3200 (F/FLR COMPT) 2004-2012 04
012 15296795 COMPARTMENT, F/FLR (INCLS 19, 20) (EBONY) (STOWAGE BOX BEHIND FRT SEAT) ST1 (53) (27I) 2009-2012 01
012 20914036 COMPARTMENT, F/FLR (INCLS 19, 20) (EBONY) ST1 (53) (27I) 2009-2012 01
013 19122025 BOLT, R/SEAT HGE FIN CVR (*KIT2) ST1 (53) (AJ2) 2006-2012 02
014 89027094 COVER, R/SEAT HGE FIN (PEWTER) (I/B) (*KIT2) ST1 (53) (AJ2, YC3, 19J) 2007-2012 01
014 89027096 COVER, R/SEAT HGE FIN (PEWTER) (I/B) (*KIT2) ST1 (53) (AJ2, YC3, 19J) 2007-2012 01
015 89041365 BRACKET, R/SEAT HGE (I/B) (*KIT2) ST1 (53) (AJ2) 2004-2012 01
015 89041686 BRACKET, R/SEAT HGE (I/B) (*KIT2) ST1 (53) (AJ2) 2004-2012 01
016 19209597 BELT KIT, R/SEAT CTR (BKL SI) (EBONY) (*KIT2) ST1 (53) (AJ2) 2004-2012 01
017 19122027 COVER, R/SEAT CUSH (CASHMERE) (*KIT2) ST1 (53) (AJ2, YC3, 31J) 2006-2012 01
017 19122032 COVER, R/SEAT CUSH (CASHMERE) (*KIT2) ST1 (53) (AJ2, YC3, 31J) 2006-2012 01
017 19151687 COVER, R/SEAT CUSH (EBONY) (*KIT2) ST1 (53) (AJ2, YC3, 193) 2007-2012 01
017 19151688 COVER, R/SEAT CUSH (EBONY) (*KIT2) ST1 (53) (AJ2, YC3, 193) 2007-2012 01
017 19122029 COVER, R/SEAT CUSH (CASHMERE) (*KIT2) ST1 (53) (AJ2, YC3, 313) 2007-2012 01
017 19122030 COVER, R/SEAT CUSH (CASHMERE) (*KIT2) ST1 (53) (AJ2, YC3, 313) 2007-2012 01
017 19148924 COVER, R/SEAT CUSH (PEWTER) (*KIT2) ST1 (53) (AJ2, YC1, 92W) 2009-2012 01
017 19148926 COVER, R/SEAT CUSH (PEWTER) (*KIT2) ST1 (53) (AJ2, YC1, 92W) 2009-2012 01
017 19258344 COVER, R/SEAT CUSH (EBONY) (*KIT2) ST1 (53) (AJ2, YC3, 19J) 2012-2012 01
017 19258336 COVER, R/SEAT CUSH (EBONY) (*KIT2) ST1 (53) (AJ2, YC3, 19J) 2012-2012 01
018 89046281 RING, ST CVR HOG (*KIT1) (15.035) ST1 2004-2012 AR
019 LATCH, F/FLR COMPT (PART OF 12) (SEE SERVICE BULLETIN #09-08-110-018) 2004-2012
020 RIVET, F/FLR COMPT (PART OF 12) 2004-2012
K01 15803454 CUSHION, R/SEAT BK (INCLS 1, 2, 18) (CASHMERE) ST1 (53) (AJ2, YC3, 313) 2007-2012 02
K01 15803457 CUSHION, R/SEAT BK (INCLS 1, 2, 18) (CASHMERE) ST1 (53) (AJ2, YC3, 31J) 2006-2012 02
K01 15839249 CUSHION, R/SEAT BK (INCLS 1, 2, 18) (PEWTER) ST1 (53) (AJ2, YC3, 92W) 2010-2012 02
K01 15803459 CUSHION, R/SEAT BK (INCLS 1, 2, 18) (EBONY) ST1 (53) (AJ2, YC3, 193) 2007-2012 02
K01 20981508 CUSHION, R/SEAT BK (INCLS 1, 2, 18) (EBONY) ST1 (53) (AJ2, YC3, 19J) 2012-2012 02
K02 25994847 CUSHION, R/SEAT (INCLS 4-6, 8-10, 13-17) (CASHMERE) ST1 (53) (AJ2, YC3, 31J) 2006-2012 01
K02 25994852 CUSHION, R/SEAT (INCLS 4-6, 8-10, 13-17) (PEWTER) ST1 (53) (AJ2, YC3, 92W) 2009-2012 01
K02 25994859 CUSHION, R/SEAT (INCLS 4-6, 8-10, 13-17) (EBONY) ST1 (53) (AJ2, YC3, 193) 2007-2012 01
K02 25994856 CUSHION, R/SEAT (INCLS 4-6, 8-10, 13-17) (EBONY) ST1 (53) (AJ2, YC3, 193) 2007-2012 01
K02 20981512 CUSHION, R/SEAT (INCLS 4-6, 8-10, 13-17) (EBONY) ST1 (53) (AJ2, YC3, 19J) 2012-2012 01
K02 20981514 CUSHION, R/SEAT (INCLS 4-6, 8-10, 13-17) (EBONY) ST1 (53) (AJ2, YC3, 19J) 2012-2012 01
K02 25994850 CUSHION, R/SEAT (INCLS 4-6, 8-10, 13-17) (CASHMERE) ST1 (53) (AJ2, YC3, 31J) 2006-2012 01
K02 25994854 CUSHION, R/SEAT (INCLS 4-6, 8-10, 13-17) (PEWTER) ST1 (53) (AJ2, YC3, 92W) 2009-2012 01
K02 25994854 CUSHION, R/SEAT (INCLS 4-6, 8-10, 13-17) (PEWTER) ST1 (53) (AJ2, YC1, 92W) 2006-2012 01
K02 25994857 CUSHION, R/SEAT (INCLS 4-6, 8-10, 13-17) (CASHMERE) ST1 (53) (AJ2, YC3, 313) 2007-2012 01
K02 25994870 CUSHION, R/SEAT (INCLS 4-6, 8-10, 13-17) (CASHMERE) ST1 (53) (AJ2, YC3, 313) 2007-2012 01
