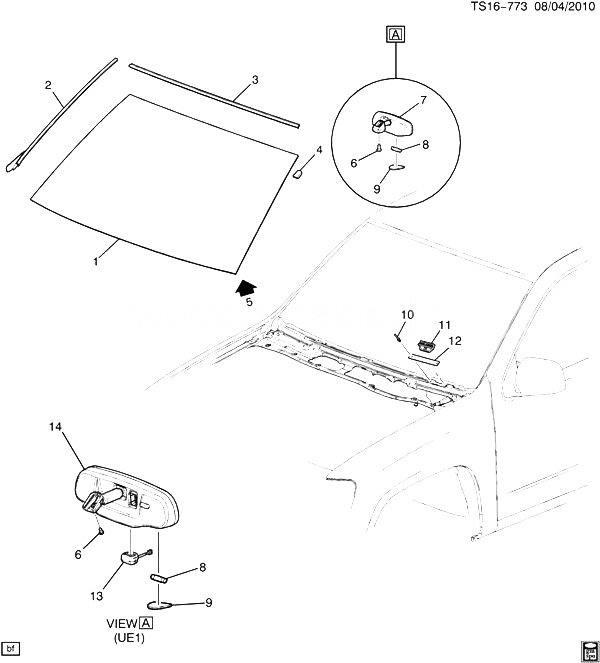

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15269975 |
WINDSHIELD, (INCLS 3, 4) (W/UPPER RVL MOLDING) (INCLS LWR FOAM) |
ST1 |
2004-2012 |
01 |
| 002 |
10395528 |
MOLDING, W/S RVL |
ST1 |
2004-2012 |
01 |
| 002 |
10395529 |
MOLDING, W/S RVL |
ST1 |
2004-2012 |
01 |
| 003 |
|
MOLDING, W/S UPR RVL (PART OF 1) |
|
2007-2012 |
|
| 004 |
|
BRACKET, I/S RR VIEW MIR (PART OF 1) |
|
2004-2012 |
|
| 005 |
|
ADHESIVE, W/S |
|
2004-2012 |
|
| 006 |
19207911 |
BOLT, I/S RR VIEW MIR (PART OF 7, 14) (BLACK) (M10X24X12.7) (10.186) |
ST1 |
2004-2012 |
01 |
| 007 |
15269044 |
MIRROR, I/S RR VIEW (INCLS 6, 8, 9) (LT SEN, COMPASS, O/S TEMP DISPLAY) |
ST1 (DF5) (EXC UE1) |
2008-2012 |
01 |
| 007 |
97325067 |
MIRROR, I/S RR VIEW (INCLS 6, 8, 9) |
ST1 (D31) (EXC UE1) |
2008-2012 |
01 |
| 008 |
09431809 |
BULB, 6CP TRADE #212-2 (PART OF 7, 14) (ACDelco #L212-2) |
|
2004-2012 |
02 |
| 009 |
|
LENS, C/LP (PART OF 7, 14) |
|
2004-2012 |
|
| 010 |
|
RIVET, VIN PLT |
|
2004-2012 |
|
| 011 |
15061964 |
SUPPORT, W/S |
ST1 |
2005-2012 |
02 |
| 012 |
|
PLATE, VIN (CONTACT APPROPRIATE AUTHORITY GOVERNING MOTOR VEHICLES FOR REPLACEMENT PROCESS) |
|
2004-2012 |
|
| 013 |
15264477 |
MICROPHONE, MOBILE TEL (PART OF 14) (GRAY) |
ST1 (27I) |
2009-2012 |
01 |
| 014 |
15269045 |
MIRROR, I/S RR VIEW (INCLS 6, 8, 9, 13) (LT SEN, COMPASS, O/S TEMP DISPLAY, ONSTAR, GPS) |
ST1 (DF5, UE1) (EXC UVC, UVF) |
2009-2012 |
01 |
| 014 |
22730183 |
MIRROR, I/S RR VIEW (INCLS 6, 8, 9, 13) (ONSTAR BUTTON IS RED CIRCLE W/WHITE CROSS) (10.185) |
ST1 (D31, UE1) |
2009-2012 |
01 |
