| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

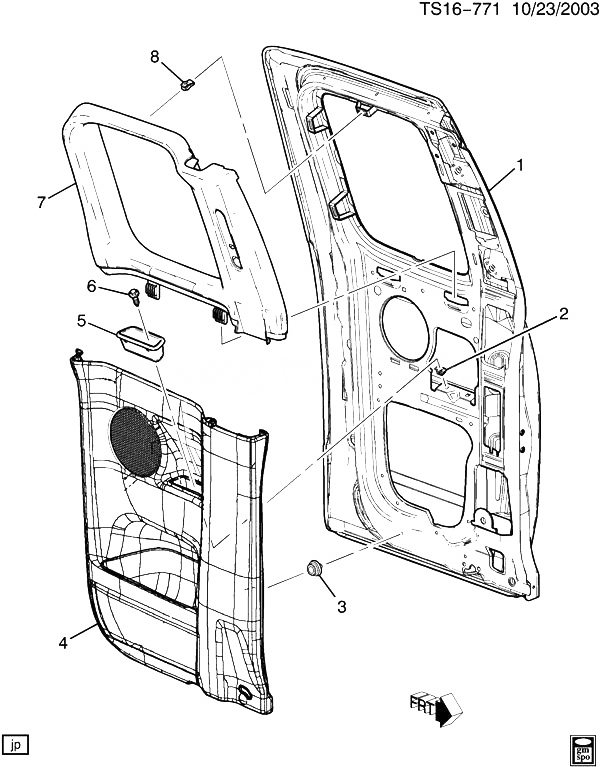

| 001 |
|
DOOR, RR SI (SEE GROUP 16.000 DOOR HARDWARE/SIDE REAR FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2012 |
|
| 002 |
11570654 |
NUT, RR S/D LWR T/PNL (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) (9.665) |
ST1 (53) |
2004-2012 |
04 |
| 003 |
97022017 |
CLIP, FRT S/D TR RET (PART OF 4) (16.7MM HIGH) (TYPE D) |
ST1 (53) |
2012-2012 |
04 |
| 004 |
15822577 |
PANEL, RR S/D LWR TR (INCLS 3, 5) (EBONY) |
ST1 (53) (27I) |
2007-2012 |
01 |
| 004 |
15822578 |
PANEL, RR S/D LWR TR (INCLS 3, 5) (EBONY) |
ST1 (53) (27I) |
2007-2012 |
01 |
| 005 |
|
PULL HANDLE (PART OF 4) |
|
2004-2012 |
|
| 006 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (RR S/D LWR T/PNL) |
|
2004-2012 |
04 |
| 007 |
15843199 |
PANEL, RR S/D UPR TR (INCLS 8) (EBONY) |
ST1 (53) (27I) |
2007-2012 |
01 |
| 007 |
15843203 |
PANEL, RR S/D UPR TR (INCLS 8) (EBONY) |
ST1 (53) (27I) |
2007-2012 |
01 |
| 008 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 7) |
|
2004-2012 |
10 |
