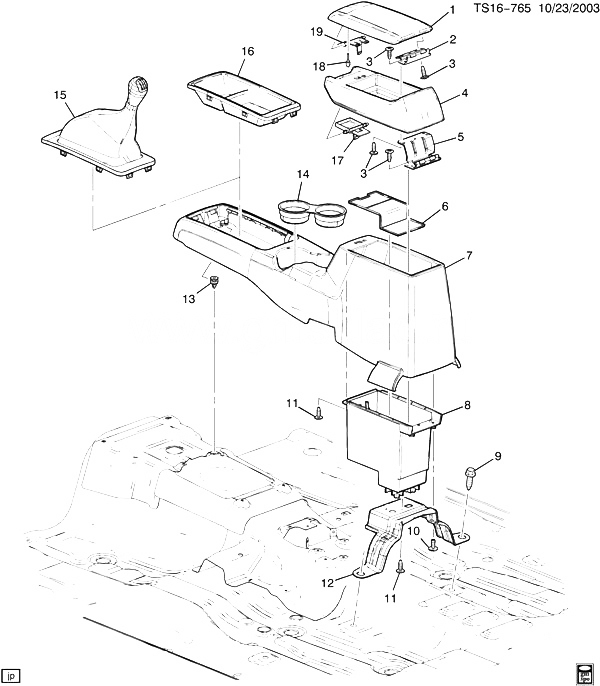

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
COVER, F/FLR CNSL (PART OF 4) |
|
2004-2012 |
|
| 002 |
|
HINGE, F/FLR CNSL COMPT DR (PART OF 4) |
|
2004-2012 |
|
| 003 |
11503684 |
SCREW, PAN HD, SELF TAP, M4.2-1.41X16, 6010M, CB (PART OF 4) |
|
2004-2012 |
08 |
| 004 |
19149643 |
ARMREST, F/FLR CNSL (INCLS 1-3, 5, 17-19) (EBONY) |
ST1 (27I) |
2007-2012 |
01 |
| 005 |
89040063 |
HINGE, F/FLR CNSL COMPT DR (PART OF 4) |
ST1 (MA5, M30, D06) |
2006-2012 |
01 |
| 006 |
19149640 |
MAT, F/FLR CNSL COMPT (EBONY) |
ST1 (27I) |
2007-2012 |
01 |
| 007 |
19149639 |
CONSOLE, F/FLR (INCLS 8, 10, 12, 13) (EBONY) |
ST1 (D06, MA5, M30, 27I) |
2007-2012 |
01 |
| 008 |
|
COMPARTMENT, F/FLR CNSL RR (PART OF 7) |
|
2004-2012 |
|
| 009 |
11519940 |
BOLT, HEX W/CON WA, M12X1.75X34.5, 28 OD, 6202M, 4345M, TAP, TR-PT (F/FLR) |
|
2004-2012 |
08 |
| 010 |
11609509 |
SCREW, LG RD WA HD, C/R, HI-LO, 4.2X1.41X13, 11.35-OD, B PT, 6010, GMW4205 (PART OF 7) |
|
2004-2012 |
02 |
| 011 |
11503684 |
SCREW, PAN HD, SELF TAP, M4.2-1.41X16, 6010M, CB (F/FLR CNSL R/CMPT DR HGE) |
|
2004-2012 |
02 |
| 012 |
|
BRACKET, F/FLR CNSL (PART OF 7) |
|
2004-2012 |
|
| 013 |
11571119 |
RETAINER, F/FLR CNSL (PART OF 7) (19.5 X 34.6 X 4.95) (2-PIECE) (INCLS BOTH PIECES) (14.683) |
ST1 (27I) |
2009-2012 |
02 |
| 014 |
19149642 |
LINER, F/FLR CNSL CUP HLDR (EBONY) |
ST1 (27I) |
2007-2012 |
01 |
| 015 |
|
LEVER, M/TRNS CONT (SEE GROUP 04.000 SHIFT CONTROLS/MANUAL TRANS FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2012 |
|
| 016 |
19149641 |
TRAY, F/FLR CNSL STOW (EBONY) |
ST1 (27I) |
2007-2012 |
01 |
| 017 |
19149645 |
LATCH, F/FLR CNSL COMPT DR (PART OF 4) (EBONY) (UPPER) |
ST1 (27I) |
2007-2012 |
01 |
| 018 |
|
BUMPER, F/FLR CNSL ASHTRAY DR (PART OF 4) |
|
2004-2012 |
|
| 019 |
19149644 |
LATCH, F/FLR CNSL COMPT DR (PART OF 4) (EBONY) (LOWER) |
ST1 (27I) |
2007-2012 |
01 |
