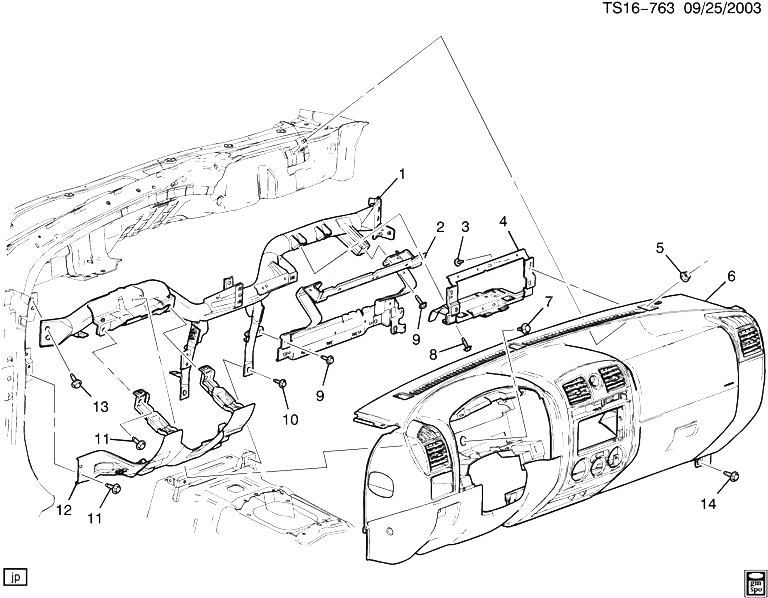

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15891789 |
REINFORCEMENT PKG, I/P (INCLS 2-4, 8, 9) |
ST1 |
2007-2012 |
01 |
| 002 |
|
REINFORCEMENT, I/P PASS KNEE BOLS (PART OF 1) |
|
2004-2012 |
|
| 003 |
11561674 |
BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (PART OF 1) |
|
2004-2012 |
04 |
| 004 |
10388054 |
BRACKET, I/P AIRBAG HSG BTM (PART OF 1) |
ST1 |
2004-2012 |
01 |
| 005 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (I/P) |
|
2006-2012 |
03 |
| 006 |
|
PANEL PKG, INST (SEE GROUP 16.000 INSTRUMENT PANEL RELATED PARTS, PART 1 FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2012 |
|
| 007 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (I/P COMPT BZL) |
|
2004-2012 |
01 |
| 008 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (PART OF 1) |
|
2004-2012 |
02 |
| 009 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (PART OF 1) |
|
2004-2012 |
03 |
| 010 |
11516932 |
BOLT, HEX HD, W/CON WA, M6X1X25, 9.8, 6138M (I/P) |
|
2004-2012 |
02 |
| 011 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (I/P DRVR KNEE BOLS DFL BRKT) |
|
2004-2012 |
06 |
| 012 |
15816434 |
BRACKET, I/P DRVR KNEE BOLS DFL |
ST1 |
2004-2012 |
01 |
| 013 |
11588723 |
BOLT, HFH, M8X1.25X25, 18 THD, 18 OD, 8.8 STL, GMW3359, M-PT (CROSS CAR BEAM TO COWL) |
|
2006-2012 |
04 |
| 014 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (I/P) |
|
2004-2012 |
01 |
