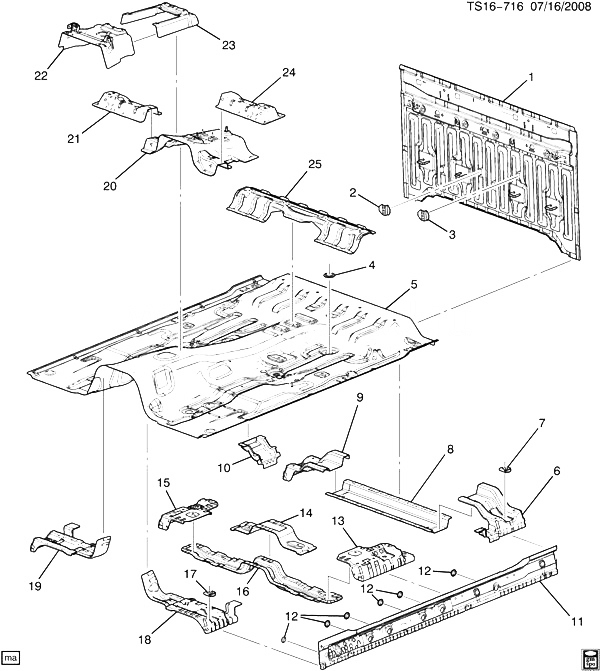

(TS16-716) 2004-2012 ST(53) ЛИСТОВОЙ МЕТАЛЛ/UNDERBODY BODY REAR CHEVROLET COLORADO EXT CAB (4WD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88980549 PANEL, BODY RR OTR (INCLS 2, 3) ST1 (53) (EXC AJ2) 2004-2012 01
001 88980563 PANEL, BODY RR OTR (INCLS 2, 3) ST1 (53) (AJ2) 2004-2012 01
002 97246391 BRACKET, R/END TR FIN PNL (PART OF 1) ST1 (03-53) 2004-2012 02
003 97246391 BRACKET, JK STOW (PART OF 1) (*KIT1) (16.575) ST1 (03-53) 2004-2012 01
004 15908858 PLUG, FLR PNL HOLE (38.1 MM) (12.980) ST1 (43-53) 2004-2012 05
005 88980564 PANEL, FLR (INCLS 20-22, 24, 25) ST1 (53) 2004-2012 01
006 15220116 BRACKET, BODY RR MT (INCLS 7) ST1 (53) 2004-2012 01
007 11588953 NUT, M14X2, STEEL GRADE 10, PLAIN (PART OF 6, 9) (8.923) 2004-2012 01
008 97247372 SILL, U/B RR CR ST1 (53) 2004-2012 01
009 15220115 BRACKET, BODY RR MT (INCLS 7) ST1 (53) 2004-2012 01
010 15105610 BRACE, RKR INR PNL ST1 2004-2012 02
011 88980566 PANEL, RKR INR ST1 (53) 2004-2012 01
011 15948052 PANEL, RKR INR ST1 (53) 2004-2012 01
012 21110669 PLUG, FLR PNL EXTN DRN HOLE (35 MM DIA) (FITS HOLE 25MM) (ROUND) (12.179) ST1 (03-43-53) 2004-2012 10
013 15111817 BRACKET, BODY CTR MT ST1 (53) 2004-2012 01
014 15937546 REINFORCEMENT, FLR PNL RR INR (F/SEAT) ST1 2004-2012 01
015 15111818 BRACKET, BODY CTR MT ST1 (53) 2004-2012 01
016 97247343 REINFORCEMENT, FLR PNL RR (F/SEAT) ST1 2004-2012 01
017 11588953 NUT, M14X2, STEEL GRADE 10, PLAIN (PART OF 18, 19) (8.923) 2004-2012 01
018 25887685 REINFORCEMENT, BODY FRT MT (INCLS 17) ST1 2004-2012 01
019 25887684 REINFORCEMENT, BODY FRT MT (INCLS 17) ST1 2004-2012 01
020 97247333 REINFORCEMENT, FLR PNL FRT INR (F/SEAT) (PART OF 5) ST1 2004-2012 01
021 10398464 REINFORCEMENT, FLR PNL FRT OTR (F/SEAT) (PART OF 5) ST1 2004-2012 01
022 25887539 REINFORCEMENT, FLR PNL (PART OF 5) (INCLS 23) ST1 2004-2012 01
023 25887542 BRACKET, F/FLR CNSL (PART OF 22) ST1 2008-2012 01
024 10398465 REINFORCEMENT, FLR PNL FRT OTR (F/SEAT) (PART OF 5) ST1 2004-2012 01
025 97251663 BRACKET, TOOL STOW (PART OF 5) ST1 (53) 2004-2012 01
K01 97246325 BRACKET, JK STOW (INCLS 3) ST1 (03-53) 2004-2012 02
