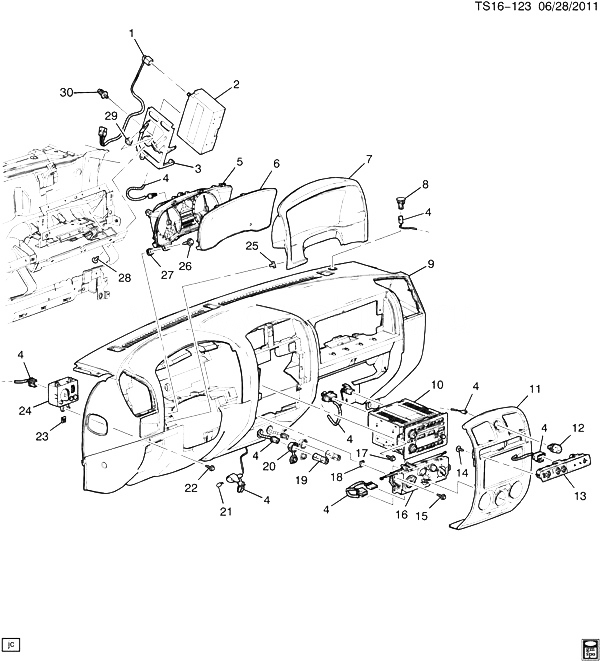

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20828336 |
CABLE, M/TEL VEH LOC ANT (9.675) (ACDelco #20828336) |
ST1 (UE1) |
2012-2012 |
01 |
| 001 |
20828336 |
CABLE, M/TEL VEH LOC ANT (9.675) (ACDelco #20828336) |
ST1 (UE1) |
2012-2012 |
01 |
| 002 |
22769961 |
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (ACDelco #22769961) (LABELED 22769961) |
ST1 (UE1, UPF) |
2012-2012 |
01 |
| 002 |
22834801 |
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (ACDelco #22834801) (LABELED 22834801) |
ST1 (UE1, UPF) |
2012-2012 |
01 |
| 002 |
22897572 |
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (LABELED 22897572) (ACDelco #22897572) (LABELED 22897572) |
ST1 (UE1, UPF) |
2012-2012 |
01 |
| 003 |
15107801 |
BRACKET, NAVN RCVR |
ST1 (UE1) |
2012-2012 |
01 |
| 004 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) (INCLS 21) |
|
2012-2012 |
|
| 005 |
20916833 |
CLUSTER, INST (INCLS 6, 27) (ACDelco #20916833) |
ST1 (LH9, M30, YC3, Z71, Z85) (EXC UC2, U19, WEA, XTR) |
2012-2012 |
01 |
| 005 |
20916836 |
CLUSTER, INST (INCLS 6, 27) (ACDelco #20916836) |
ST1 (MA5, YC3) (EXC CBN, U19) |
2012-2012 |
01 |
| 005 |
20916837 |
CLUSTER, INST (INCLS 6, 27) (ACDelco #20916837) |
ST1 (LLR, LLV, M30, YC3) (EXC CBN, U19, WEA, XTR) |
2012-2012 |
01 |
| 005 |
20916838 |
CLUSTER, INST (INCLS 6, 27) (ACDelco #20916838) |
ST1 (LH9, M30, YC3, ZQ8) (EXC U19) |
2012-2012 |
01 |
| 005 |
22790192 |
CLUSTER, INST (INCLS 6, 27) |
ST1 (LH9, M30, WEA, XTR, YC3, Z71, Z85) (EXC UC2, U19) |
2012-2012 |
01 |
| 005 |
22790193 |
CLUSTER, INST (INCLS 6, 27) |
ST1 (MA5, CBN, YC3) (EXC U19) |
2012-2012 |
01 |
| 005 |
22790194 |
CLUSTER, INST (INCLS 6, 27) |
ST1 (LLR, LLV, M30, CBN, WEA, XTR, YC3) (EXC U19) |
2012-2012 |
01 |
| 005 |
20916832 |
CLUSTER, INST (INCLS 6, 27) (ACDelco #20916832) |
ST1 (LH9, M30, U19, YC3, Z71, Z85) (EXPORT) |
2012-2012 |
01 |
| 005 |
20916834 |
CLUSTER, INST (INCLS 6, 27) (ACDelco #20916834) |
ST1 (MA5, U19, YC3) (EXPORT) |
2012-2012 |
01 |
| 005 |
20916835 |
CLUSTER, INST (INCLS 6, 27) (ACDelco #20916835) |
ST1 (LLR, LLV, M30, U19, YC3) (EXPORT) |
2012-2012 |
01 |
| 005 |
20916839 |
CLUSTER, INST (INCLS 6, 27) (ACDelco #20916839) |
ST1 (LH9, M30, U19, YC3, ZQ8) (EXPORT) |
2012-2012 |
01 |
| 006 |
|
LENS, INST CSTR (PART OF 5) |
|
2012-2012 |
|
| 007 |
25862313 |
PLATE, I/P CSTR TR (INCLS 25) (EBONY) |
ST1 |
2012-2012 |
01 |
| 008 |
15174892 |
SENSOR, HDLP AUTO CONT AMB LGT |
ST1 |
2012-2012 |
01 |
| 009 |
|
PANEL PKG, INST (SEE GROUP 16.000 INSTRUMENT PANEL RELATED PARTS, PART 1 FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2012 |
|
| 010 |
|
RADIO, AM/FM STEREO AUDIO DISC PLYR NAVN (SEE GROUP 09.000 AUDIO SYSTEM/RADIO CONTROLS FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2012 |
|
| 011 |
15852748 |
PLATE, I/P ACSRY TR (SILVER) |
ST1 (27I) |
2012-2012 |
01 |
| 012 |
15174891 |
SWITCH, HAZARD WRNG (ACDelco #15174891) |
ST1 |
2012-2012 |
01 |
| 013 |
22761880 |
SWITCH, TRANSFER CASE AIRBAG P/SEAT |
T1 (EXC U19) |
2012-2012 |
01 |
| 013 |
22761880 |
SWITCH, TRANSFER CASE AIRBAG P/SEAT (16.712) |
T1 (EXC U19) |
2012-2012 |
01 |
| 013 |
20872655 |
SWITCH, TRANSFER CASE AIRBAG P/SEAT |
T1 (U19) (EXC AL0) (EXPORT) |
2012-2012 |
01 |
| 013 |
20872655 |
SWITCH, TRANSFER CASE AIRBAG P/SEAT (16.712) |
T1 (U19) (EXC AL0) (EXPORT) |
2012-2012 |
01 |
| 014 |
11609465 |
BOLT, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (ACSRY SW PNL) (8.977) |
|
2012-2012 |
03 |
| 015 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (HTR A/C CONT) |
|
2012-2012 |
02 |
| 016 |
25841856 |
CONTROL, HTR A/C (SEE GROUP 09.000 A/C HEATER CONTROLS FOR DETAILED ILLUSTRATED VIEW) (INCLS KNOBS, NOT AVAILABLE SEPERATELY) (ACDelco #15-73870) |
ST1 (C60) |
2012-2012 |
01 |
| 017 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO) |
|
2012-2012 |
03 |
| 018 |
11516993 |
NUT, M4.2X1.41 (I/P CARR) |
|
2012-2012 |
03 |
| 019 |
25774623 |
RECEPTACLE, I/P ACSRY PWR (EBONY) (W/O COVER) (ACSRY PWR RECEPTACLE ASSEM LABELED 25774623) (12V) |
ST1 |
2012-2012 |
02 |
| 020 |
15187371 |
RETAINER, ACSRY PWR RCPT (EBONY) (INCLS COVER) |
ST1 |
2012-2012 |
02 |
| 021 |
09425542 |
BULB, LAMP #168 (PART OF 4) (ACDelco #L168) |
|
2012-2012 |
02 |
| 022 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (HDLP SW) |
|
2012-2012 |
01 |
| 023 |
11516993 |
NUT, M4.2X1.41 (HDLP SW) |
|
2012-2012 |
01 |
| 024 |
20983205 |
SWITCH, HDLP (ACDelco #20983205) |
ST1 (T96, UE1) |
2012-2012 |
01 |
| 024 |
20983206 |
SWITCH, HDLP (ACDelco #20983206) |
ST1 (UE1) (EXC T96) |
2012-2012 |
01 |
| 024 |
20983207 |
SWITCH, HDLP (ACDelco #20983207) |
ST1 (EXC T96, UE1) |
2012-2012 |
01 |
| 024 |
20983208 |
SWITCH, HDLP (ACDelco #20983208) |
ST1 (T96) (EXC UE1) |
2012-2012 |
01 |
| 025 |
|
CLIP, I/P CSTR TR PLT BZL (PART OF 7) |
|
2012-2012 |
|
| 026 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (INST CSTR T/PNL) |
|
2012-2012 |
04 |
| 027 |
|
NUT, I/P CARR BRKT (PART OF 5) |
|
2012-2012 |
|
| 028 |
11609989 |
BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (COMN INTERFACE MDL BRKT) |
|
2012-2012 |
01 |
| 029 |
11514517 |
NUT, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (COMN INTERFACE MDL) |
|
2012-2012 |
02 |
| 030 |
25816654 |
PIN, COMN INTERFACE MDL LOC |
ST1 (UE1) |
2012-2012 |
01 |
