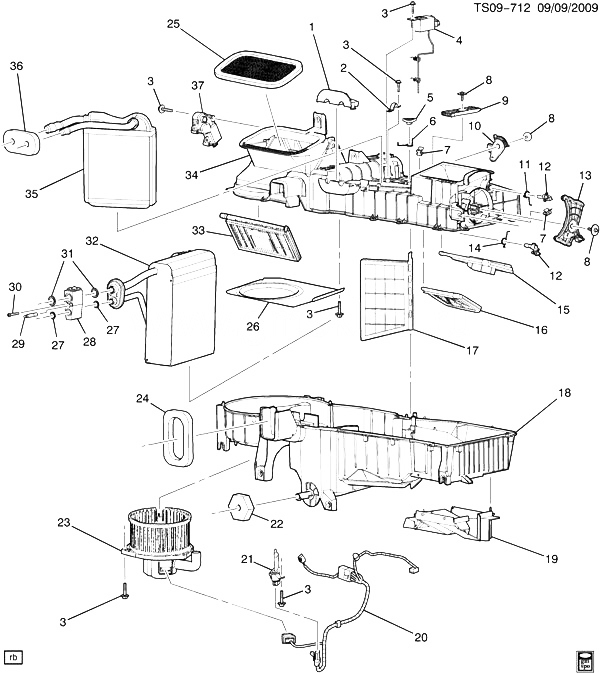

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
89018348 |
CLAMP, HTR CORE TUBE |
ST1 |
2004-2012 |
01 |
| 001 |
89018348 |
CLAMP, HTR CORE TUBE (8.846) |
ST1 |
2004-2012 |
01 |
| 002 |
52474765 |
CLAMP, HTR CORE (8.845) |
ST1 |
2004-2012 |
01 |
| 003 |
11609829 |
BOLT, A/C EVPR TUBE CLIP (M4.2X2.25X16) (9.786) |
ST1 (03-43-53) (C60) |
2008-2012 |
01 |
| 004 |
89018791 |
SENSOR, A/C REFRIG TEMP (ACDelco #15-50503) |
ST1 (03-43-53) |
2004-2012 |
01 |
| 005 |
|
LEVER, TEMP VLV (PART OF 17) |
|
2007-2012 |
|
| 006 |
89018560 |
SPRING, TEMP VLV LINK (PART OF 17) |
ST1 (03-43-53) (C60) |
2004-2012 |
01 |
| 007 |
89018350 |
CLIP, TEMP CONT VENT CONT CBL (9.281) |
ST1 (03-43-53) (C60) |
2004-2012 |
02 |
| 008 |
89018611 |
BOLT, BLO MOT RES (BOLT- HWH, M4X2X20, 22 OD, HARDENED STEEL) |
ST1 (03-43-53) |
2004-2012 |
01 |
| 009 |
|
LEVER, PIVOT VLV (PART OF 17) |
|
2007-2012 |
|
| 010 |
|
LEVER, DRIVE VLV (PART OF 17) |
|
2007-2012 |
|
| 011 |
89018346 |
SPRING, VENT OTLT VLV UPR PIV PIN |
ST1 (03-43-53) (C60) |
2004-2012 |
01 |
| 012 |
15218263 |
LEVER, MODE VLV |
ST1 (03-43-53) (C60) |
2008-2012 |
01 |
| 013 |
89018840 |
CAM, MODE CONT |
ST1 (03-43-53) (C60) |
2004-2012 |
01 |
| 014 |
89018347 |
SPRING, DEFR VLV SHF TORS |
ST1 (03-43-53) (C60) |
2004-2012 |
01 |
| 015 |
89018341 |
VALVE, VENT |
ST1 (03-43-53) |
2004-2012 |
01 |
| 016 |
15218259 |
VALVE, DEFR (ACDelco #15-50550) |
ST1 (03-43-53) |
2004-2012 |
01 |
| 017 |
89019205 |
VALVE, TEMP (INCLS 5, 6, 9, 10) |
ST1 (03-43-53) (C60) |
2004-2012 |
01 |
| 018 |
15218255 |
CASE, HTR A/C EVPR BLO LWR |
ST1 (03-43-53) |
2004-2012 |
01 |
| 019 |
15218257 |
COVER, HTR MDL LWR |
ST1 (03-53) |
2004-2012 |
01 |
| 020 |
89019303 |
HARNESS, A/C MDL WRG |
ST1 (03-43-53) (C60) |
2004-2012 |
01 |
| 021 |
15218254 |
RESISTOR, BLO MOT (ACDelco #15-80521) |
ST1 (03-43-53) |
2004-2012 |
01 |
| 021 |
15218254 |
RESISTOR, BLO MOT (9.215) (ACDelco #15-80521) |
ST1 (03-43-53) |
2004-2012 |
01 |
| 022 |
|
SEAL, HTR A/C EVPR BLO MDL DRN TUBE (*KIT1) |
|
2007-2012 |
|
| 023 |
89019178 |
MOTOR, BLO (W/IMPLR) (ACDelco #15-81131) (TO INSTALLRMV KICKPANEL @ A-PILLAR OF PASS DR UNDER DASH.MAKE SURE ALIGNMENT PINS OF LWR CASE ARE THRU HOLES PROVIDED IN MOTOR FLANGE.) |
ST1 (C60) |
2004-2012 |
01 |
| 023 |
89019178 |
MOTOR, BLO (W/IMPLR) (8.855) (ACDelco #15-81131) (TO INSTALLRMV KICKPANEL @ A-PILLAR OF PASS DR UNDER DASH.MAKE SURE ALIGNMENT PINS OF LWR CASE ARE THRU HOLES PROVIDED IN MOTOR FLANGE.) |
ST1 (C60) |
2004-2012 |
01 |
| 024 |
|
SEAL, A/C EVPR (*KIT1) |
|
2007-2012 |
|
| 025 |
|
SEAL, AIR INL (*KIT1) |
|
2007-2012 |
|
| 026 |
15218258 |
PLATE, BLO ORIFICE |
ST1 (03-43-53) |
2004-2012 |
01 |
| 027 |
52474373 |
SEAL, A/C CMPR CNDSR HOSE (BLACK) (SLIMLINE WASHER) (19MM OD X 11MM ID, 1/2IN DIA) (SMOOTH-SIDED) (ACDelco #15-31055) |
ST1 |
2004-2012 |
02 |
| 028 |
19257722 |
VALVE, A/C EVPR THERMAL EXPN (ACDelco #15-51276) |
ST1 (03-43-53) (C60) |
2004-2012 |
01 |
| 029 |
11562519 |
STUD, A/C EVPR HOSE |
ST1 (03-43-53) |
2006-2012 |
01 |
| 030 |
10308604 |
BOLT, A/C EVPR TXV (M5X.8X53MM) (PART OF MODULE) (9.242) |
ST1 (03-43-53) |
2004-2012 |
01 |
| 031 |
89019245 |
SEAL, A/C CMPR HOSE (23.5 OD X 15.5MM ID) (ACDelco #15-33898) |
ST1 (C60) |
2008-2012 |
01 |
| 032 |
89018984 |
EVAPORATOR, A/C (ACDelco #15-63413) |
ST1 (03-43-53) (C60) |
2006-2012 |
01 |
| 033 |
15218262 |
VALVE, AIR INL |
ST1 (03-43-53) (C60) |
2004-2012 |
01 |
| 034 |
89018336 |
CASE, HTR A/C EVPR BLO UPR |
ST1 (03-43-53) (C60) |
2004-2012 |
01 |
| 035 |
89019085 |
CORE, HTR (ACDelco #15-63539) |
ST1 (03-43-53) (C60) |
2008-2012 |
01 |
| 036 |
|
SEAL, HTR CORE (*KIT1) |
|
2007-2012 |
|
| 037 |
88970277 |
ACTUATOR, AIR INL VLV (ACDelco #15-72794) |
ST1 (03-43-53) |
2004-2012 |
01 |
| K01 |
89018661 |
SEAL KIT, HTR A/C EVPR BLO MDL (INCLS 22, 24, 25, 36) (ACDelco #89018661) |
ST1 (03-43-53) (C60) |
2004-2012 |
01 |
