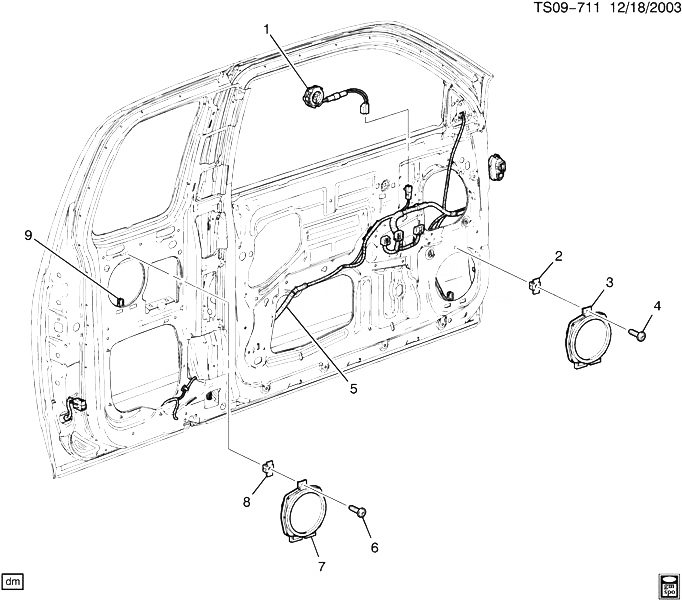

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15187058 |
SPEAKER, RDO FRT S/D (1LH, 1RH) (LITTLE ONE ON UPPER PART OF DOOR) (ACDelco #15187058) |
ST1 (YC3) |
2004-2012 |
02 |
| 002 |
11570654 |
NUT, RDO FRT S/D SPKR (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) |
ST1 |
2009-2012 |
02 |
| 003 |
25858090 |
SPEAKER, RDO FRT S/D (ACDelco #25858090) |
ST1 (UQ3) |
2009-2012 |
02 |
| 004 |
11609456 |
SCREW, ROUND WASHER HD, M4.2X1.41X25, 17.8 THD, 11.1 OD, 6010M, GMW4205 (RDO FRT SPKR) |
|
2004-2012 |
02 |
| 005 |
|
HARNESS, FRT S/D DR WRG (SEE GROUP 16.000 DOOR HARDWARE/SIDE FRONT FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2012 |
|
| 006 |
11609456 |
SCREW, ROUND WASHER HD, M4.2X1.41X25, 17.8 THD, 11.1 OD, 6010M, GMW4205 (RDO RR SPKR) |
|
2004-2012 |
02 |
| 007 |
25858090 |
SPEAKER, RDO RR S/D (ACDelco #25858090) |
ST1 (53) (UQ3) |
2009-2012 |
02 |
| 008 |
11570654 |
NUT, RDO RR S/D SPKR (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) |
ST1 |
2007-2012 |
02 |
| 009 |
|
HARNESS, RR S/D DR WRG (SEE GROUP 16.000 DOOR HARDWARE/SIDE REAR FOR DETAILED ILLUSTRATED VIEW.) |
|
2004-2012 |
|
