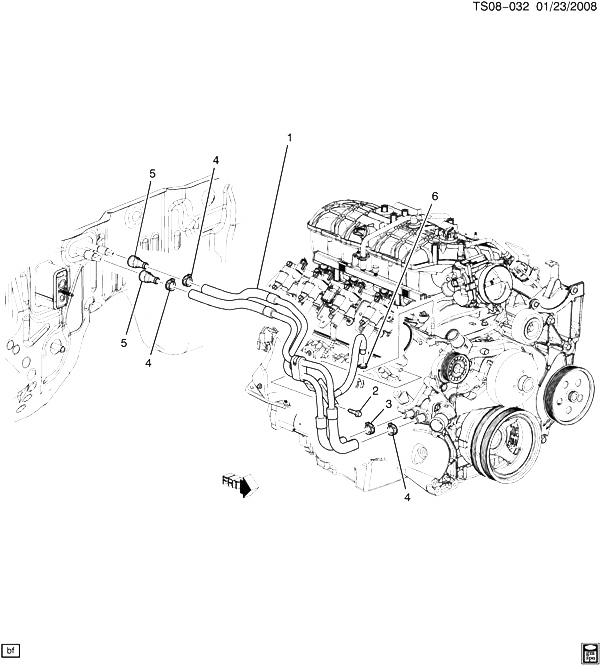

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25812382 |
HOSE, HTR INL OTLT (INCLS 3-6) |
ST1 (LH9, JJA) |
2010-2012 |
01 |
| 002 |
11588736 |
BOLT, HFH, M10X1.5X20, 10 THD, 22.3 O.D., 10.9, GMW3359 (HTR INL OTLT HOSE BRKT) |
|
2009-2012 |
01 |
| 003 |
01470030 |
CLAMP, WORM TYPE (11/16 TO 1 5/16) (PART OF 1) (ACDelco #1470030) |
|
2009-2012 |
01 |
| 004 |
11517133 |
CLAMP, SPRING, 22-26MM, 24 NOM., BLK (PART OF 1) |
|
2009-2012 |
03 |
| 005 |
15921502 |
CONNECTOR, HTR INL OTLT HOSE (PART OF 1) (ACDelco #15-33814) |
ST1 |
2009-2012 |
02 |
| 006 |
|
CLAMP, HTR OTLT HOSE (PART OF 1) |
|
2010-2012 |
|
