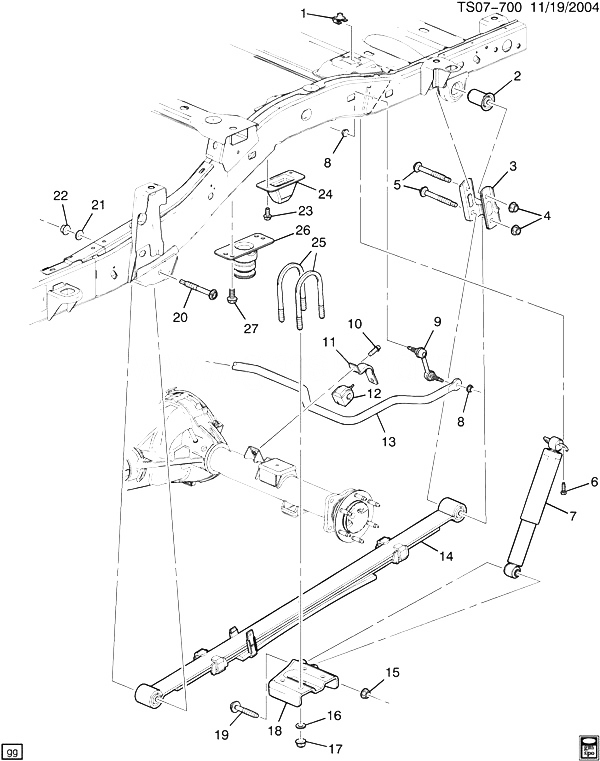

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15658213 |
NUT, RR S/ABS (M8X1.25, 11.1) (U-NUT) |
ST1 |
2004-2012 |
02 |
| 002 |
14027938 |
BUSHING, RR SPR SHKL |
ST1 |
2004-2012 |
02 |
| 003 |
15166223 |
SHACKLE, RR SPR |
ST1 |
2004-2012 |
02 |
| 004 |
11516382 |
NUT, RR SPR SHKL (M14X2X15, 28OD) (W/O J CLIP RETAINER) (8.917) |
ST1 |
2004-2012 |
04 |
| 005 |
11588857 |
BOLT, RR SPR SHKL (M14X2X110) (8.900) |
ST1 |
2004-2012 |
04 |
| 006 |
11609733 |
BOLT, HEX W/CON WA, M8X1.25X30, 20 THD, 24 OD, 10.9, GMW4205, MAT POINT (RR S/ABS) |
|
2004-2012 |
04 |
| 007 |
20930995 |
ABSORBER, RR SHK (ACDelco #560-668) |
ST1 (LH9, Z85) |
2010-2012 |
02 |
| 007 |
20930995 |
ABSORBER, RR SHK (ACDelco #560-668) |
ST1 (LH9, Z71) |
2010-2012 |
02 |
| 007 |
20930995 |
ABSORBER, RR SHK (ACDelco #560-668) |
T1 (LLR, LLV, Z85) |
2008-2012 |
02 |
| 007 |
20930994 |
ABSORBER, RR SHK (ACDelco #560-667) |
ST1 (43-53) (LLR, Z71) |
2008-2012 |
02 |
| 008 |
11517996 |
NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (RR STAB SHF LINK) (ACDelco #11517996) |
|
2004-2012 |
04 |
| 010 |
11518294 |
BOLT, HFH, M10X1.5X29.5, 17.08 OD, 6202M, 4435M, TAP, TR-PT (RR STAB SHF) |
|
2004-2012 |
04 |
| 014 |
25890833 |
SPRING, RR |
ST1 (43-53) (LH9, Z85) |
2010-2012 |
02 |
| 014 |
25986742 |
SPRING, RR |
T1 (43-53) (LLR, LLV, Z85) |
2008-2012 |
02 |
| 014 |
25986748 |
SPRING, RR |
ST1 (43-53) (LLR, Z71) |
2009-2012 |
02 |
| 014 |
25986747 |
SPRING, RR |
ST1 (43-53) (LH9, Z71) |
2010-2012 |
02 |
| 015 |
11516382 |
NUT, RR SPR U BOLT (M14X2X15, 28OD) (W/O J CLIP RETAINER) (8.917) |
ST1 |
2004-2012 |
08 |
| 016 |
11609234 |
WASHER - FLAT, M15X28X3, SAE 1050-1080 STL, GMW3044 8K 240/72N (RR SPR U BOLT) |
|
2004-2012 |
08 |
| 017 |
11516382 |
NUT, HFH LK M14X2X15, 28 OD 10 7111M (RR S/ABS) |
|
2004-2012 |
08 |
| 018 |
15215423 |
PLATE, RR SPR ANC |
ST1 |
2009-2012 |
02 |
| 019 |
11518725 |
BOLT, HFH, M14X2.0X95, 45 THD, 34 OD, 10.9, 7114M, CONICAL SPRING WA (RR S/ABS (AT R/AXL)) |
|
2004-2012 |
02 |
| 020 |
11588857 |
BOLT, RR SPR (FRT) (M14X2X110) (8.900) |
ST1 |
2004-2012 |
02 |
| 021 |
11609234 |
WASHER - FLAT, M15X28X3, SAE 1050-1080 STL, GMW3044 8K 240/72N (RR SPR) |
|
2004-2012 |
02 |
| 022 |
11516382 |
NUT, RR SPR (FRT) (M14X2X15, 28OD) (W/O J CLIP RETAINER) (8.917) |
ST1 |
2004-2012 |
02 |
| 023 |
11516327 |
BOLT, HFH, M10X1.5X25, 22.30 O.D., HDR PT, 10.9, 7112M (RR SUSP JOUNCE BPR) |
|
2004-2012 |
04 |
| 024 |
15163532 |
BUMPER, RR SUSP JOUNCE (76.0MM HEIGHT) (BOTTOM OF FRAME RAIL) |
T1 (Z71) |
2004-2012 |
02 |
| 025 |
11609235 |
BOLT U, RR SPR (M14X2X166) (U, ROUND HD) (8.906) |
ST1 (Z71, Z85) |
2008-2012 |
04 |
| 026 |
15163529 |
BUMPER, RR SUSP JOUNCE (INSIDE FRAME RAIL) |
ST1 (Z85) |
2004-2012 |
02 |
| 027 |
11516327 |
BOLT, HFH, M10X1.5X25, 22.30 O.D., HDR PT, 10.9, 7112M (RR SUSP JOUNCE BPR) |
|
2004-2012 |
04 |
