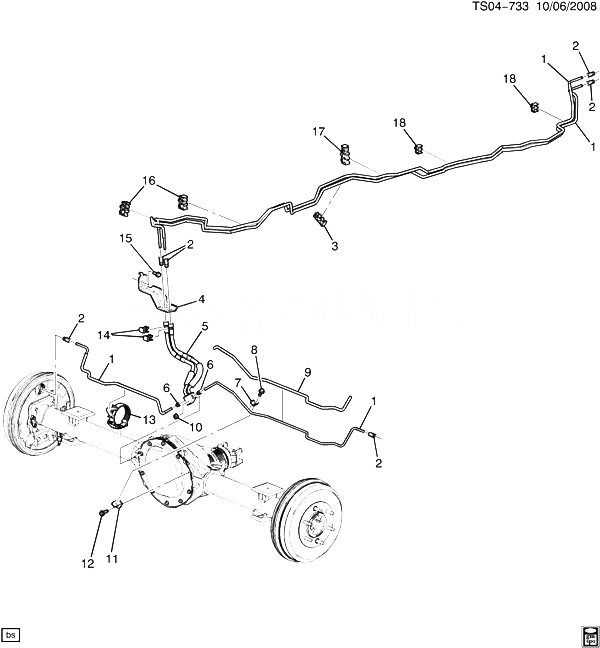

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
88983905 |
PIPE, BRK (3/16 X 16) (BULK TUBING) (NYLON COATING) (ACDelco #88983905) |
ST1 |
2009-2012 |
AR |
| 002 |
15165432 |
NUT, RR BRK INTER PIPE (M10X1.0, 6G X32, 10MM) (HEX TUBE INVERTED FLARE) |
ST1 |
2009-2012 |
02 |
| 003 |
15139021 |
CLIP, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (HOLDS (3) TUBES) |
ST1 (LLR, LLV) |
2009-2012 |
01 |
| 003 |
15139021 |
CLIP, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (HOLDS (3) TUBES) (4.686) |
ST1 (LLR, LLV) |
2009-2012 |
01 |
| 003 |
11570974 |
CLIP, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (BLACK) (63.7X23.2X12, NY 6/6) (HOLDS (2)3/16NYCLAD (2)3/8 ALUMINUM COATED TUBES) (4.686) |
ST1 (LH9) |
2010-2012 |
03 |
| 003 |
11570974 |
CLIP, BRK FUEL FEED FUEL RTN EVAP EMIS PIPE (BLACK) (63.7X23.2X12, NY 6/6) (HOLDS (2)3/16NYCLAD (2)3/8 ALUMINUM COATED TUBES) |
ST1 (LH9) |
2010-2012 |
03 |
| 004 |
|
BRACKET, RR BRK C/OVR HOSE (PART OF 5) |
|
2009-2012 |
|
| 005 |
25928297 |
HOSE, RR BRK (AXLE JOUNCE) (INCLS 4, 14) (ACDelco #176-1690) |
T1 |
2009-2012 |
01 |
| 006 |
11569751 |
NUT, HX TUBE INVERTED FLARE, M10X1X16, SAE1010, GMW4707M (RR BRK INTER PIPE) |
|
2009-2012 |
02 |
| 007 |
11610332 |
CLAMP, CLSD LOOP CUSHION, M6.3TUBE, 8.7 ATTACH HOLE, 16.3 C/C, 1008 STL, GMW3044 (RR BRK PIPE) |
|
2009-2012 |
AR |
| 008 |
11570082 |
BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (HOOD HGE (HOOD SI)) (ACDelco #11570082) |
|
2009-2012 |
01 |
| 009 |
88964150 |
PROTECTOR, BRK PIPE (FOR 3/16 PIPE) (HT SHRINK) |
ST1 |
2009-2012 |
AR |
| 010 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (R/D LK STKR) (8.915) (ACDelco #11514596) |
|
2009-2012 |
01 |
| 011 |
15174803 |
BRACKET, RR BRK PIPE CLIP (BOLT WELD NUT ARE INLINE) |
ST1 |
2009-2012 |
01 |
| 012 |
12471307 |
BOLT, R/AXL HSG CVR (M8X1.25X22.6, 19.2THD) (13 DRIVER SIZE) |
ST1 (GT4, GT5) |
2009-2012 |
08 |
| 012 |
12471307 |
BOLT, R/AXL HSG CVR (M8X1.25X22.6, 19.2THD) (13 DRIVER SIZE) |
ST1 (GU6) |
2009-2012 |
08 |
| 013 |
15234822 |
STRAP, RR BRK PIPE |
ST1 |
2009-2012 |
AR |
| 014 |
10064807 |
RETAINER, RR BRK HOSE (PART OF 5) (28.5X24.5) (BRK PIPE TO HOSE RETAINER) |
ST1 |
2009-2012 |
04 |
| 015 |
11570082 |
BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (RR BRK HOSE BRKT) (ACDelco #11570082) |
|
2009-2012 |
01 |
| 016 |
15139006 |
CLIP, FUEL FEED EVAP EMIS PIPE (HOLDS THREE LINES) (3.162) |
T1 |
2009-2012 |
04 |
| 016 |
15139006 |
CLIP, FUEL FEED EVAP EMIS PIPE (HOLDS THREE LINES) |
T1 |
2009-2012 |
04 |
| 017 |
15139007 |
CLIP, FUEL FEED EVAP EMIS PIPE (HOLDS FOUR LINES) (3.162) |
T1 |
2009-2012 |
02 |
| 017 |
15139007 |
CLIP, FUEL FEED EVAP EMIS PIPE (HOLDS FOUR LINES) |
T1 |
2009-2012 |
02 |
| 018 |
15165435 |
CLIP, FUEL FEED EVAP EMIS RTN INTER PIPE (2 LINE) |
ST1 |
2009-2012 |
04 |
| 018 |
15165435 |
CLIP, FUEL FEED EVAP EMIS RTN INTER PIPE (2 LINE) (3.162) |
ST1 |
2009-2012 |
04 |
