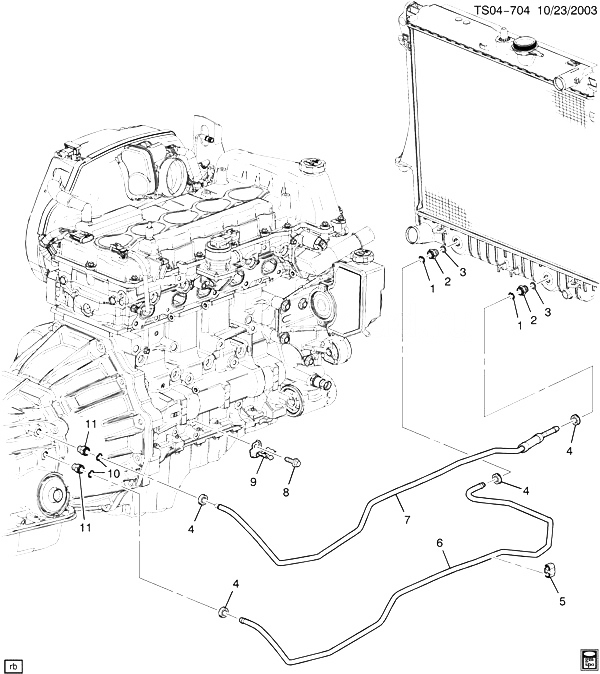

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
24205103 |
RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 2) (EXPANDING SPRING WIRE) (ACDelco #24205103) |
ST1 (M30) |
2008-2012 |
01 |
| 002 |
15226661 |
CONNECTOR, TRANS FLUID CLR PIPE (INCLS 1, 3) (9/16-18) (3/8 BODY QUICK CONNECT) (AT RAD) (ACDelco #15226661) |
ST1 (M30) |
2004-2012 |
02 |
| 003 |
|
SEAL, TRANS FLUID CLR PIPE FTG (PART OF 2) |
|
2008-2012 |
|
| 004 |
15052228 |
CAP, TRANS FLUID CLR PIPE CONN (PART OF 6, 7) (PLASTIC RETAINER) (ACDelco #15052228) |
ST1 (M30) |
2004-2012 |
04 |
| 005 |
15068848 |
CLIP, TRANS FLUID CLR PIPE (HOLDS 2-9.5MM (3/8) DIA PIPES, CLIP TOP, PLASTIC) |
ST1 (LLR, LLV, M30, JJA) |
2008-2012 |
01 |
| 006 |
20788331 |
PIPE, TRANS FLUID CLR INL (INCLS 4) (ACDelco #20788331) |
ST1 (LLR, LLV, M30) |
2010-2012 |
01 |
| 007 |
20788335 |
PIPE, TRANS FLUID CLR OTLT (INCLS 4) (ACDelco #20788335) |
ST1 (LLR, LLV, M30) |
2010-2012 |
01 |
| 008 |
11515755 |
BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (TRANS FLUID CLR PIPE CLIP) (T/W 12345493 REPLCS 25534835) |
|
2004-2012 |
01 |
| 009 |
25897284 |
CLIP, TRANS FLUID CLR PIPE (METAL) (SI MT TO ENG) |
ST1 (LLR, LLV, M30, JJA) |
2008-2012 |
01 |
| 010 |
24205103 |
RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 11) (EXPANDING SPRING WIRE) (ACDelco #24205103) |
ST1 (M30) |
2008-2012 |
01 |
| 011 |
24236579 |
FITTING, TRANS FLUID CLR PIPE (INCLS 10) (9/16-18 UNF-2A) (QUICK CONNECT) (ALUM BODY) |
ST1 (M30) |
2009-2012 |
02 |
