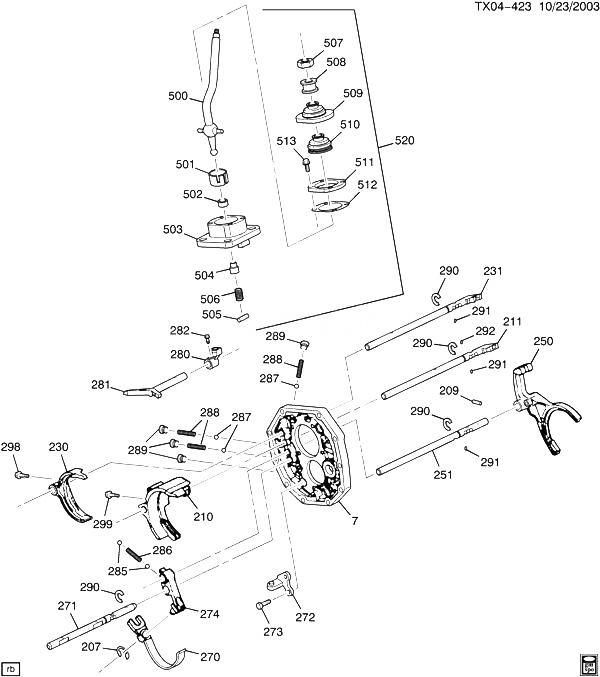

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 007 |
|
CASE, TRANS INTER |
|
2004-2012 |
|
| 207 |
89048297 |
RING, REV SHFT FORK RET |
ST1 (MA5) |
2004-2012 |
01 |
| 209 |
89048289 |
PIN, 5TH SHFT FORK |
ST1 (MA5) |
2004-2012 |
01 |
| 210 |
89048278 |
FORK, 1ST 2ND SHFT |
ST1 (MA5) |
2004-2012 |
01 |
| 211 |
89048283 |
SHAFT, 1ST 2ND SHFT |
ST1 (MA5) |
2004-2012 |
01 |
| 230 |
19180578 |
FORK, 3RD 4TH SHFT |
ST1 (MA5) |
2004-2012 |
01 |
| 231 |
89048284 |
SHAFT, 3RD 4TH SHFT |
ST1 (MA5) |
2004-2012 |
01 |
| 250 |
89059722 |
FORK, 5TH REV SHFT |
ST1 (MA5) |
2004-2012 |
01 |
| 251 |
89048285 |
SHAFT, 5TH SHFT |
ST1 (MA5) |
2004-2012 |
01 |
| 270 |
89048280 |
FORK, REV SHFT |
ST1 (MA5) |
2004-2012 |
01 |
| 271 |
89048286 |
SHAFT, REV SHFT |
ST1 (MA5) |
2004-2012 |
01 |
| 272 |
89048281 |
BRACKET, REV SHFT FORK |
ST1 (MA5) |
2004-2012 |
01 |
| 273 |
89048243 |
BOLT, REV SHFT FORK BRKT (4.412) |
ST1 (MA5) |
2004-2012 |
02 |
| 274 |
89048277 |
LEVER, REV SHFT |
ST1 (MA5) |
2004-2012 |
01 |
| 280 |
89059395 |
SOCKET, SHFT CONT LVR (ACDelco #89059395) |
ST1 (MA5) |
2005-2012 |
01 |
| 281 |
89048251 |
SHAFT, SHFT CONT |
ST1 (MA5) |
2004-2012 |
01 |
| 282 |
89048271 |
BOLT, SHFT CONT LVR SOCKET |
ST1 (MA5) |
2004-2012 |
01 |
| 285 |
89048292 |
BALL, REV SHFT SHF DTNT |
ST1 (MA5) |
2004-2012 |
02 |
| 286 |
89048294 |
SPRING, REV SHFT SHF DTNT |
ST1 (MA5) |
2004-2012 |
01 |
| 287 |
89048292 |
BALL, SHFT SHF DTNT |
ST1 (MA5) |
2004-2012 |
03 |
| 288 |
89048295 |
SPRING, SHFT SHF DTNT |
ST1 (MA5) |
2004-2012 |
03 |
| 289 |
89048273 |
PLUG, SHFT SHF DTNT |
ST1 (MA5) |
2004-2012 |
04 |
| 290 |
89048290 |
RING, 1ST 2ND SHFT SHF RET (4.303) (ACDelco #89048290) |
ST1 (MA5) |
2004-2012 |
01 |
| 290 |
89048290 |
RING, 3RD 4TH SHFT SHF RET (4.303) (ACDelco #89048290) |
ST1 (MA5) |
2004-2012 |
01 |
| 290 |
89048290 |
RING, 5TH SHFT SHF RET (4.303) (ACDelco #89048290) |
ST1 (MA5) |
2004-2012 |
01 |
| 290 |
89048290 |
RING, REV SHFT SHF RET (4.303) (ACDelco #89048290) |
ST1 (MA5) |
2004-2012 |
01 |
| 291 |
89048293 |
PIN, SHFT SHF INTLK |
ST1 (MA5) |
2004-2012 |
01 |
| 292 |
89048288 |
PIN, 1ST 2ND SHFT FORK |
ST1 (MA5) |
2004-2012 |
01 |
| 298 |
89048287 |
BOLT, 3RD 4TH SHFT FORK |
ST1 (MA5) |
2004-2012 |
01 |
| 299 |
89048287 |
BOLT, 1ST 2ND SHFT FORK |
ST1 (MA5) |
2004-2012 |
01 |
| 500 |
89058576 |
LEVER, SHFT CONT (INCLS 501, 502, 507-512) |
ST1 (MA5) |
2004-2012 |
01 |
| 501 |
|
SEAT, SHFT CONT LVR SPR (PART OF 500) |
|
2004-2012 |
|
| 502 |
89048255 |
BUSHING, SHFT CONT LVR SHF (PART OF 500) |
ST1 (MA5) |
2004-2012 |
01 |
| 503 |
|
HOUSING, SHFT CONT (PART OF 520) |
|
2004-2012 |
|
| 504 |
|
PLUNGER, SHFT CONT LVR (PART OF 520) |
|
2004-2012 |
|
| 505 |
|
PIN, SHFT CONT LVR SHF (PART OF 520) |
|
2004-2012 |
|
| 506 |
|
SPRING, SHFT CONT LVR SHF (PART OF 520) |
|
2004-2012 |
|
| 507 |
|
NUT, M/TRNS CONT LVR (PART OF 500) |
|
2004-2012 |
|
| 508 |
|
SEAL, SHFT CONT LVR SHF (PART OF 500) |
|
2004-2012 |
|
| 509 |
89048260 |
BOOT, M/TRNS CONT LVR (PART OF 500) (BOOT ONLY) |
ST1 (MA5) |
2004-2012 |
01 |
| 510 |
89048259 |
BOOT, SHFT CONT SHF (PART OF 500) |
ST1 (MA5) |
2004-2012 |
01 |
| 511 |
|
RETAINER, SHFT CONT LVR SPR ST (PART OF 500) |
|
2004-2012 |
|
| 512 |
89048261 |
GASKET, CONT LVR HSG (PART OF 500) |
ST1 (MA5) |
2004-2012 |
01 |
| 513 |
89048267 |
BOLT, SHFT CONT LVR SPR ST RET (4.104) |
ST1 (MA5) |
2004-2012 |
04 |
| 520 |
89059391 |
HOUSING, SHFT CONT (INCLS 503-506) (4.006) |
ST1 (MA5) |
2005-2012 |
01 |
