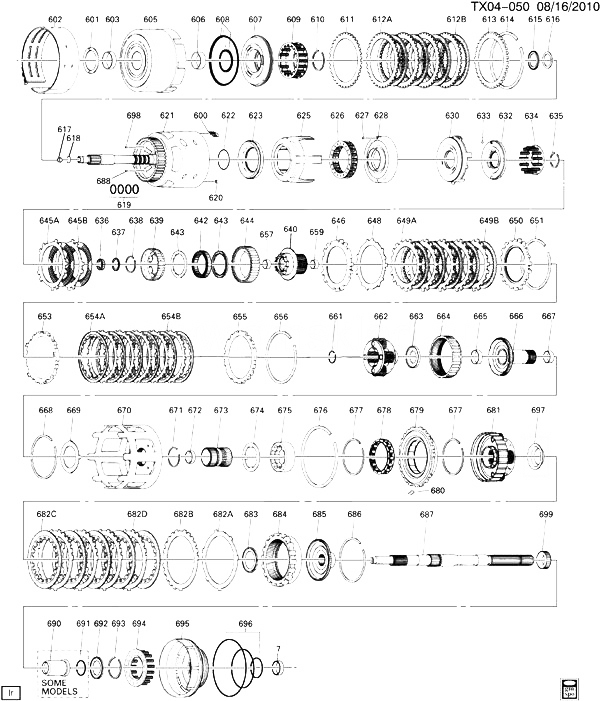

(TX04-050) 2004-2012 ST АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (M30) PART 3 (4L60-E) CLUTCH GEARS CHEVROLET COLORADO EXT CAB (4WD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
007 24241233 BUSHING, PROP SHF FRT SLIP YOKE (LOCATED IN TRANS CASE) (ACDelco #24241233) ST1 (M30) 2007-2012 01
600 08667424 SPRING, 3RD 4TH CLU BOOST (INCLS RET (2) SPRINGS) (ACDelco #8667424) ST1 (M30) 2004-2012 05
601 08642041 WASHER, REV INPUT CLU HSG THR (1.52-1.63MM) (4.226) (ACDelco #08642041) ST1 (M30) 2004-2012 01
602 24232236 BAND, 2-4 (ACDelco #24232236) ST1 (M30) 2004-2012 01
603 08642905 BUSHING, REV INPUT CLU HSG FRT (PART OF 605) (ACDelco #8642905) ST1 (M30) 2004-2012 01
605 24245624 HOUSING, REV INPUT CLU (INCLS 603, 606) (ACDelco #24245624) ST1 (M30) 2008-2012 01
606 08628917 BUSHING, DIR CLU HSG RR (PART OF 605) (ACDelco #8628917) ST1 (M30) 2004-2012 01
607 08667841 PISTON, REV INPUT CLU (.095 HOLE) (ACDelco #8667841) ST1 (M30) 2004-2012 01
608 08683960 SEAL KIT, REV INPUT CLU (*KIT2) (ACDelco #8683960) ST1 (M30) 2004-2012 01
609 24245066 SPRING, REV INPUT CLU (ACDelco #24245066) ST1 (M30) 2009-2012 01
610 24245065 RING, REV INPUT CLU SPR RET (*KIT4) (ACDelco #24245065) ST1 (M30) 2010-2012 01
611 08663074 PLATE, REV INPUT CLU (WAVED) (ACDelco #8663074) ST1 (M30) 2004-2012 01
612 08673605 PLATE, REV INPUT CLU (ILLUSTRATED AS 612B) (153MM DIA) (FIBER) (*KIT9) (ACDelco #8673605) ST1 (M30) 2004-2012 04
612 24205267 PLATE, REV INPUT CLU (ILLUSTRATED AS 612A) (1.97MM THICK) (W/HOLES IN TURB PLATES) (STEEL) (ACDelco #24205267) ST1 (M30) 2004-2012 04
613 24212463 PLATE, REV INPUT CLU BKG (5.787-5.947MM) (ACDelco #24212463) ST1 (M30) 2004-2012 01
613 24212464 PLATE, REV INPUT CLU BKG (6.518-6.678MM) (ACDelco #24212464) ST1 (M30) 2004-2012 01
613 24212465 PLATE, REV INPUT CLU BKG (7.409-7.249MM) (ACDelco #24212465) ST1 (M30) 2004-2012 01
614 08667022 RING, REV INPUT CLU BKG PLT RET (ACDelco #8667022) ST1 (M30) 2004-2012 01
615 08642066 BEARING, REV INPUT CLU HSG THR (ACDelco #8642066) ST1 (M30) 2004-2012 01
616 08642067 WASHER, REV INPUT CLU HSG THR (1.87-1.97MM) (4.158) (ACDelco #8642067) ST1 (M30) 2004-2012 01
616 08642068 WASHER, REV INPUT CLU HSG THR (2.04-2.14MM) (4.158) (ACDelco #8642068) ST1 (M30) 2004-2012 01
616 08642069 WASHER, REV INPUT CLU HSG THR (2.21-2.31MM) (4.158) (ACDelco #8642069) ST1 (M30) 2004-2012 01
616 08642070 WASHER, REV INPUT CLU HSG THR (2.38-2.48MM) (4.158) (ACDelco #8642070) ST1 (M30) 2004-2012 01
616 08642071 WASHER, REV INPUT CLU HSG THR (2.55-2.65MM) (4.158) (ACDelco #8642071) ST1 (M30) 2004-2012 01
616 08642072 WASHER, REV INPUT CLU HSG THR (2.72-2.82MM) (4.158) (ACDelco #8642072) ST1 (M30) 2004-2012 01
616 08642073 WASHER, REV INPUT CLU HSG THR (2.89-2.99MM) (4.158) (ACDelco #8642073) ST1 (M30) 2004-2012 01
616 08642074 WASHER, REV INPUT CLU HSG THR (3.06-3.16MM) (4.158) (ACDelco #8642074) ST1 (M30) 2004-2012 01
617 08685839 VALVE, TURB SHF BALL CHK (ACDelco #8685839) ST1 (M30) 2004-2012 01
618 08662686 SEAL, TURB SHF (O RING) (*KIT2) (ACDelco #8662686) ST1 (LLR, LLV, M30) 2008-2012 01
618 24212987 SEAL, TURB SHF (O RING) (*KIT2) (ACDelco #24212987) T1 (LH9, M30, JJA) 2010-2012 01
619 08667035 RING, INPUT SHF FLUID SEAL (TEFLON) (*KIT2) (ACDelco #8667035) ST1 (M30) 2004-2012 04
620 24208262 VALVE, 3-4 CLU HSG BALL CHK (PART OF 621) (ACDelco #24208262) ST1 (M30) 2004-2012 01
621 24242329 HOUSING, 3-4 CLU (W/INPUT SHF) (INCLS 620, 688, 698) (ACDelco #24242329) ST1 (LLV, LLR, M30) 2008-2012 01
621 24230654 HOUSING, 3-4 CLU (W/INPUT SHF) (INCLS 620, 688, 698) (ACDelco #24230654) ST1 (LH9, M30) 2010-2012 01
622 SEAL, FWD CLU HSG (O RING) (*KIT1) 2004-2012
623 24200290 PISTON, 3-4 CLU (ACDelco #24200290) ST1 (M30) 2004-2012 01
625 08685043 RING, 3-4 CLU APPL (1 BAR) (ACDelco #8685043) ST1 (M30) 2004-2012 01
626 08685244 SPRING, 3-4 CLU (105.12MM O.D.) (ACDelco #8685244) ST1 (M30) 2004-2012 01
627 24205181 VALVE, FWD CLU HSG BALL CHK (PART OF 628) (SHORT WIDE) (ACDelco #24205181) ST1 (M30) 2007-2012 01
628 24205298 HOUSING, FWD CLU (INCLS 627) (INCLS HOUSINGS VALVE) (ACDelco #24205298) ST1 (M30) 2004-2012 01
630 24205272 PISTON, FWD CLU (INCLS SEALING ELEMENT) (ACDelco #24205272) ST1 (M30) 2004-2012 01
632 24205273 PISTON, OVERRUN CLU (INCLS 633) (STEEL W/ INTEGRAL SEAL) (ACDelco #24205273) ST1 (M30) 2004-2012 01
633 VALVE, OVERRUN CLU BALL CHK (PART OF 632) 2004-2012
634 24206085 SPRING, OVERRUN CLU (ACDelco #24206085) ST1 (M30) 2004-2012 01
635 11500692 RING, OVERRUN CLU SPR RET (*KIT4) (ACDelco #11500692) 2004-2012 01
636 08677268 SEAL, OUTPUT SHF (29 TEETH/SPLINE) (*KIT1) (ACDelco #8677268) ST1 (M30) 2004-2012 01
637 08642162 BEARING, INPUT SUN GR THR (ACDelco #8642162) ST1 (M30) 2004-2012 01
638 08647083 RING, OVERRUN CLU HUB RET (PART OF 642) (*KIT4) (ACDelco #8647083) ST1 (M30) 2004-2012 01
639 HUB, OVERRUN CLU (HUB, OVERRUN CLU (PART OF 642)) 2004-2012
640 24219279 GEAR, INPUT SUN (PART OF 642) (ACDelco #24219279) ST1 (M30) 2005-2012 01
642 24240575 SPRAG, FWD CLU (INCLS 638, 639, 640, 643, 644, 657, 659) (SERVICE BULLETIN#08-07-30-017 APPLIES TO THIS PART) (HVY DUTY) (ACDelco #24240575) ST1 (M30) 2004-2012 01
643 RETAINER, FWD CLU RLR (PART OF 642) 2004-2012
644 RACE, FWD CLU RLR OTR (PART OF 642) 2004-2012
645 08642154 PLATE, OVERRUN CLU (ILLUSTRATED AS 645A) (2.34MM THK) (FLAT STEEL) (ACDelco #8642154) ST1 (M30) 2004-2012 02
645 24210766 PLATE, OVERRUN CLU (ILLUSTRATED AS 645B) (1.93-2.13 THK) (GROOVED) (*KIT9) (ACDelco #24210766) ST1 (M30) 2004-2012 02
646 24212462 PLATE, FWD CLU APPLY (ACDelco #24212462) ST1 (M30) 2004-2012 01
648 08647058 PLATE, FWD CLU (WAVED) (ACDelco #8647058) ST1 (M30) 2004-2012 01
649 08654325 PLATE, FWD CLU (ILLUSTRATED AS 649A) (STEEL) (*KIT5, KIT9) (ACDelco #8654325) ST1 (M30) 2004-2012 05
649 24232517 PLATE, FWD CLU (ILLUSTRATED AS 649B) (DOUBLE PARALLEL GROOVES) (*KIT5, KIT9) (ACDelco #24232517) ST1 (M30) 2004-2012 05
650 24212466 PLATE, FWD CLU BKG (4.56MM-4.71MM) (ACDelco #24212466) ST1 (M30) 2004-2012 01
650 24212467 PLATE, FWD CLU BKG (5.15MM-5.30MM) (ACDelco #24212467) ST1 (M30) 2004-2012 01
650 24212468 PLATE, FWD CLU BKG (5.74MM-5.89MM) (ACDelco #24212468) ST1 (M30) 2004-2012 01
650 24212469 PLATE, FWD CLU BKG (6.33MM-6.48MM) (ACDelco #24212469) ST1 (M30) 2004-2012 01
650 24212470 PLATE, FWD CLU BKG (6.9-7.1MM) (ACDelco #24212470) ST1 (M30) 2004-2012 01
651 08642170 RING, FWD CLU BKG PLT RET (ACDelco #8642170) ST1 (M30) 2004-2012 01
653 08685044 PLATE, 3-4 CLU APPLY (ACDelco #8685044) ST1 (M30) 2004-2012 01
654 24238603 PLATE KIT, CLU (INCLS ONLY 3-4 CLU STEEL PLTS) (INCLS REV INPUT, OVERRUN, FWD, 3-4, LOW/REV FIBER CLU PLT ASM) (ACDelco #24238603) ST1 (M30) 2007-2012 01
655 24212459 PLATE, 3-4 CLU BKG (3.90-4.10MM) (ACDelco #24212459) ST1 (M30) 2004-2012 01
655 24212460 PLATE, 3-4 CLU BKG (4.79-4.99MM) (ACDelco #24212460) ST1 (M30) 2004-2012 01
655 24212461 PLATE, 3-4 CLU BKG (5.68-5.88MM) (ACDelco #24212461) ST1 (M30) 2004-2012 01
656 08663636 RING, 3-4 CLU BKG PLT RET (ACDelco #8663636) ST1 (M30) 2004-2012 01
657 24241493 BUSHING, OUTPUT SHF (PART OF 642) (ACDelco #24241493) ST1 (M30) 2008-2012 02
659 24241493 BUSHING, OUTPUT SHF (PART OF 642) (ACDelco #24241493) ST1 (M30) 2008-2012 02
661 08654141 RING, OUTPUT SHF RET (*KIT2, KIT4) (ACDelco #8654141) ST1 (M30) 2004-2012 01
662 24241241 CARRIER, INPUT (W/LEAD FREE PINION GEAR THRUST WASHERS) (ACDelco #24241241) ST1 (M30) 2008-2012 01
663 08642215 BEARING, REACTION CARR THR (52.42 ID X 72.4 OD) (4.176) (ACDelco #8642215) ST1 (M30) 2004-2012 01
663 24217328 BEARING, REACTION CARR THR (73.7 ID X 91 OD) (ACDelco #24217328) ST1 (M30) 2004-2012 01
663 24236092 BEARING, REACTION CARR THR (41.95 ID X 63.75 O.D) (ACDelco #24236092) ST1 (M30) 2008-2012 01
664 24219410 GEAR, INPUT INTL (ACDelco #24219410) ST1 (M30) 2004-2012 01
665 08642908 BUSHING, REACTION CARR SHF FRT (PART OF 666) (ACDelco #8642908) ST1 (M30) 2007-2012 01
666 24241255 SHAFT, REACTION CARR (INCLS 665, 667) (ACDelco #24241255) ST1 (M30) 2008-2012 01
667 08642907 BUSHING, REACTION CARR SHF RR (PART OF 666) (ACDelco #8642907) ST1 (M30) 2007-2012 01
668 08642201 RING, REACTION CARR SHF RET (ACDelco #8642201) ST1 (M30) 2004-2012 01
669 24217328 BEARING, REACTION CARR THR (73.7 ID X 91 OD) (ACDelco #24217328) ST1 (M30) 2004-2012 01
670 24217145 SHELL, REACTION SUN GR (ACDelco #24217145) ST1 (M30) 2004-2012 01
670 19258702 SHELL, REACTION SUN GR (BULK PACKAGE - CONTAINS QTY.6 OF 24229604) (ACDelco #19258702) ST1 (M30) 2011-2012 01
671 08681553 RING, REACTION SUN GR RET (ACDelco #8681553) ST1 (M30) 2004-2012 01
672 BUSHING, REACTION SUN GR (PART OF 673) 2004-2012
673 24241250 GEAR, REACTION SUN (INCLS 672) (ACDelco #24241250) ST1 (M30) 2004-2012 01
674 08642331 WASHER, REACTION SUN GR SHELL THR (4.176) (ACDelco #8642331) ST1 (M30) 2004-2012 01
675 08673300 RACE, LOW CLU RLR INR (ACDelco #8673300) ST1 (M30) 2004-2012 01
676 24200278 RING, LOW REV CLU SUPT RET (ACDelco #24200278) ST1 (M30) 2004-2012 01
677 06261051 RING, LOW CLU RLR RET (ACDelco #6261051) ST1 (M30) 2004-2012 02
678 24217231 ROLLER, LOW CLU (PART OF 679) (*KIT6) (ACDelco #24217231) ST1 (M30) 2010-2012 01
679 24238102 SUPPORT, LOW REV CLU (INCLS 678) (*KIT6) (ACDelco #24238102) ST1 (M30) 2004-2012 01
680 06261415 SPRING, LOW REV CLU SUPT (ACDelco #6261415) ST1 (M30) 2004-2012 01
681 24241240 CARRIER, REACTION (INCLS 697) (HIGH SPEED) (W/DEFLECTOR) (ACDelco #24241240) ST1 (M30) 2008-2012 01
681 24241237 CARRIER, REACTION (INCLS 697) (STANDARD) (W/O DEFLECTOR) (ACDelco #24241237) ST1 (M30) 2004-2012 01
682 08676362 PLATE, LOW REV CLU (WAVED) (ILLUSTRATED AS 682A) (*KIT6) (ACDelco #8676362) ST1 (M30) 2004-2012 01
682 24216946 PLATE, LOW REV CLU (ILLUSTRATED AS 682C) (FIBER) (SEGMENTED-DO NOT MIX SEGMENTED W/NON-SEGMENTED CLUTCH PLATES) (*KIT9) (ACDelco #24216946) ST1 (M30) 2004-2012 05
682 24205268 PLATE, LOW REV CLU (ILLUSTRATED AS 682D) (1.829MM) (HAS HOLES IN TURB PLATES) (STEEL) (*KIT6) (ACDelco #24205268) ST1 (M30) 2004-2012 04
682 24205269 PLATE, LOW REV CLU (ILLUSTRATED AS 682B) (1.314MM) (HAS HOLES IN TURB PLATES) (*KIT6) (ACDelco #24205269) ST1 (M30) 2004-2012 01
682 24205270 PLATE, LOW REV CLU (ILLUSTRATED AS 682B) (2.344MM) (HAS HOLES IN TURB PLATES) (STEEL) (*KIT6) (ACDelco #24205270) ST1 (M30) 2004-2012 01
683 08642215 BEARING, REACTION CARR THR (52.42 ID X 72.4 OD) (4.176) (ACDelco #8642215) ST1 (M30) 2004-2012 01
684 24233619 GEAR, REACTION INTL (ACDelco #24233619) ST1 (M30) 2004-2012 01
685 24225931 SUPPORT, REACTION INTL GR (ACDelco #24225931) ST1 (M30) 2004-2012 01
686 08642220 RING, INT REACTION GR SUPT RET (ACDelco #8642220) ST1 (M30) 2004-2012 01
687 08683818 SHAFT, OUTPUT (ACDelco #8683818) T1 (LH9, LLR, LLV, M30, JJA) 2010-2012 01
688 PLUG, 3-4 CLU HSG FLUID PASG HOLE (PART OF 621) 2004-2012
690 SLEEVE, OUTPUT SHF (NOT REQD) 2004-2012
691 SEAL, OUTPUT SHF (NOT REQD) (*KIT2) 2004-2012
692 24217327 BEARING, INT REACTION GR SUPT THR (43.0 ID X 64.57 OD) (ACDelco #24217327) ST1 (M30) 2008-2012 01
693 08647337 RING, LOW REV CLU SPR RET RET (*KIT4, KIT6) (4.159) (ACDelco #8647337) ST1 (M30) 2004-2012 01
694 08642227 SPRING, LOW REV CLU (ACDelco #8642227) ST1 (M30) 2004-2012 01
695 08685549 PISTON, LOW REV CLU (*KIT6) (ACDelco #8685549) ST1 (M30) 2004-2012 01
696 08648987 SEAL KIT, LOW REV CLU (INCLS INR, OTR INTER SEALS) (*KIT2, KIT6) (4.166) (ACDelco #8648987) ST1 (M30) 2004-2012 01
697 DEFLECTOR, REACTION CARR THR BRG LUB (DEFLECTOR, OIL (PART OF 681)) 2004-2012
698 08663707 ORIFICE, LUB FLUID (PART OF 621) (4.3MM DIA) (ACDelco #8663707) ST1 (M30) 2004-2012 01
699 97233744 WHEEL, VEH SPD SEN RELUCTOR T1 (JJA, NP1) 2004-2012 01
K01 08642919 SEAL KIT, 3-4 CLU PSTN (FOA) (INCLS 622, 636) (ACDelco #8642919) ST1 (M30) 2004-2012 01
K02 24236378 GASKET KIT, A/TRNS SERV (INCLS 608, 618, 619, 661, 691, 696) (FOR ADDITIONAL CONTENTS OF THIS KIT SEE PARTS 2, 5 OF THIS TRANSMISSION ASSEMBLY) (FWD AND OVERRUN PISTONS) (ACDelco #24236378) ST1 (M30) 2006-2012 01
K04 24248064 RING KIT, RET (INCLS 610, 635, 638, 661, 693) (FOR ADDITIONAL CONTENTS OF THIS KIT SEE PART 5 OF THIS TRANSMISSION ASSEMBLY) (ACDelco #24248064) ST1 (M30) 2004-2012 01
K05 24232835 PLATE KIT, FWD CLU (INCLS 649) (INCLS INSTR SHEET FWD CLUTCH PLATES (FIBERS AND STEELS) (ACDelco #24232835) ST1 (M30) 2004-2012 01
K06 08687996 PLATE KIT, LOW REV CLU (INCLS 678, 679, 682A, 682B, 682D, 693, 695, 696) (STEEL PLATES) (ACDelco #8687996) ST1 (M30) 2004-2012 01
K07 24238600 PLATE KIT, 3-4 CLU (COLOR OF REG 3-4 STL CLU PLT WAS SILVER AND COLOR OF HD 3-4 STL CLUPLT WAS BLUE. NOW BOTH REG AND HD ARE BLUE. SINGLE OPEN CIRCULAR INDENT ON..) (INCLS STEEL FIBER PLATES) (ACDelco #24238600) ( SINGLE LARGE TOOTH IS ID FEATURE FOR HD PLT.) ST1 (M30) 2004-2012 01
K09 24238603 PLATE KIT, CLU (COLOR OF REG 3-4 STL CLU PLT WAS SILVER AND COLOR OF HD 3-4 STL CLU PLT WAS BLUE. NOW BOTH REG AND HD ARE BLUE. SINGLE OPEN CIRCULAR INDENT ON..) (INCLS 612B, 645B, 649A, 649B, 682C) (INCLS ONLY 3-4 CLU STEEL PLTS) (INCLS REV INPUT, OVERRUN, FWD, 3-4, LOW/REV FIBER CLU PLT ASM) (ACDelco #24238603) (SINGLE LARGE TOOTH IS ID FEATURE FOR HD PLT.) ST1 (M30) 2007-2012 01
