| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20888103 |

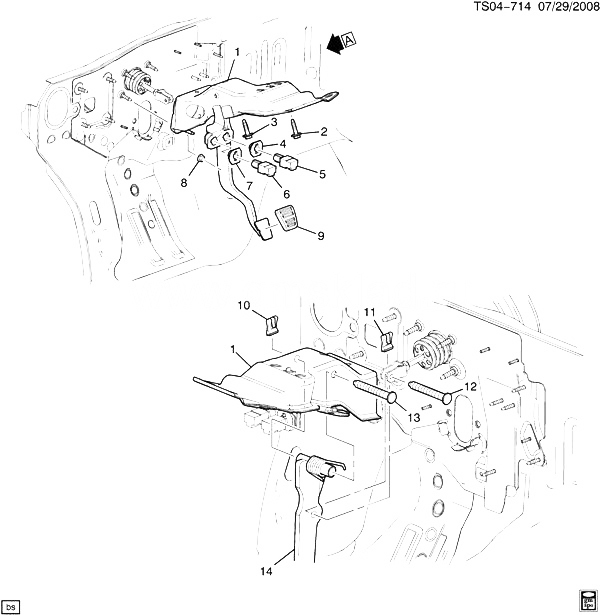

PEDAL, BRK (W/BRKT) (INCLS 3-7, 9, 10, 13, 14) |
ST1 (MA5) |
2010-2012 |
01 |
| 001 |
20888104 |
PEDAL, BRK (W/BRKT) (INCLS 3-7, 9, 10, 13, 14) |
ST1 (M30) |
2010-2012 |
01 |
| 002 |
11570082 |
BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (BRK PED BRKT) (ACDelco #11570082) |
|
2004-2012 |
02 |
| 003 |
11610010 |
BOLT, HEX W/ CON WA, M8X1.25X40, 32 THD, 28 OD, 9.8, 7114M, MACH, P-PT (PART OF 1) |
|
2004-2012 |
02 |
| 004 |
10418917 |
RETAINER, S/LP SW (PART OF 1) (3.887) |
ST1 (MA5, M30) |
2006-2012 |
01 |
| 005 |
20887894 |
SWITCH, S/LP (PART OF 1) |
ST1 |
2010-2012 |
01 |
| 006 |
15109338 |
SWITCH, CRCONT REL TCC (PART OF 1) (MUST ORDER TOGETHER WITH P/N 10418917) |
ST1 |
2004-2012 |
01 |
| 007 |
10418917 |
RETAINER, CRCONT REL TCC SW (PART OF 1) |
ST1 |
2004-2012 |
01 |
| 008 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (BRK PED BRKT) (8.915) (ACDelco #11514596) |
|
2004-2012 |
04 |
| 009 |
15134587 |
PAD, BRK PED (PART OF 1) |
ST1 (M30) |
2004-2012 |
01 |
| 009 |
15134587 |
PAD, BRK PED (PART OF 1) |
ST1 (MA5) |
2010-2012 |
01 |
| 010 |
15186473 |
RETAINER, BRK PED PUSH ROD (PART OF 1) |
ST1 |
2004-2012 |
01 |
| 011 |
15186473 |
RETAINER, BRK PED PUSH ROD |
ST1 |
2004-2012 |
01 |
| 012 |
15186474 |
PIN, BRK PED PUSH ROD CLV |
ST1 |
2004-2012 |
01 |
| 013 |
15186474 |
PIN, BRK PED PUSH ROD CLV (PART OF 1) |
ST1 |
2004-2012 |
01 |
| 014 |
|
ROD, BRK PED PUSH (PART OF 1) |
|
2004-2012 |
|
