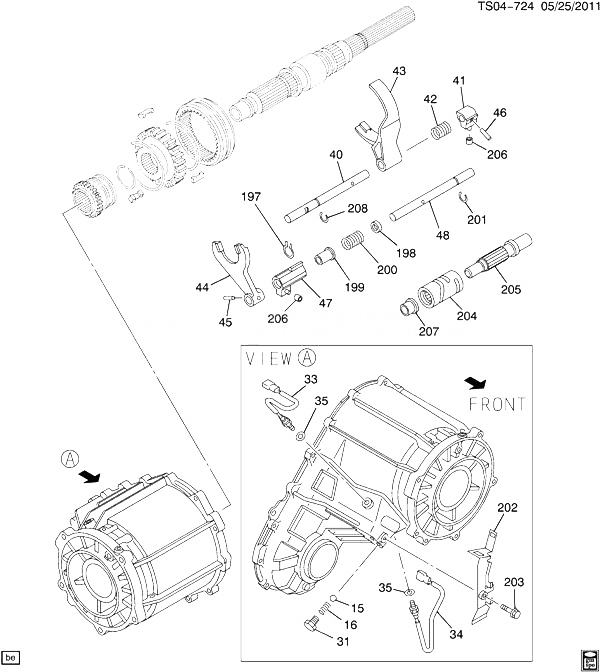

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 015 |
94435335 |
BALL, TRFER CASE HIGH/LOW SHFT FORK SHF DTNT (4.311) |
T1 (NP1) |
2004-2012 |
02 |
| 016 |
97145374 |
SPRING, TRFER CASE SHFT DTNT (4.515) |
T1 (NP1) |
2004-2012 |
01 |
| 031 |
94015392 |
PLUG, TRFER CASE SHFT DTNT PLGR (M12X9) (4.311) |
T1 (NP1) |
2004-2012 |
02 |
| 033 |
97358606 |
SWITCH, TRFER CASE NEU POSN (ORDER T/W 94158328) |
T1 (NP1) |
2004-2012 |
01 |
| 034 |
97358605 |
SWITCH, TRFER CASE SHFT CONT (ORDER T/W 94158328) |
T1 (NP1) |
2004-2012 |
01 |
| 035 |
94000375 |
GASKET, COPPER FLT WA TYPE M14.2X20X1.5 (TRFER CASE) |
|
2004-2012 |
02 |
| 040 |
97234229 |
SHAFT, TRFER CASE TWO/FOUR WHL DRV SHFT FORK |
T1 (NP1) |
2004-2012 |
01 |
| 041 |
97234233 |
BLOCK, TWO /FOUR WHL DRV SHFT |
T1 (NP1) |
2004-2012 |
01 |
| 042 |
97239010 |
SPRING, TRFER CASE TWO/FOUR WHL DRV SHFT SHF DTNT |
T1 (NP1) |
2004-2012 |
01 |
| 043 |
97234231 |
FORK, TRFER CASE TWO/FOUR WHL DRV SHFT |
T1 (NP1) |
2004-2012 |
01 |
| 044 |
97300106 |
FORK, TRFER CASE HIGH/LOW SHFT |
T1 (NP1) |
2004-2012 |
01 |
| 045 |
94171541 |
PIN, TRFER CASE HIGH/LOW SHFT FORK (25MM LG, 4.2MM DIA) (4.303) |
T1 (NP1) |
2004-2012 |
01 |
| 046 |
94171541 |
PIN, TRFER CASE TWO/FOUR WHL DRV SHFT FORK (25MM LG, 4.2MM DIA) (4.303) |
T1 (NP1) |
2004-2012 |
01 |
| 047 |
97234234 |
BLOCK, TRFER CASE HIGH/LOW SHFT FORK |
T1 (NP1) |
2004-2012 |
01 |
| 048 |
97234230 |
SHAFT, TRFER CASE HIGH/LOW SHFT FORK |
T1 (NP1) |
2004-2012 |
01 |
| 197 |
97305011 |
RING, TRFER CASE HIGH/LOW INT GR RET |
T1 (NP1) |
2004-2012 |
01 |
| 198 |
97234663 |
SEAT, TRFER CASE SHFT FORK SPR |
T1 (NP1) |
2004-2012 |
01 |
| 199 |
97234662 |
COLLAR, TRFER CASE TWO/FOUR WHL DRV SYN |
T1 (NP1) |
2004-2012 |
01 |
| 200 |
97239011 |
SPRING, TRFER CASE HIGH/LOW SHFT FORK SHF DTNT |
T1 (NP1) |
2004-2012 |
01 |
| 201 |
94460357 |
RING, TRFER CASE HIGH/LOW SYN RET (4.307) |
T1 (NP1) |
2004-2012 |
01 |
| 202 |
98089545 |
BRACKET, TRFER CASE SEL SW (W/HOLE) |
T1 (JJA, NP1) |
2008-2012 |
01 |
| 203 |
11588723 |
BOLT, TRFER CASE SEL SW BRKT (8 X 1.25 X 25) (8.900) |
T1 (NP1) |
2004-2012 |
01 |
| 204 |
97358246 |
LEVER, TRFER CASE CONT ACTR |
T1 (NP1) |
2004-2012 |
01 |
| 205 |
97231855 |
SHAFT, TRFER CASE CONT ACTR LVR |
T1 (NP1) |
2004-2012 |
01 |
| 206 |
97234499 |
ROLLER, TRFER CASE SHFT DTNT (2/4 BLOCK, HI/LOW BLOCK) |
T1 (NP1) |
2004-2012 |
04 |
| 207 |
98158124 |
BUSHING, TRFER CASE CONT ACTR LVR |
T1 (NP1) |
2004-2012 |
01 |
| 208 |
94460357 |
RING, TRFER CASE SHFT FORK SHF BUSH RET (4.307) |
T1 (NP1) |
2004-2012 |
01 |
