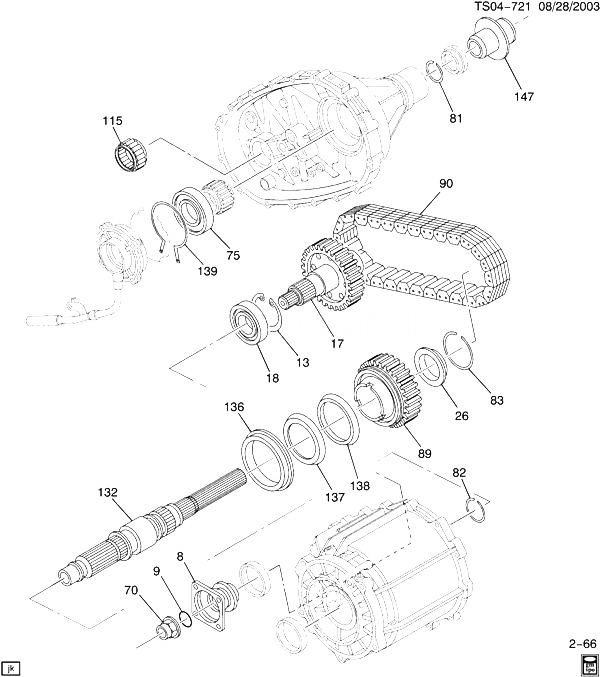

(TS04-721) 2004-2012 T РАЗДАТОЧНАЯ КОРОБКА PART 3 SHAFTS RELATED PARTS CHEVROLET COLORADO EXT CAB (4WD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
008 97358243 FLANGE, FRT PROP SHF T1 (NP1) 2004-2012 01
009 94483035 SEAL, PROP SHF TRANS FLG (O RING) (4.525) T1 (NP1) 2004-2012 01
013 97305402 RING, TRFER CASE FRT OUTPUT SHF FRT BRG RET T1 (NP1) 2004-2012 01
017 97231853 SHAFT, TRFER CASE FRT OUTPUT T1 (NP1) 2004-2012 01
018 94422172 BEARING, TRFER CASE FRT OUTPUT SHF FRT T1 (NP1) 2004-2012 01
026 97239774 WASHER, TRFER CASE FRT OUTPUT SHF DRV SPKT THR T1 (NP1) 2004-2012 01
070 97358603 NUT, PROP SHF TRANS FLG T1 (NP1) 2004-2012 01
075 97234737 BEARING, TRFER CASE RR OUTPUT SHF RR T1 (NP1) 2004-2012 01
081 97305404 RING, TRFER CASE RR OUTPUT SHF RR BRG RET T1 (NP1) 2004-2012 01
082 97305405 RING, TRFER CASE RR OUTPUT SHF RR BRG OTR RET (4.538) T1 (NP1) 2004-2012 01
083 97305407 RING, TRFER CASE TWO/FOUR WHL DRV SPKT RET (2.15) T1 (NP1) 2004-2012 01
083 97305408 RING, TRFER CASE TWO/FOUR WHL DRV SPKT RET (2.10) T1 (NP1) 2004-2012 01
083 97305409 RING, TRFER CASE TWO/FOUR WHL DRV SPKT RET (2.05) T1 (NP1) 2004-2012 01
083 97305410 RING, TRFER CASE TWO/FOUR WHL DRV SPKT RET (2.00) T1 (NP1) 2004-2012 01
089 98013525 SPROCKET, TRFER CASE FRT OUTPUT SHF DRV T1 (NP1) 2006-2012 01
090 97323177 CHAIN, TRFER CASE TWO/FOUR WHL DRV T1 (NP1) 2004-2012 01
115 97234747 BEARING, TRFER CASE FRT OUTPUT SHF RR T1 (NP1) 2004-2012 01
132 98013925 SHAFT, TRFER CASE RR OUTPUT T1 (NP1) 2004-2012 01
136 94363054 RING, TRFER CASE TWO/FOUR WHL DRV SYN BLOCKING (Z=48) (4.383) T1 (NP1) 2004-2012 01
137 94363056 RING, TRFER CASE TWO/FOUR WHL DRV SYN RET (INNER) (4.383) T1 (NP1) 2004-2012 01
138 94363055 RING, TRFER CASE TWO/FOUR WHL DRV SYN RET (OUTER) (OD=90 MM) (OUTER) (4.383) T1 (NP1) 2004-2012 01
139 97305012 RING, TRFER CASE RR OUTPUT SHF BRG RLR RET T1 (NP1) 2004-2012 01
147 CAP, OUTPUT SHF SHPG 2004-2012
