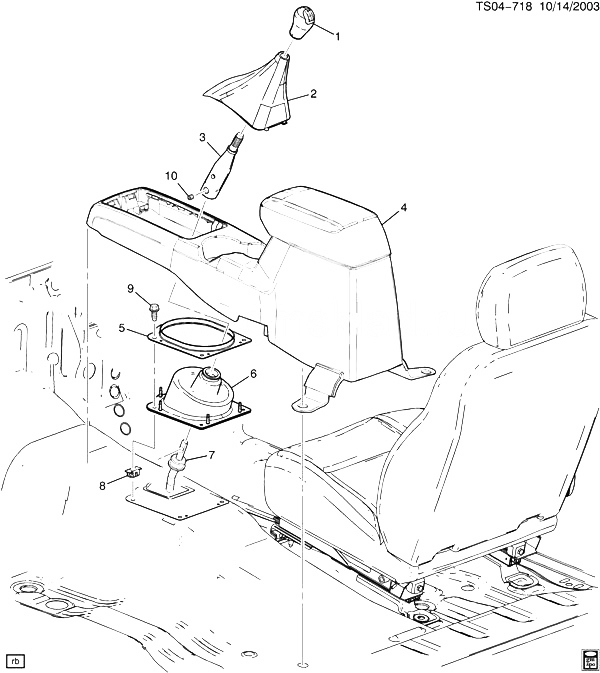

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
KNOB, M/TRNS CONT LVR (PART OF 3) |
|
2004-2012 |
|
| 002 |
|
BOOT, M/TRNS CONT SHF (PART OF 3) |
|
2004-2012 |
|
| 003 |
15112814 |
LEVER, M/TRNS CONT (INCLS 1, 2, 10) |
ST1 (MA5, D06) |
2004-2012 |
01 |
| 004 |
|
CONSOLE, F/FLR (SEE GROUP 16.000 CONSOLE/FLOOR FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2012 |
|
| 005 |
|
RETAINER, M/TRNS CONT LVR BOOT (PART OF 6) |
|
2004-2012 |
|
| 006 |
15840127 |
BOOT, M/TRNS CONT LVR (INCLS 5) (IN VEHICLE) (INCLS GROMMETS) |
ST1 (MA5) |
2004-2012 |
01 |
| 007 |
|
LEVER, M/TRNS CONT LWR (SEE GROUP 04.000 MANUAL TRANSMISSION PART 2 FOR DETAILED ILLUSTRATED VIEW) (4.006) |
|
2004-2012 |
|
| 008 |
11518531 |
NUT, PUSH-IN, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (M/TRNS CONT LVR BOOT) (10.512) |
|
2004-2012 |
04 |
| 009 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (M/TRNS CONT LVR BOOT) (9.665) |
|
2004-2012 |
04 |
| 010 |
11589237 |
SCREW, SET, 3/8-24 UNF, 1/2 LENGTH (PART OF 3) |
|
2004-2012 |
01 |
