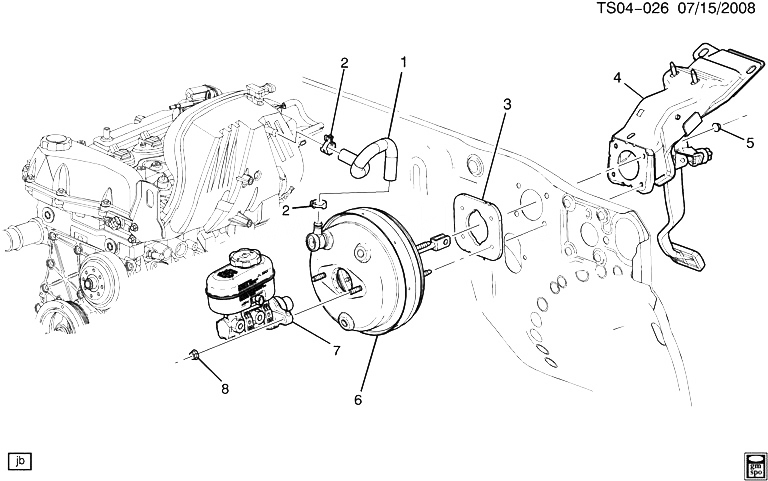

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20907344 |
HOSE, P/B BOOS VAC (INCLS 2) (ACDelco #176-1135) |
ST1 (LLR, LLV) |
2009-2012 |
01 |
| 002 |
11609970 |
CLAMP, WORM GEAR, 14.22-26.92 DIA, 13.25 THK, STAINLESS STL. (PART OF 1) |
|
2009-2012 |
02 |
| 003 |
15819684 |
GASKET, P/B BOOS (PART OF 6) |
ST1 |
2009-2012 |
01 |
| 004 |
|
PEDAL, BRK (W/BRKT) (SEE GROUP 04.000 BRAKE PEDAL MOUNTING FOR DETAILED ILLUSTRATED VIEW) |
|
2009-2012 |
|
| 005 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (BRK PED BRKT) (8.915) (ACDelco #11514596) |
|
2009-2012 |
04 |
| 006 |
20815348 |
BOOSTER, P/B (INCLS 3) (SEE GROUP 04.000 BRAKE BOOSTER FOR DETAILED ILLUSTRATED VIEW) |
ST1 |
2009-2012 |
01 |
| 007 |
25858330 |
CYLINDER, BRK MAS (SEE GROUP 04.000 BRAKE MASTER CYLINDER FOR DETAILED ILLUSTRATED VIEW) (INCLS RESERVOIR) (ACDelco #174-1207) |
ST1 |
2009-2012 |
01 |
| 008 |
11609280 |
NUT, BRK M/CYL (M8X1.25, 10.7THK) (13MM SOCKET, NYLON INSERT) (4.591) |
ST1 |
2009-2012 |
02 |
