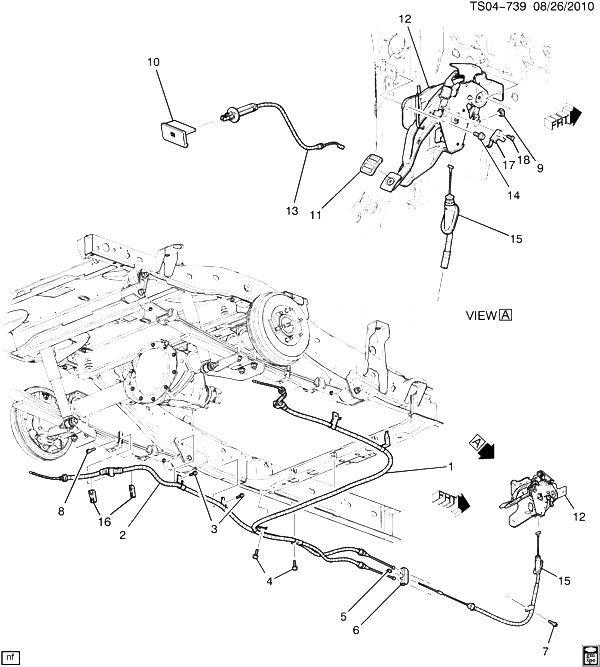

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25904010 |
CABLE, PARK BRK RR |
T1 (43-53) |
2009-2012 |
01 |
| 002 |
25904009 |
CABLE, PARK BRK RR (INCLS 16) |
T1 (43-53) |
2009-2012 |
01 |
| 003 |
11516424 |
BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (PARK BRK RR CBL) |
|
2009-2012 |
04 |
| 004 |
11516424 |
BOLT, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (PARK BRK RR CBL) |
|
2009-2012 |
02 |
| 005 |
11571172 |
NUT, PARK BRK CBL EQLZR (M6X1.0X22.35) |
ST1 |
2009-2012 |
01 |
| 006 |
15112323 |
EQUALIZER, PARK BRK CBL |
ST1 |
2009-2012 |
01 |
| 007 |
11515755 |
BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (PARK BRK CBL) (T/W 12345493 REPLCS 25534835) |
|
2009-2012 |
01 |
| 008 |
03530297 |
NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (PARK BRK RR CBL) |
|
2009-2012 |
02 |
| 009 |
11514596 |
NUT, PARK BRK (M8X1.25) (8.915) (ACDelco #11514596) |
ST1 (M30) |
2009-2012 |
01 |
| 010 |
20843963 |
HANDLE, PARK BRK REL (EBONY) |
ST1 |
2009-2012 |
01 |
| 011 |
10369647 |
PAD, PARK BRK LVR PED (PART OF 12) |
ST1 |
2009-2012 |
01 |
| 012 |
20832044 |
LEVER, PARK BRK (INCLS 11, 15, 17, 18) (PEDAL ASM) (INCLS CABLE) |
ST1 |
2009-2012 |
01 |
| 013 |
25792420 |
CABLE, PARK BRK REL (4.779) (ACDelco #25792420) |
ST1 |
2009-2012 |
01 |
| 014 |
11515755 |
BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (PARK BRK LVR) (T/W 12345493 REPLCS 25534835) |
|
2009-2012 |
02 |
| 015 |
|
CABLE, PARK BRK FRT (PART OF 12) |
|
2009-2012 |
|
| 016 |
11571029 |
CLIP, WHL SPD SEN WIRE (PART OF 2) (40.1X22X8) (HOLDS (1)15 DIA RUBBER GROMMET (1)8.5 DIA STEEL LINE) |
T1 (43-53) |
2009-2012 |
02 |
| 017 |
10369643 |
SWITCH, PARK BRK IND (PART OF 12) |
ST1 (EXC RHD) |
2009-2012 |
01 |
| 018 |
10369646 |
BOLT, PARK BRK IND SW (PART OF 12) |
ST1 (EXC RHD) |
2009-2012 |
01 |
