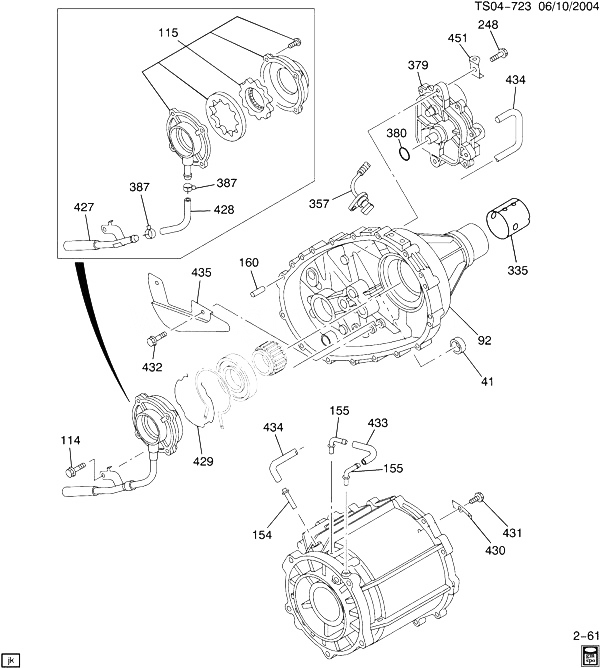

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 041 |
97238998 |
SEAL, TRFER CASE SHFT CONT MDL BRKT |
T1 (NP1) |
2004-2012 |
01 |
| 092 |
98013524 |
CASE, TRFER (RR HALF) |
T1 (NP1) |
2004-2012 |
01 |
| 114 |
11570903 |
BOLT, TRFER CASE O/PMP (M8 X 1.25 X 20) (8.900) |
T1 (NP1) |
2004-2012 |
01 |
| 115 |
98029157 |
PUMP, TRFER CASE OIL (INCLS 428) |
T1 (NP1) |
2004-2012 |
01 |
| 154 |
97358319 |
PIPE, TRFER CASE VENT (STRAIGHT) |
T1 (NP1) |
2004-2012 |
01 |
| 155 |
97358318 |
PIPE, TRFER CASE VENT (L-SHAPED) (4.104) |
T1 (NP1) |
2004-2012 |
02 |
| 160 |
97135423 |
PIN, TRFER CASE HALF LOC |
T1 (NP1) |
2004-2012 |
02 |
| 248 |
11588724 |
BOLT, HFH, M8X1.25X30.7, 26 THD, 18 OD, 8.8, GMW3359, M-PT, (TRFER CASE TWO/FOUR WHL DRV ACTR) |
|
2004-2012 |
03 |
| 335 |
97381424 |
BUSHING, TRFER CASE RR OUTPUT SHF |
T1 (NP1) |
2004-2012 |
01 |
| 357 |
12376520 |
SENSOR, VEH SPD (2-WAY MALE) (MATING CONN W/LEADS USE 88987993) (ACDelco #213-347) |
T1 (NP1) |
2004-2012 |
01 |
| 357 |
12376520 |
SENSOR, VEH SPD (2-WAY MALE) (MATING CONN W/LEADS USE 88987993) (3.682) (ACDelco #213-347) |
T1 (NP1) |
2004-2012 |
01 |
| 379 |
98158125 |
ACTUATOR, TRFER CASE TWO/FOUR WHL DRV (ACDelco #98158125) |
T1 (NP1) |
2004-2012 |
01 |
| 380 |
97318475 |
SEAL, TRFER CASE TWO/FOUR WHL DRV ACTR (O RING) (ACDelco #97318475) |
T1 (NP1) |
2004-2012 |
01 |
| 387 |
97329628 |
CLAMP, TRFER CASE O/PMP SUC HOSE (CLAMP - SPRINGBAND, 17.5MM DIA, 12MM WIDTH.) (3.162) |
T1 (NP1) |
2004-2012 |
02 |
| 427 |
97234488 |
SCREEN, TRFER CASE O/PMP |
T1 (NP1) |
2004-2012 |
01 |
| 428 |
98009116 |
HOSE, TRFER CASE O/PMP SUC (PART OF 115) (9.5ID, 16.5OD, 80) |
T1 (NP1) |
2004-2012 |
01 |
| 429 |
97240666 |
RING, TRFER CASE O/PMP RET |
T1 (NP1) |
2004-2012 |
01 |
| 430 |
97239130 |
BAFFLE, TRFER CASE VENT |
T1 (NP1) |
2004-2012 |
01 |
| 431 |
11588711 |
BOLT, HFH, M6X1X16, 10 THD, 14.2 OD, 8.8 STL, GMW3359 (TRFER CASE VENT BFL) |
|
2004-2012 |
01 |
| 432 |
11570903 |
BOLT, TRFER CASE VENT OIL DEFL (M8 X 1.25 X 20) (8.900) |
T1 (NP1) |
2004-2012 |
02 |
| 433 |
97236080 |
HOSE, TRFER CASE VENT (FRT CASE HALF) |
T1 (NP1) |
2004-2012 |
01 |
| 434 |
97236081 |
HOSE, TRFER CASE VENT (ACTUATOR TO FRT CASE HALF) |
T1 (NP1) |
2004-2012 |
01 |
| 435 |
97249300 |
DEFLECTOR, TRFER CASE VENT OIL |
T1 (NP1) |
2004-2012 |
01 |
| 451 |
98041736 |
BRACKET, OXY SEN CONN RET |
T1 (JJA, NP1) |
2008-2012 |
01 |
